VMIVME-1150

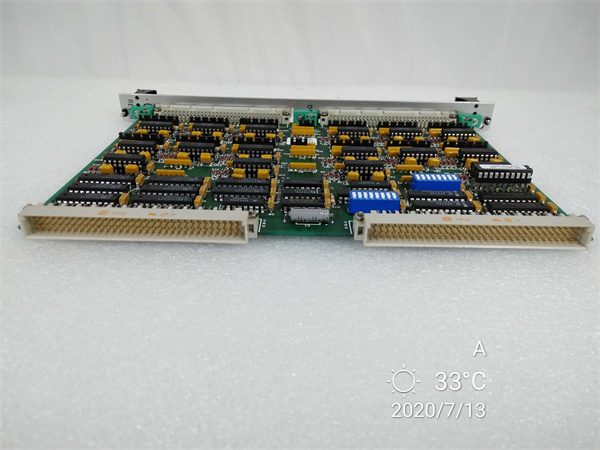

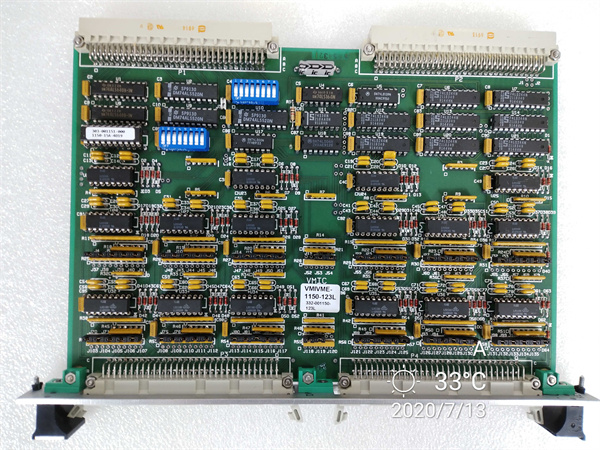

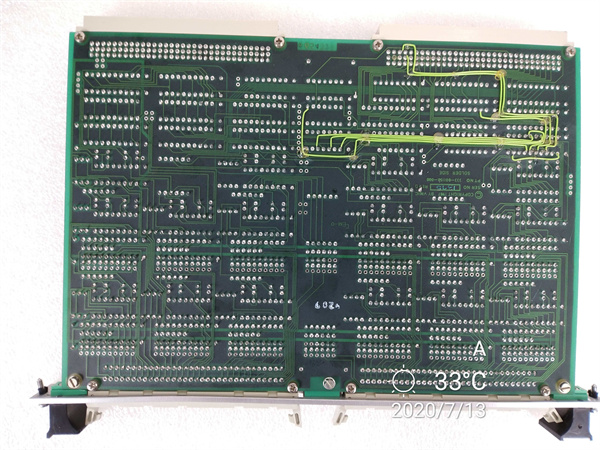

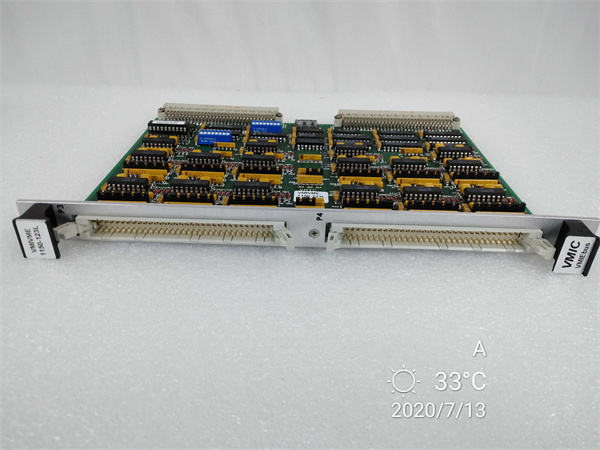

The GE VMIVME-1150 is a 64-bit optically coupled digital input board engineered specifically for the VMEbus. As part of GE’s industrial automation product portfolio, it offers a reliable solution for systems in need of high – quality digital input handling. This board’s core function is to provide a stable and accurate interface for digital input signals. It is designed to operate within VME – based platforms, which are widely used in industrial control systems, test and measurement setups, and data acquisition applications.

The VMIVME-1150 is positioned as a key component for industries that require high – isolation, flexibility, and strong noise immunity. It offers great value by ensuring the integrity of digital input data, even in electrically noisy environments. With its optimized design for the VMEbus, it can be seamlessly integrated into existing systems, enhancing the overall performance and reliability of industrial automation and control systems.

Reliable Isolation: The GE VMIVME-1150 features optical coupling for each input channel, providing high isolation. With a sustained isolation voltage of 1.000 V and a pulsed isolation voltage of 7.500 V, it can effectively resist electrical interference. This ensures that the input signals remain stable and accurate, even in harsh industrial environments.

Flexible Input Options: It supports a wide input voltage range from 5 VDC to 48 VDC, and offers both voltage sourcing and current sinking input options. Additionally, users can choose between positive true or negative true input logic. This flexibility makes it suitable for a variety of applications, adapting to different signal types and system requirements.

High – Speed Data Transfer: Capable of 8 – bit or 16 – bit data transfers with a maximum access time of 250 ns, the VMIVME-1150 enables rapid data acquisition. This high – speed performance is crucial for applications that require real – time monitoring and control, ensuring quick response to input changes.

Easy Configuration and Installation: The board’s address is set via an on – board DIP switch, and it can be installed in any available slot on the VME bus backplane except slot 1. It also comes with a jumper to support different I/O access options, and is factory – configured for short monitoring I/O access, simplifying the setup process for users.

Industrial Automation: In manufacturing plants, the GE VMIVME-1150 is used to connect sensors such as limit switches, proximity sensors, and temperature sensors to the control system. It accurately relays digital input signals from these sensors to the central controller, enabling precise control of machinery, like robotic arms in assembly lines or conveyor belts in packaging processes.

Test and Measurement: In laboratories or quality control facilities, it plays a vital role in data acquisition systems. For example, when testing electronic components, the board can receive digital signals from test equipment, providing real – time data on the performance of the components being tested. This data is then used for analysis and quality assessment.

Process Control: In industries like oil and gas, chemical, and power generation, the VMIVME-1150 is employed to monitor and control processes. It can receive digital inputs from various process sensors, such as pressure switches and flow sensors, and based on these inputs, the control system can adjust the process parameters to ensure safe and efficient operation.

GE VMIVME-7807: A 6U single – slot VME single – board computer integrating an Intel Pentium m processor. It can be used in combination with the VMIVME-1150 in more complex industrial control systems, where the former provides computing power while the latter handles digital input tasks.
GE VMIVME-2540: An intelligent counter/timer controller. It can work alongside the VMIVME-1150 in applications where counting events and handling digital inputs are both required, such as in some high – speed production lines.
GE VMIVME-3122: An industrial – grade servo controller. In an automated manufacturing setup, the VMIVME-1150 can feed digital input signals related to the position or status of mechanical parts, and the VMIVME-3122 can use this information to control the servo motor’s movement accurately.
GE VMIVME-7750: A single – slot Pentium III SBC. It can be part of a system where the VMIVME-1150 is also present, with the VMIVME-7750 handling general – purpose computing tasks and the VMIVME-1150 focusing on digital input operations.
GE IS230TVBAH2A: A high – power dual – supply driver module. In certain industrial scenarios, the VMIVME-1150 can provide digital input signals indicating the status of a system, and the GE IS230TVBAH2A can use these signals to drive high – power components based on the received input information.

Pre – installation preparation: Before installing the GE VMIVME-1150, ensure that the power to the VME system is turned off. Check the VME bus backplane for available slots, making sure to avoid slot 1. Verify that the input voltage sources in the system are within the 5 – 48 VDC range supported by the board. Familiarize yourself with the on – board DIP switch settings for addressing the board correctly according to your system requirements.

Maintenance recommendations: Regularly inspect the VMIVME-1150 for any signs of physical damage, such as cracks on the board or loose connections. Check the status of the input signals to ensure they are within the expected range. If possible, use diagnostic tools to test the data transfer capabilities of the board. Keep the board clean from dust and debris, as these can affect its performance over time.

GE stands firmly behind the quality of the GE VMIVME-1150. The product comes with a comprehensive quality assurance program. In case of any defects in materials or workmanship during the specified warranty period, GE will provide prompt repair or replacement services. Their dedicated technical support team is available to assist customers with installation guidance, troubleshooting, and any technical queries related to the board. This commitment reflects GE’s confidence in the product’s reliability and performance, giving customers peace of mind when integrating the VMIVME-1150 into their critical industrial systems.
