Description
Product Overview

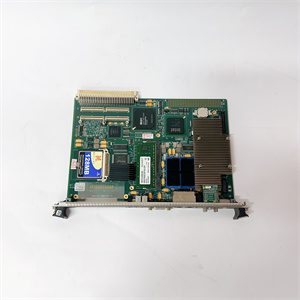

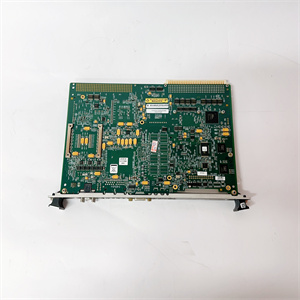

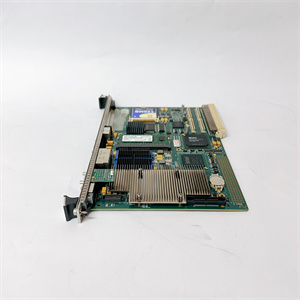

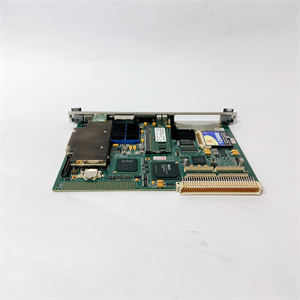

The GE IS415UCVHH1A is a VME controller board that plays a pivotal role in industrial control scenarios, especially within GE’s Mark VIe distributed control systems. As a core component, it serves as a central processing and control unit, managing and coordinating the operations of various connected devices.
This board is designed to handle complex control tasks, with features similar to a personal computer. It comes equipped with essential elements like RAM slots, a 128 – MB compact flash disk for data storage, heatsinks to ensure stable operation by dissipating heat, and a CMOS battery for maintaining system settings. The GE IS415UCVHH1A is engineered to support simplex, dual – redundancy, and triple – redundancy systems, providing flexibility for different industrial applications. Its multiple communication interfaces, including 2 USB ports, 2 Ethernet ports, 2 COM ports (with corresponding LEDs), a mouse/keyboard connector, and a VGA display port, enable seamless connectivity with external devices and systems. This makes it an ideal choice for applications where reliable data transfer and control are crucial in industrial automation setups.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS415UCVHH1A |
| Manufacturer | GE |
| Product Type | VME Controller Board |
| Series | Mark VIe |
| Power Supply | 200 – 250 VAC |
| Operating Temperature | 0 °C – 70 °C |
| Operating System | QNX |
| Microprocessor | Intel Ultra – Low Voltage Celeron 650 MHz |
| Memory | 128 MB SDRAM |
| Number of USB Ports | 2 |
| Number of Ethernet Ports | 2 |
| Number of COM Ports | 2 |
| Weight | 2.00 lbs |
| Size | 3.4 in x 6.37 in |
IS415UCVHH1A
Main Features and Advantages
Redundancy Options
The GE IS415UCVHH1A offers simplex, dual – redundancy, and triple – redundancy system support. This flexibility allows users to configure the system based on their specific application needs. For instance, in critical industrial processes where uninterrupted operation is essential, the triple – redundancy option can be chosen. It ensures that even if one or two components fail, the system can continue to function without significant disruptions, minimizing downtime and enhancing overall system reliability.
Rich Communication Interfaces
With a variety of communication interfaces, the board can easily interface with numerous external devices. The USB ports can be used for quick data transfer or connecting peripherals such as flash drives for software updates. The Ethernet ports enable high – speed network communication, allowing the IS415UCVHH1A to exchange data with other control systems, servers, or cloud – based platforms in real – time. The COM ports are useful for connecting legacy devices or sensors that use serial communication protocols, making it suitable for retrofitting into existing industrial setups.
High – Quality Data Management
Using the ControlST software suite, the GE IS415UCVHH1A provides a single, high – quality, time – coherent data source. This is extremely valuable for industrial operations as it enables real – time analysis and adjustment of processes. Operators can rely on accurate and timely data to make informed decisions, optimize production, and improve overall efficiency. Whether it’s monitoring the performance of manufacturing equipment or controlling power generation processes, the reliable data provided by this board is a key advantage.
IS415UCVHH1A
Application Field
Power Generation
In power plants, the GE IS415UCVHH1A is widely used for controlling gas, steam, and wind turbines. It monitors various parameters such as turbine speed, temperature, and vibration. By analyzing this data in real – time, it can adjust the operation of the turbines to ensure optimal performance and efficiency. For example, in a gas turbine power plant, the board can control the fuel supply based on the turbine’s load and temperature, reducing fuel consumption and emissions.
Manufacturing
Manufacturing industries benefit from the IS415UCVHH1A in multiple ways. It can be used to control robotic arms in automated assembly lines, ensuring precise movement and operation. The board can also manage conveyor systems, coordinating the flow of materials and products. By integrating with sensors and actuators, it can detect faults in equipment and initiate corrective actions, minimizing production disruptions and improving product quality.
Process Industries
Industries such as chemical and petrochemical rely on the GE IS415UCVHH1A for process control. It can regulate the flow of chemicals in reactors, control the temperature and pressure in storage tanks, and monitor the status of valves and pumps. In a chemical plant, the board can ensure that the chemical reactions occur under the right conditions, preventing accidents and ensuring the production of high – quality products.
Related Products
- GE IS415UCVH1: The original VME control board module for the Mark VI turbine control system series, without the A – rated functional product revision of IS415UCVHH1A. It serves as a base model, and IS415UCVHH1A has additional features and improvements.
- GE IC695CRU320: Used in the RX3i hot standby CPU redundancy system related to IS415UCVHH1A. It works in tandem with the IS415UCVHH1A to provide redundancy in the CPU system, enhancing overall system reliability.
- GE RMX module: Operates as a dedicated link between IS415UCVHH1A CPUs in the RX3i hot standby CPU redundancy system. It enables seamless data transfer between the CPUs, ensuring smooth operation of the redundant system.
- GE VCMI communication board: Works with IS415UCVHH1A, using the VME bus to send and receive external data to and from the control system database in the controller. It expands the communication capabilities of the IS415UCVHH1A.
- GE Fanuc integrator’s rack: Available in different sizes to support local and remote I/O, it is one of the racks that can be used with IS415UCVHH1A. It provides a physical housing and connection points for the board and other related components.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IS415UCVHH1A, carefully read the installation manual. Ensure that the power supply voltage is within the specified range of 200 – 250 VAC. Check the VME rack where it will be mounted for any signs of damage or improper wiring. Prepare the necessary tools such as screwdrivers and anti – static wristbands to avoid electrostatic discharge during installation. Make sure the operating environment temperature is between 0 °C and 70 °C, as per the board’s requirements.
Maintenance recommendations: Regularly inspect the IS415UCVHH1A for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the system’s performance, including data transfer rates and processing times. Clean the board periodically to remove dust and debris, which can affect its operation. If any issues arise, refer to the troubleshooting guide in the user manual. Periodically check the CMOS battery and replace it as needed to maintain system settings.
