The GE IS220PPRFH1B is a high – performance PROFIBUS Master Gateway I/O module, designed with precision for the Mark VI turbine control system series by General Electric. This module serves as a crucial interface, facilitating seamless communication between the GE Speedtronic Mark VIe turbine control system and the broader PROFIBUS network. It acts as a bridge, allowing for the exchange of data and signals between the turbine and various field devices such as sensors, actuators, and other controllers. In the context of industrial automation, the IS220PPRFH1B plays a pivotal role in ensuring the efficient operation of gas, steam, and wind turbine automated drive assemblies. It is an integral part of the Mark VI series, which is renowned for incorporating the patented Speedtronic control system technology, enhancing its capabilities in managing and controlling these turbine systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220PPRFH1B |
| Manufacturer | GE |
| Product Type | PROFIBUS Master Gateway I/O Module |
| Ambient Temperature Rating | – 20 to + 55 °C (- 4 to + 131 °F) |
| Input Current Max | 18 A DC |
| Input Voltage Nominal | 28 V DC |
| ATEX Zone Rating | Zone 2, Group IIC |
| UL Certification | UL E207685, UL Demko 12 ATEX 1114875X |
| PCB Coating Style | Conformal Coating |
| Revision Quantity | 1 Revision |
| PROFIBUS Master Type | DPV0 Class 1 Master |
| PROFIBUS Connection | DE – 9 D – sub RS – 485 interface connector |
| Number of Slaves | Up to 125 slaves, each handling 244 bytes of inputs and outputs |
| I/O Throughput | Half boolean and half analog, 500 inputs and 500 outputs, 40 ms frame rate (requirement) |

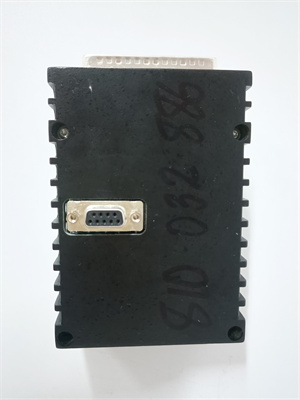

IS220PPRFH1B
Main Features and Advantages
Robust Communication Capabilities
The GE IS220PPRFH1B is equipped with a PROFIBUS RS – 485 interface provided by the COM – C module. Functioning as a PROFIBUS DP master, it can support up to 125 slaves, each capable of handling 244 bytes of inputs and outputs. With transmission rates ranging from 9.6 kbaud to 12 M baud, it enables high – speed and reliable data transfer. This makes it suitable for complex industrial setups where a large number of field devices need to be connected and controlled.
Redundancy Options
It offers multiple redundancy options. There’s the option of a single I/O Ethernet connection for a single I/O pack (no redundancy), a single I/O pack with two Ethernet connections for the I/Os, and hot – backup Ethernet connections with two ports. In a hot – backup system, two IS220PPRFH1B units are used, one active and communicating with slave devices via PROFIBUS, while the other remains passive in standby mode, ready to take over immediately in case of an active master failure. This redundancy significantly enhances the system’s reliability and uptime.
Compatibility and Ease of Installation

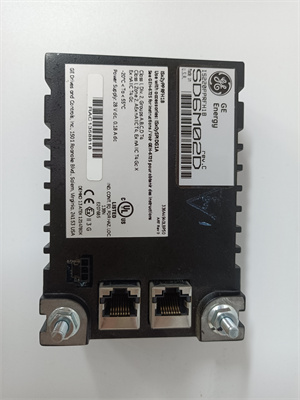

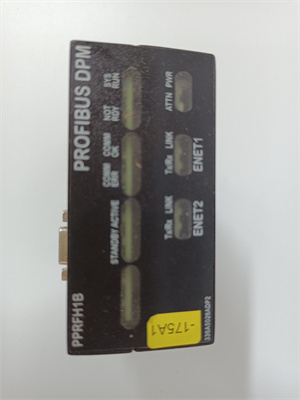

The IS220PPRFH1B is mounted on the PROFIBUS Master Gateway Terminal Board (SPI DG 1A), which also provides an electronic ID. The interface to the module is straightforward, with indicator LEDs on the front face of the module providing visual diagnostics. This makes it easy for maintenance personnel to quickly identify any issues. Additionally, the module’s design allows for easy integration into existing systems, reducing installation time and costs.
Wide Operating Temperature Range
With an ambient temperature rating of – 20 to + 55 °C (- 4 to + 131 °F), the GE IS220PPRFH1B can operate reliably in a variety of environmental conditions. Whether it’s in a cold industrial freezer or a hot power plant environment, this module can maintain its performance, ensuring continuous operation of the turbine control system.
Safety Certifications
The module holds ATEX Zone 2, Group IIC certification (UL Demko 12 ATEX 1114875X) and UL E207685 non – hazardous certification. These certifications ensure that the IS220PPRFH1B can be used safely in potentially explosive atmospheres as well as non – hazardous locations, expanding its application scope in different industrial settings.

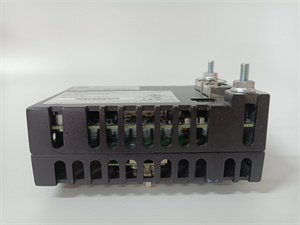

IS220PPRFH1B
Application Field
Power Generation
In power plants, the GE IS220PPRFH1B is extensively used in gas and steam turbine control systems. It plays a vital role in monitoring and controlling various parameters such as fuel flow, turbine speed, and generator output. By accurately communicating with sensors and actuators in the turbine system, it helps optimize power generation efficiency. For example, it can adjust the fuel supply based on the load demand, ensuring the turbine operates at peak performance while minimizing fuel consumption and emissions.
Oil and Gas Industry
In oil refineries and gas processing plants, the module is used to control and monitor the operation of turbines that drive compressors and pumps. It enables real – time data acquisition from sensors measuring pressure, temperature, and flow rates. Based on this data, the IS220PPRFH1B can trigger actions to maintain the proper functioning of these critical equipment, preventing breakdowns and ensuring smooth production processes.
Manufacturing
In manufacturing facilities, especially those with large – scale automated production lines, the GE IS220PPRFH1B can be used to control the speed and operation of motors and conveyors. By connecting to PROFIBUS – compatible sensors and actuators, it can ensure the seamless movement of materials and products along the production line. For instance, it can adjust the speed of a conveyor belt based on the presence or absence of products detected by sensors, improving production efficiency and reducing waste.
Renewable Energy
In wind turbine farms, the IS220PPRFH1B helps in the control and monitoring of wind turbine operations. It can communicate with sensors that measure wind speed, direction, and turbine blade angles. Based on this data, it can adjust the pitch of the blades to optimize energy capture and protect the turbine from excessive stress during high – wind conditions, contributing to the efficient and reliable operation of wind energy generation systems.
Related Products
- GE IS200SPIDG1A: This is an accessory ID terminal board that is often paired with the GE IS220PPRFH1B. It provides an electronic ID and allows the PPRF unit to be attached and mounted into an ordinary or non – hazardous location, enhancing the installation and functionality of the IS220PPRFH1B.
- Other Mark VI Series Modules: Modules within the Mark VI series, such as those related to analog input/output or digital control, can work in tandem with the IS220PPRFH1B. For example, they may handle different types of signals that are then integrated and processed together with the data managed by the IS220PPRFH1B to achieve comprehensive turbine control.
- PROFIBUS Slave Devices: These are the field devices that communicate with the GE IS220PPRFH1B which acts as a master. Examples include sensors that measure temperature, pressure, or position, and actuators that control valves or motors. The IS220PPRFH1B enables seamless data exchange between these slave devices and the overall turbine control system.
- GE Speedtronic Controllers: These controllers are integral to the Mark VI turbine control system. The IS220PPRFH1B interfaces with them, facilitating the transfer of data related to turbine operation, which is then used by the controllers to make decisions for optimizing turbine performance.
- Power Supply Modules: Specific power supply modules designed to provide the required 28 V DC nominal voltage (with an input current max of 18 A DC) to the GE IS220PPRFH1B are essential. They ensure a stable power source, which is crucial for the reliable operation of the module in various industrial applications.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IS220PPRFH1B, ensure that the power supply to the system is turned off. Thoroughly inspect the module for any visible signs of damage during transit. Familiarize yourself with the installation manual, which provides detailed instructions on mounting the module on the PROFIBUS Master Gateway Terminal Board (SPI DG 1A). Check the compatibility of the IS220PPRFH1B with other components in the system, especially the power supply and the PROFIBUS network. Verify that the ambient temperature of the installation location falls within the specified range of – 20 to + 55 °C.
Maintenance recommendations: Regularly monitor the IS220PPRFH1B for any abnormal behavior. Check the indicator LEDs on the module’s front face to quickly identify any issues. Periodically clean the module to remove dust and debris, as these can affect its performance over time. Inspect the connections of all cables and wires to ensure they are secure. If any problems are detected, such as communication errors with PROFIBUS slave devices or abnormal temperature readings, refer to the troubleshooting section of the product manual. Consider performing regular firmware updates to keep the module operating at its optimal level.
