The GE IS215UCVHM06A is a high – performance VME processor control card developed by General Electric. As an integral part of the Mark VI 控制系统，this single – slot, specialized board assumes a pivotal role in the control and communication of larger systems. Equipped with an Intel 超低电压 CeleronTM processor running at 1067 MHz (1.06 GHz), along with 128 MB of flash memory and 1 GB of synchronous dynamic random – access memory (SDRAM), it offers robust computing capabilities.
One of the remarkable features of the IS215UCVHM06A is its dual – Ethernet connectivity. It comes with two 10BaseT/100BaseTX Ethernet ports, each with an RJ – 45 connector. The first port is crucial for establishing a connection with the Universal Device Host (UDH), which is essential for configuration and point – to – point communication. It also enables seamless communication between peer devices within the network. The second Ethernet port operates on a different IP logical subnet, separating communication boundaries and effectively managing network traffic. This port can be used with Modbus, a widely – used communication protocol in industrial automation, and for the dedicated Ethernet Global Data (EGD) network, enhancing data transfer security and efficiency within specific system components.

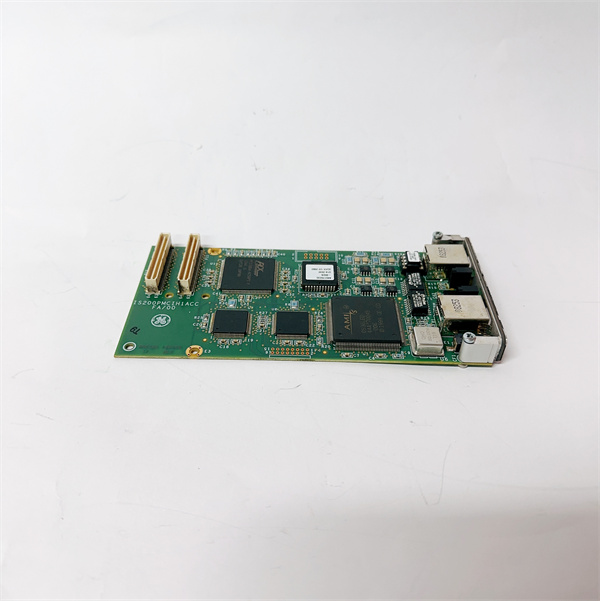

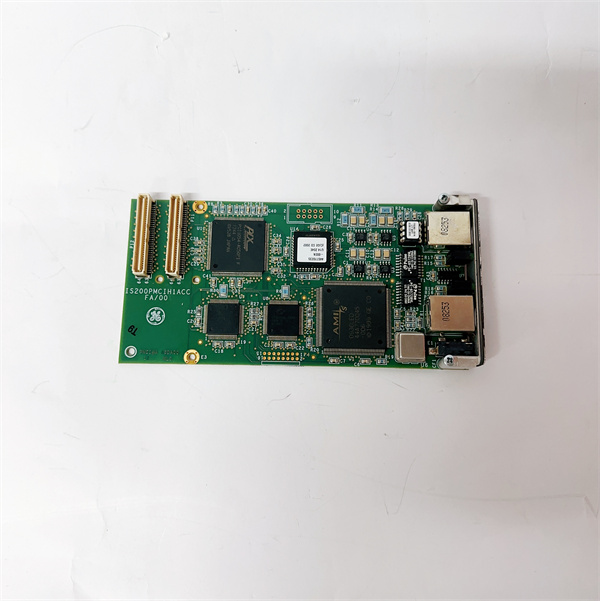

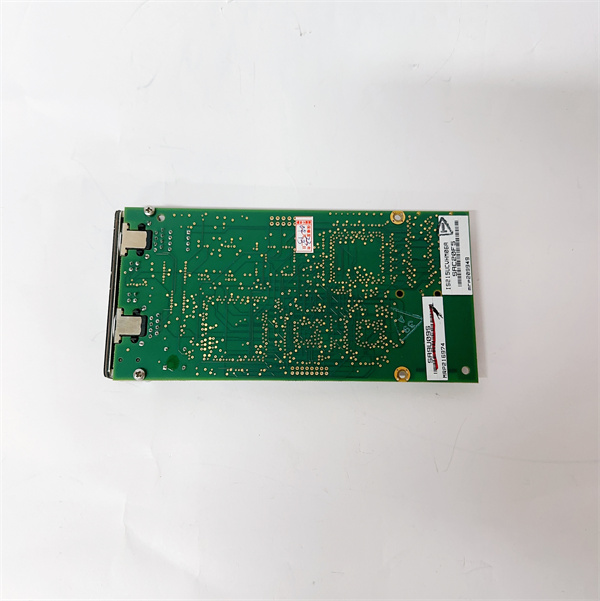

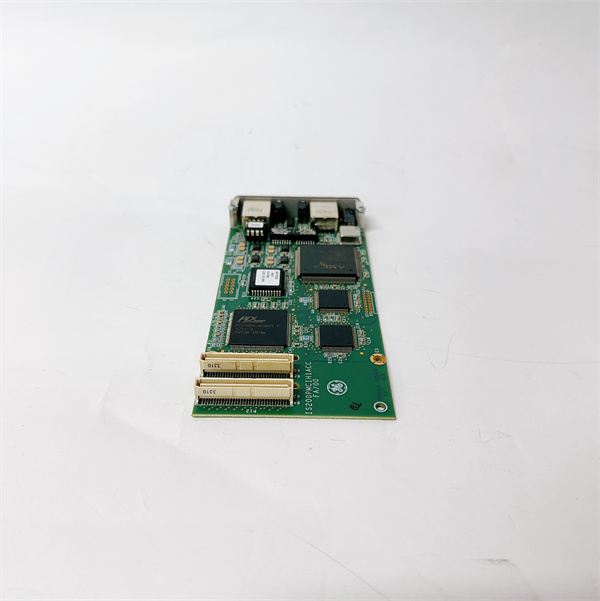

On the other hand, the GE IS200PMCIH1ACC is a turbine – specific I/O module. Its design is centered around providing a direct interface for particular turbine field devices. By doing so, it significantly reduces or even eliminates the need for a large amount of instrumentation previously required to connect field devices. This not only improves operational reliability but also cuts down on long – term maintenance. It commonly collaborates with the TREAH_A terminal board and is deployed in aeroderivative turbine emergency trip applications.
Technical Specifications
| Parameter Name | Parameter Value for IS215UCVHM06A | Parameter Value for IS200PMCIH1ACC |
|---|---|---|
| Product Model | IS215UCVHM06A | IS200PMCIH1ACC |
| Manufacturer | General Electric | General Electric |
| Product Type | VME Processor Control Card | Turbine – specific I/O Module |
| Processor | Intel 超低电压 CeleronTM @ 1067 MHz | High – speed processor (built – in) |
| Memory | 128 MB flash, 1 GB SDRAM | – |
| Communication Interface | 2 x 10BaseT/100BaseTX Ethernet ports (RJ – 45), 2 COM ports with LED | 2 x 10/100 Ethernet ports |
| Power Supply | – | – |
| Operating Temperature Range | – | – |
| Dimensions | – | – |
| Weight | – | – |
| Input/Output Channels | – | Accepts 3 speed signals |
| Special Features | Dual – Ethernet connectivity, flexible configuration of controller and I/O redundancy | Hardware – implemented overspeed, monitors selected trip board status via feedback signals, supports TMR and simplex backup protection |
| Max Cable Length for Wiring | – | 1000 feet of 18 AWG wiring for voltage sensing |
IS215UCVHM06A IS200PMCIH1ACC
Main Features and Advantages
GE IS215UCVHM06A
High – Performance Processing
The IS215UCVHM06A‘s 1067 MHz Intel 超低电压 CeleronTM processor, combined with its ample memory, allows for rapid and efficient data processing. This ensures that it can handle complex control algorithms and communication tasks within the Mark VI system without delay, enabling smooth operation of the overall industrial process.
Dual – Ethernet Connectivity
The two Ethernet ports provide enhanced networking capabilities. The first port’s connection to the UDH simplifies configuration and peer – to – peer communication, while the second port’s operation on a separate subnet, with support for Modbus and EGD, offers flexibility in network setup. It can be used to connect to different types of devices and systems, improving the overall connectivity and data – handling capabilities of the industrial setup.
Adaptable Configuration
Operators have the flexibility to mix and match controller and input/output redundancy configurations according to the specific requirements of their applications. This adaptability not only optimizes the system for different scenarios but also helps in cost – effective implementation.
GE IS200PMCIH1ACC
Simplified Field Device Connection
By directly interfacing with turbine field devices, the IS200PMCIH1ACC reduces the complexity of the instrumentation setup. This simplification leads to improved reliability as there are fewer components in the connection chain, and it also decreases long – term maintenance requirements, saving both time and resources.
Advanced Monitoring and Protection
With the ability to accept three speed signals and having hardware – implemented overspeed protection, it can closely monitor the turbine’s operational status. Additionally, it monitors the selected trip board’s status through a comprehensive set of feedback signals and supports TMR and simplex backup protection, ensuring the safety and stability of the turbine operation.
IS215UCVHM06A IS200PMCIH1ACC
Application Field
GE IS215UCVHM06A
Power Generation
In power plants, especially those with steam, gas, or wind turbines, the IS215UCVHM06A is used within the Mark VI control system. It manages the control and communication aspects, ensuring that the turbines operate at optimal efficiency. For example, it can receive data from various sensors on the turbine, process it, and send control signals to adjust the turbine’s speed, load, and other parameters.
Industrial Automation
In manufacturing plants and other industrial settings, the card can be part of a larger control system. It can communicate with different types of industrial equipment, such as motors, pumps, and conveyors, through its Ethernet ports. It enables real – time monitoring and control, enhancing the overall productivity and reliability of the industrial processes.
GE IS200PMCIH1ACC
Aeroderivative Turbine Applications
The IS200PMCIH1ACC is specifically designed for aeroderivative turbines. In applications such as emergency trip systems, it plays a crucial role. When abnormal conditions are detected, such as overspeed or other critical faults, it can quickly send signals to trip the turbine, protecting it from potential damage. It also monitors the turbine’s speed and other parameters continuously to ensure safe and stable operation.
Power Generation Turbine Control
In power generation facilities, it interfaces with turbine field devices to provide accurate data for control systems. It helps in maintaining the proper operation of the turbine by sending and receiving signals related to the turbine’s performance, such as speed, temperature, and pressure, ensuring efficient power generation.
Related Products
- GE IS215UCVEM06A: A controller board by GE, similar to the IS215UCVHM06A in that it is used in industrial control applications. However, it may have different processor speeds, memory configurations, or communication interfaces, making it suitable for different industrial scenarios.
- GE IS415UCVHH1A: Another component within the GE product range, likely related to the Mark VI system. It may have complementary functions to the IS215UCVHM06A, such as providing additional input/output capabilities or enhanced communication features for specific industrial applications.
- GE IS200PMCIH1AAA6BA00: This is also a part of GE’s offerings in the industrial automation space. It may have different features compared to the IS200PMCIH1ACC, such as different input/output channel configurations or communication protocols supported, catering to a different set of industrial requirements.
- GE TREAH_A Terminal Board: Works in tandem with the IS200PMCIH1ACC. It provides a connection point for various field devices, facilitating the transfer of signals between the field and the I/O module, enhancing the overall functionality of the turbine control system.
- GE Mark VI Control System Components: There are multiple components within the Mark VI system, such as other control cards and modules. These components work together with the IS215UCVHM06A and IS200PMCIH1ACC to provide a comprehensive control solution for industrial applications, each having its specific function in data processing, communication, and control.
Installation and Maintenance
GE IS215UCVHM06A
Pre – installation preparation: Before installing the GE IS215UCVHM06A, ensure that the VME slot in the target system is clean and free from any debris. Check the power supply of the system to ensure it can provide stable power to the card. Verify that the network infrastructure is properly configured to support the dual – Ethernet connectivity of the card. Make sure that the software and drivers required for the card’s operation are installed and updated on the host system.
Maintenance recommendations: Regularly monitor the status of the two Ethernet ports and the COM ports using the status LEDs. Check for any signs of overheating, such as abnormal temperatures around the card. Periodically update the firmware of the IS215UCVHM06A to ensure it has the latest features and security patches. In case of any communication issues, check the network cables, router settings, and the card’s configuration.
GE IS200PMCIH1ACC
Pre – installation preparation: When installing the GE IS200PMCIH1ACC, ensure that the connection to the TREAH_A terminal board is properly set up. Check the wiring for voltage sensing to ensure it meets the 1000 – foot limit for 18 AWG wiring. Verify that the power supply to the module is stable and within the specified range. Make sure that the turbine field devices are properly calibrated and ready to interface with the module.
Maintenance recommendations: Regularly inspect the front – panel LEDs to monitor the module’s status, such as power, attention, and communication. Check for any loose connections in the wiring. Periodically test the overspeed protection feature to ensure its proper functionality. In case of any issues with the turbine’s speed monitoring or trip functions, check the module’s configuration and the integrity of the sensors connected to it.
Product Guarantee
General Electric offers a comprehensive product guarantee for both the GE IS215UCVHM06A and GE IS200PMCIH1ACC. The products undergo rigorous quality control during manufacturing to ensure they meet the highest industry standards. GE provides a standard warranty period, during which any defects in materials or workmanship will be rectified free of charge. Their technical support team is available around the clock to assist customers with installation, configuration, and any technical issues that may arise during the product’s lifespan. Whether it’s a query about the Ethernet connectivity of the IS215UCVHM06A or the overspeed protection function of the IS200PMCIH1ACC, GE’s experts are committed to ensuring that these products operate smoothly, providing customers with peace of mind and confidence in their investment in industrial control solutions.
