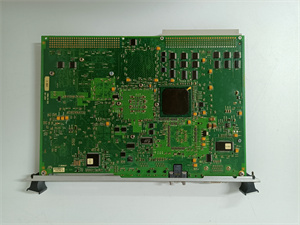

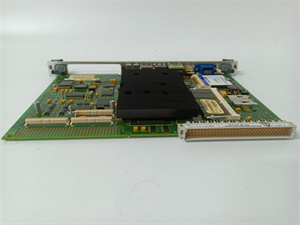

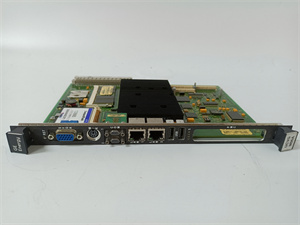

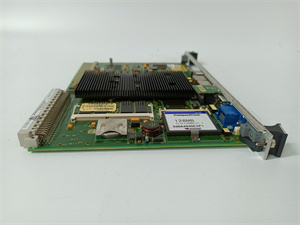

The GE IS215UCVGM06A is a pivotal UCV controller board designed for GE’s Mark VI turbine control system series. As a single – slot single – board computer, the IS215UCVGM06A holds a crucial position in the Mark VI system, which is a gas/steam turbine management platform under GE’s long – running Speedtronic line initiated in the 1960s.
Its core function is to execute the turbine application code. It acts as the brain that processes complex control algorithms, making real – time decisions. By communicating with I/O boards via the VME bus, it efficiently receives data from various sensors in the turbine system, such as temperature, pressure, and speed sensors. Then, it sends out control signals to actuators, ensuring the stable and efficient operation of the turbine. In the automation system, the GE IS215UCVGM06A is the linchpin that enables seamless coordination between different components, enhancing the overall performance and reliability of the industrial control process.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS215UCVGM06A |
| Manufacturer | GE |
| Product Type | UCV Controller Board |
| Processor | Intel Ultra – Low Voltage Celeron 650 MHz |
| Memory | 128 MB SDRAM, 128 MB Flash Memory |
| Communication Interface | Ethernet/LAN ports, USB ports, VME bus |
| Operating System | QNX (Real – Time, Multi – Tasking OS) |
| Operating Temperature | – 40°C to 85°C |
| Humidity Range | 0% – 95% non – condensing |
| Dimensions | 170 mm x 120 mm x 35 mm |
| Weight | 0.5 kg |
IS215UCVGM06A IS215UCVGH1A VMIVME-7666-111000
Main Features and Advantages
High – Performance Processing
The GE IS215UCVGM06A is equipped with an Intel Ultra – Low Voltage Celeron 650 MHz processor, providing sufficient computing power for running intricate turbine control applications. Coupled with 128 MB of SDRAM and 128 MB of flash memory, it can quickly access and store data, ensuring smooth operation of control algorithms even in high – load scenarios.
Robust Connectivity
Featuring Ethernet/LAN ports, USB ports, and communication via the VME bus, the IS215UCVGM06A enables seamless integration with other components in the industrial control network. The Ethernet ports facilitate high – speed data transfer for remote monitoring and control, while the USB ports are convenient for local configuration and data backup. The VME bus connection ensures reliable and fast communication with I/O boards, allowing for real – time data exchange.
Reliable Operation in Harsh Environments
With an operating temperature range from – 40°C to 85°C and a humidity tolerance of 0% – 95% non – condensing, the GE IS215UCVGM06A can withstand the harshest industrial environments. Whether in the extreme cold of a northern power plant or the hot and humid conditions of a tropical manufacturing facility, it maintains stable performance, reducing the risk of system failures due to environmental factors.
IS215UCVGM06A IS215UCVGH1A VMIVME-7666-111000
Application Field
Power Generation
In power plants, the GE IS215UCVGM06A is extensively used in gas and steam turbine control systems. It precisely regulates turbine operations, optimizing power generation efficiency. For example, it adjusts the fuel supply and steam flow based on real – time load demands, ensuring a stable power output to meet the grid’s requirements. This not only improves the power plant’s productivity but also enhances grid stability.
Manufacturing Industry
In manufacturing facilities, especially those with large – scale production lines, the IS215UCVGM06A can control and monitor various industrial processes. It can be used to manage the operation of robotic arms, conveyor belts, and other automated machinery. By accurately controlling the movement and operation of these devices, it helps to improve production accuracy, reduce errors, and increase overall production efficiency.
Oil and Gas Industry
In oil refineries and gas processing plants, the GE IS215UCVGM06A plays a critical role in controlling and monitoring the operation of turbines used in compression and power – generation processes. It ensures the safe and efficient operation of these turbines, which are essential for maintaining the continuous flow of oil and gas through the processing systems.
Related Products
- GE IS215UCVGH1A: Another UCV controller in the Mark VI series. It has similar functionality to the IS215UCVGM06A but may have differences in certain features, such as slightly different connector arrangements or minor performance variations. It can be used as an alternative or in complementary setups within the Mark VI system.
- GE IS215UCVEM06A: A voltage input module in the GE product range. It is designed to work with GE Versamax series PLCs and is mainly used for high – precision voltage measurement and analog signal conversion. It can be used in conjunction with the IS215UCVGM06A in applications where analog input signals need to be processed in the context of a larger industrial control system.
- GE DS200EXPSG1A: A power board by GE. It provides power to various components in the industrial control setup. While the IS215UCVGM06A focuses on control and processing functions, the DS200EXPSG1A ensures a stable power supply, which is crucial for the proper operation of the IS215UCVGM06A and other connected devices.
- VMIVME – 7666 – 111000: Although specific details are limited, it is likely another industrial control component. It may be used in the same industrial network as the IS215UCVGM06A, perhaps for functions like digital signal output or as a supplementary control module, collaborating with the IS215UCVGM06A to achieve more comprehensive control.
- GE IC660BBS103: A turbine control module. It can work in parallel with the IS215UCVGM06A in turbine control systems. It may handle different aspects of turbine control, such as specific sensor input processing or actuator control, complementing the overall control functionality provided by the IS215UCVGM06A.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IS215UCVGM06A, ensure that the VME rack where it will be mounted is clean and free of dust and debris. Check the power supply to confirm it provides a stable 24 VDC voltage as required. Verify that all communication cables, especially those for Ethernet and VME bus connections, are in good condition and properly terminated. Also, make sure the installation environment meets the temperature and humidity requirements specified for the module.
Maintenance recommendations: Regularly inspect the GE IS215UCVGM06A for any signs of physical damage, such as cracks on the board or loose connectors. Monitor its operating temperature to ensure it remains within the specified range. Periodically check the data communication status through the Ethernet and VME bus interfaces. If any issues arise, refer to the product manual for troubleshooting steps. Additionally, keep the module’s firmware up – to – date to benefit from the latest performance improvements and bug fixes.
Product Guarantee
GE stands firmly behind the quality of the GE IS215UCVGM06A. The product undergoes rigorous quality control procedures during manufacturing to ensure it meets the highest industry standards. GE offers a comprehensive product guarantee, typically including a one – year warranty against defects in materials and workmanship. In the event of a failure within the warranty period, GE will provide prompt repair or replacement services. Their team of technical experts is available to offer support for installation, configuration, and troubleshooting. This commitment reflects GE’s confidence in the IS215UCVGM06A‘s reliability and performance, giving customers peace of mind when integrating it into their industrial control systems.
