Description
Detailed parameter table
**
|
Parameter name
|
Parameter value
|
|
Product model
|
SPS5785 51198651-100
|
|
Manufacturer
|
Honeywell
|
|
Product category
|
Power supply module
|
|
Input voltage range
|
85 – 264 VAC
|
|
Output voltage
|
24 VDC
|
|
Output current
|
Up to 2.5A
|
|
Efficiency
|
≥90%
|
|
Dimensions (L×W×H)
|
10cm×5cm×2cm
|
|
Weight
|
Approximately 100g
|
|
Operating temperature range
|
-40°C – 85°C
|
|
Storage temperature range
|
-40°C – 85°C
|
|
Protection features
|
Over – voltage protection, under – voltage protection, short – circuit protection
|
|
Communication protocol
|
Optional Modbus RTU
|

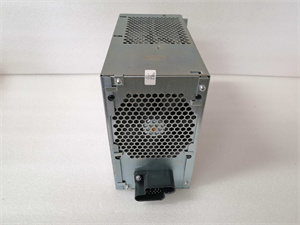

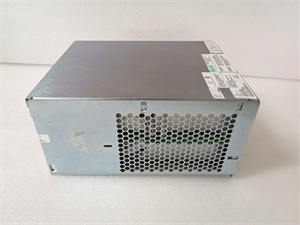

Honeywell SPS5785 51198651-100
Product introduction
The Honeywell SPS5785 51198651-100 is a high – performance power supply module that has been engineered to meet the stringent demands of modern industrial automation systems. As a key component of Honeywell’s extensive industrial control product portfolio, this power supply module is designed to provide stable and reliable power to a wide range of industrial devices.
The SPS5785 51198651-100 plays a crucial role in ensuring the smooth operation of industrial equipment. It can convert the input AC voltage within the range of 85 – 264 VAC into a stable 24 VDC output, which is widely used to power sensors, actuators, programmable logic controllers (PLCs), and human – machine interfaces (HMIs) in industrial setups. With its advanced design and manufacturing technology, the Honeywell SPS5785 51198651-100 offers high – efficiency power conversion, minimizing energy loss and reducing operating costs. Its compact size and lightweight design make it easy to install in various industrial environments, while its robust construction and wide operating temperature range ensure reliable performance even in harsh conditions.
Core advantages and technical highlights
Stable power output
The Honeywell SPS5785 51198651-100 is renowned for its stable power output. With a precisely regulated 24 VDC output and the ability to deliver up to 2.5A, it can support a variety of industrial loads without voltage fluctuations. In industrial automation lines where even minor power instabilities can cause equipment malfunctions, this module provides a consistent power supply, ensuring the continuous and accurate operation of connected devices. For example, in a high – speed packaging machine, the stable power from the SPS5785 51198651-100 keeps the servo motors and sensors running smoothly, preventing production delays and errors.
Comprehensive protection features
This power supply module is equipped with comprehensive protection features. The over – voltage protection safeguards connected equipment from damage caused by sudden surges in the input voltage, while the under – voltage protection ensures that the system shuts down gracefully when the input voltage drops below a safe level. The short – circuit protection immediately cuts off the power supply in case of a short – circuit, preventing potential fires and extensive damage to the industrial system. In a chemical plant, where electrical safety is of utmost importance, these protection features of the Honeywell SPS5785 51198651-100 provide an extra layer of security, protecting both the equipment and the personnel.
High efficiency and energy – saving
The SPS5785 51198651-100 boasts an efficiency of ≥90%, which significantly reduces energy consumption. This high – efficiency power conversion not only helps industries meet their energy – saving goals but also reduces heat generation, extending the lifespan of the module itself. In large – scale manufacturing facilities with numerous power – consuming devices, the energy – saving benefits of the Honeywell SPS5785 51198651-100 can lead to substantial cost savings over time, while also contributing to a more sustainable and environmentally friendly operation.

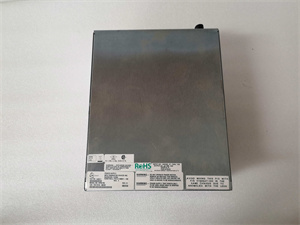

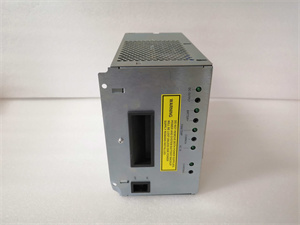

Honeywell SPS5785 51198651-100
Typical application scenarios
In the automotive manufacturing industry, the Honeywell SPS5785 51198651-100 is used to power the automated assembly lines. It supplies stable power to robotic arms, conveyor belts, and quality – control sensors, ensuring that each component is assembled accurately and efficiently. Any power interruption or instability could lead to production halts and costly rework, but the reliable power provided by the SPS5785 51198651-100 keeps the assembly process running smoothly.
In the oil and gas industry, where operations are often carried out in harsh and remote environments, the Honeywell SPS5785 51198651-100 powers the monitoring and control systems in oil wells and pipelines. Its wide operating temperature range and robust construction allow it to function reliably in extreme cold or high – temperature conditions. The module’s protection features are crucial in preventing damage to the sensitive equipment used for measuring pressure, flow, and gas composition, ensuring the safety and continuous operation of the oil and gas production process.
For smart building automation systems, the SPS5785 51198651-100 provides power to various devices such as HVAC controllers, lighting control systems, and access control panels. Its energy – saving efficiency helps building managers reduce electricity costs, while the stable power output ensures the seamless operation of these systems, enhancing the comfort and security of the building occupants.
Related model recommendations
- Honeywell SPS5786: An upgraded version of the SPS5785 51198651-100, offering higher output current capabilities and potentially additional communication interfaces. It is suitable for applications with increased power demands or more complex communication requirements, such as large – scale industrial complexes or data centers.
- Honeywell SPS5780 series: A related product line with different output voltage and current specifications. These modules can be selected based on the specific power needs of different industrial devices, providing flexibility in system design and configuration.
- Honeywell redundant power supply modules: Such as the SPS – RED series, which can be used in conjunction with the SPS5785 51198651-100 to create a redundant power system. In critical applications where continuous power supply is non – negotiable, like in hospitals or data centers, the redundant power supply modules ensure that if one power source fails, the other can immediately take over, preventing system downtime.
- Honeywell power distribution units (PDUs): PDUs like the HPDU series work in tandem with the SPS5785 51198651-100 to manage and distribute power to multiple devices. They provide features such as circuit protection, power metering, and remote monitoring, enhancing the overall power management efficiency of industrial systems.
- Honeywell battery backup modules: Modules like the BBU series can be paired with the SPS5785 51198651-100 to provide backup power during outages. In industrial settings where an uninterrupted power supply is essential for safety or production continuity, the battery backup modules offer a reliable solution, allowing the system to continue operating until the main power is restored.
Installation, commissioning and maintenance instructions
Installation preparation
Before installing the Honeywell SPS5785 51198651-100, ensure that the installation environment is clean, dry, and free from excessive dust and moisture. The ambient temperature should be within the module’s specified operating range of -40°C – 85°C. Use appropriate electrical tools and follow all safety regulations. Disconnect all power sources from the system to prevent electrical shock. Check the compatibility of the SPS5785 51198651-100 with the existing electrical infrastructure, including verifying the input voltage range and the capacity of the wiring. Also, ensure that the physical mounting location has enough space to accommodate the module and allows for proper ventilation to prevent overheating.
Maintenance suggestions
For daily maintenance of the Honeywell SPS5785 51198651-100, regularly inspect the module for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the output voltage and current using appropriate measuring instruments to ensure they remain within the specified ranges. Clean the module periodically to remove dust, as dust accumulation can affect its heat dissipation and performance. In case of a malfunction, first check the input power source and the connections. If the problem persists, refer to the product manual for troubleshooting steps or contact Honeywell’s technical support. When replacing any components, use only genuine Honeywell parts to maintain the module’s performance and reliability. Additionally, consider performing regular firmware updates (if applicable) to benefit from the latest features and improvements.
Service and guarantee commitment
Honeywell stands firmly behind the Honeywell SPS5785 51198651-100 with a comprehensive service and guarantee. The product comes with a standard warranty, during which any manufacturing defects will be rectified free of charge. Honeywell’s global network of technical support teams is available 24/7 to provide assistance with installation, commissioning, and troubleshooting. Whether it’s a technical query, a software – related issue, or a hardware malfunction, customers can rely on the expertise of Honeywell’s support staff. The company also invests continuously in research and development, ensuring that the SPS5785 51198651-100 benefits from ongoing performance enhancements and compatibility improvements. This commitment reflects Honeywell’s confidence in the quality of its products and its dedication to meeting the long – term needs of its customers in the industrial automation sector.
