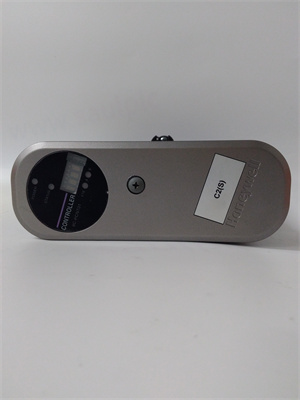

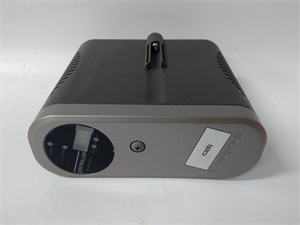

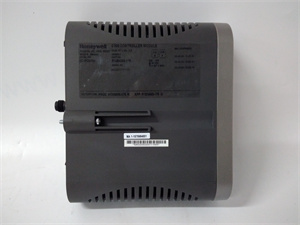

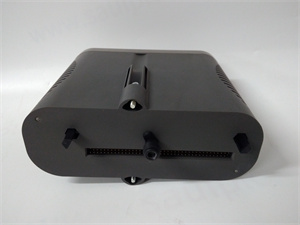

Honeywell 8C-PCNT01

The Honeywell 8C – PCNT01 is a pivotal controller module within the esteemed Honeywell C300 controller series. Engineered for industrial automation and process control, this module serves as a linchpin in modular control systems. It is designed to handle a wide array of control tasks with utmost precision and reliability.

Functionally, the 8C – PCNT01 can count pulses from diverse sources such as turbine meters, flow meters, and encoders. This pulse – counting ability, with a capacity of up to 100 pulses per second and a high resolution of 0.001%, is crucial for applications where accurate measurement of flow rates, rotational speeds, or other pulse – based parameters is required. Additionally, it features two output channels, which can be effectively utilized to drive relays or other devices, enabling seamless integration with external control components in an industrial setup.

The Honeywell 8C – PCNT01 is equipped with an advanced processor. This high – performance processor allows for swift and efficient processing of incoming data, ensuring that control decisions are made in a timely manner. Whether it’s handling complex pulse – counting operations or coordinating with other components in the control system, the module’s processing power enables it to keep up with the demands of high – speed industrial processes.

With its high – impedance, differential voltage, and optically isolated inputs, the 8C – PCNT01 can interface with a broad spectrum of sensors and devices. It can accurately measure signals over a wide frequency range, from 0 – 100 kHz in single – channel mode to 0 – 10 kHz in dual – pulse channel mode. This versatility makes it suitable for use in various industries where different types of sensors are employed to monitor and control processes.

Built to withstand harsh industrial environments, the module has an operating temperature range from – 40°C to + 70°C. Its rugged construction, combined with certifications like CE, UL, and ISO 9001, guarantees its reliability even in challenging conditions. This makes it a dependable choice for industries such as oil and gas, where equipment must operate flawlessly in extreme temperatures and potentially corrosive atmospheres.

Featuring communication interfaces like RS – 485, CANopen, and RS – 485 Modbus RTU, the 8C – PCNT01 can be easily integrated into existing industrial control systems. This allows for seamless communication with other modules, controllers, and 上位机，facilitating the exchange of data and commands across the entire automation network.

In manufacturing plants, the Honeywell 8C – PCNT01 can be used to monitor and control conveyor belt speeds. By counting pulses from encoders attached to the conveyor belt motors, it can precisely regulate the speed to ensure smooth material flow. For example, in a food packaging factory, accurate conveyor belt speed control is essential to ensure proper packaging and prevent product jams. The module’s two output channels can be used to activate alarms or control other devices in case of speed deviations.

In oil and gas pipelines, the 8C – PCNT01 can interface with turbine meters to measure the flow rate of oil or gas. The high – accuracy pulse – counting capabilities ensure that the volume of the transported fluid is measured precisely. This data is crucial for inventory management, billing, and ensuring the safe and efficient operation of the pipeline. In addition, the module’s ability to operate in harsh environments makes it suitable for installation in remote and challenging locations along the pipeline.

For power generation plants, the module can be used to monitor the rotational speed of generators. By counting pulses from sensors attached to the generator shafts, it can provide real – time speed data. This information is vital for maintaining the stability of the power grid, as any fluctuations in generator speed can affect the quality of the electricity produced. The 8C – PCNT01 can also be integrated with other control systems in the power plant to adjust the generator’s output based on the measured speed.

This model is likely part of the same C300 controller series. While the 8C – PCNT01 focuses on pulse counting and general control functions, the 8C – PAON01 may have different input/output configurations or be optimized for specific types of analog or digital control tasks, such as precise analog output control for regulating process variables.

It could be a related or upgraded version. The “CC” prefix might indicate additional features, perhaps enhanced communication capabilities or improved processing power compared to the 8C – PCNT01. It may be designed for more complex control systems where higher performance and advanced communication protocols are required.

The “H” in the model might suggest a version with enhanced ruggedness or suitability for hazardous environments. It could have additional protection against dust, moisture, or explosive atmospheres, making it ideal for use in industries like coal mining or chemical plants where safety and durability are of utmost importance.

Possibly an “S” for speed – optimized. This model may offer faster processing speeds for applications that require rapid response times, such as high – speed manufacturing lines where split – second control decisions are necessary to ensure product quality and production efficiency.

The “E” could denote an enhanced version with additional diagnostic features. It might be able to provide more detailed information about its own health and the status of the connected devices, allowing for more proactive maintenance and reducing unplanned downtime in industrial operations.

Before installing the Honeywell 8C – PCNT01, ensure the installation environment has a temperature within – 40°C to + 70°C. Use appropriate tools, such as screwdrivers for securing connections. Disconnect all power sources in the system to prevent electrical accidents. Verify the compatibility of the module with the existing control system in terms of power supply requirements, communication interfaces, and input/output signal levels. Mount the module on a suitable support structure, ensuring it is securely fastened. Prepare the wires according to the specified gauge and strip the ends for proper connection to the module’s terminals.

Regularly inspect the 8C – PCNT01 for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the module’s operating temperature to ensure it remains within the normal range. Use diagnostic tools to check the functionality of the input and output channels. In case of a malfunction, first check the power supply and wiring connections. If the problem persists, refer to the product manual for detailed troubleshooting steps. When replacing parts, always use genuine Honeywell components to maintain the module’s performance and reliability. Keep records of maintenance activities and any issues encountered for future reference.

Honeywell offers a comprehensive service and guarantee for the 8C – PCNT01. The product typically comes with a standard warranty period, during which any manufacturing defects will be rectified free of charge. Honeywell’s global network of technical support teams is available around the clock. Whether it’s assistance with installation, commissioning, or troubleshooting, their experts can provide prompt and accurate solutions. They also offer regular product updates and enhancements to keep the 8C – PCNT01 at the forefront of controller module technology. This commitment reflects Honeywell’s confidence in the product’s quality and its dedication to meeting the long – term needs of its customers in the industrial automation field.
