Description
Product Overview
The GE IC670GBI102D is a high – performance bus interface unit designed for field input/output control systems. As part of the field control series, it plays a crucial role in industrial automation setups. This unit is engineered to establish reliable communication between controllers and I/O devices, making it an essential component for distributed I/O architectures. With the IC670GBI102D, users can seamlessly connect field control I/O modules to a host GE CPU via the Genius bus network. It offers a user – friendly interface and a compact form factor, ensuring easy installation and maintenance. Whether in a large – scale manufacturing plant or a complex industrial process, the IC670GBI102D enhances system functionality and efficiency, making it a top choice for industrial automation applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC670GBI102D |
| Manufacturer | GE |
| Product Type | Bus Interface Unit |
| Nominal Rated Voltage | 115 volts AC, 125 volts DC |
| Supply Voltage Range | 18 – 30 VDC |
| Power Consumption | 16.8 watts |
| Current Output to Modules | 1.4 A |
| Communication Protocol | Compatible with standard industrial protocols |
| Operating Temperature | 0 – 55 °C (32 – 131 °F) |
| Storage Temperature | – 40 – 85 °C (- 40 – 185 °F) |
| Relative Humidity | 5% – 95% non – condensing |
| Vibration and Shock Resistance | Can withstand typical industrial levels |
| Mounting Method | Panel – mountable on DIN rail |
| Terminal Type | Screw – type for bus termination |
| Monitor Port | 9 – pin D – shell for HHP connection |
| Number of Supported I/O Modules | Up to 8 |

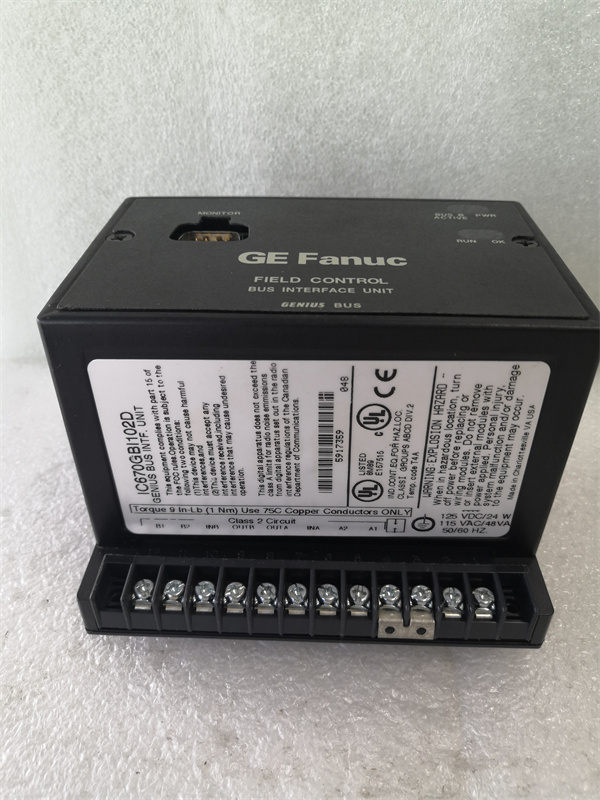

IC670GBI102D
Main Features and Advantages
Reliable Connectivity: The IC670GBI102D ensures seamless data transmission between controllers and I/O devices. Its screw – type terminals for Genius main bus and optional redundant bus termination provide a secure connection. This reliability is crucial for maintaining continuous operation in industrial settings where even brief communication disruptions can lead to significant production losses.
Wide Voltage Compatibility: With a nominal rated voltage of 115 volts AC or 125 volts DC and a supply voltage range of 18 – 30 VDC, it can adapt to various power sources. This flexibility allows it to be used in different industrial environments without the need for extensive power – supply modifications.
Efficient Power Management: Consuming only 16.8 watts of power and providing a 1.4 A current output to modules, it offers energy – efficient operation. This not only helps in reducing overall energy costs but also ensures stable performance under different load conditions.
User – Friendly Design: It features a 9 – pin D – shell monitor port for connecting a handheld programmer (HHP), which simplifies configuration and troubleshooting. Additionally, its ability to host up to 8 field control I/O modules and support standard Profibus transmission speeds like 153.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, or 38.4 Kbaud makes it highly versatile.
Wide Voltage Compatibility: With a nominal rated voltage of 115 volts AC or 125 volts DC and a supply voltage range of 18 – 30 VDC, it can adapt to various power sources. This flexibility allows it to be used in different industrial environments without the need for extensive power – supply modifications.
Efficient Power Management: Consuming only 16.8 watts of power and providing a 1.4 A current output to modules, it offers energy – efficient operation. This not only helps in reducing overall energy costs but also ensures stable performance under different load conditions.
User – Friendly Design: It features a 9 – pin D – shell monitor port for connecting a handheld programmer (HHP), which simplifies configuration and troubleshooting. Additionally, its ability to host up to 8 field control I/O modules and support standard Profibus transmission speeds like 153.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, or 38.4 Kbaud makes it highly versatile.
Application Field
Manufacturing Industry: In manufacturing plants, the IC670GBI102D is used to connect sensors and actuators to the central control system. For example, in an automotive assembly line, it can link the I/O modules that control robotic arms, conveyor belts, and other machinery, ensuring smooth coordination of production processes.
Process Control: In industries such as chemical, oil, and gas, where precise control of processes is essential, the IC670GBI102D plays a vital role. It can connect the field devices that monitor and control parameters like temperature, pressure, and flow rate to the main control system, enabling real – time adjustments and ensuring process safety and efficiency.
Power Generation: In power plants, this bus interface unit is used to integrate various I/O devices involved in power generation, distribution, and monitoring. It can connect sensors that monitor the status of generators, transformers, and other equipment to the control system, allowing for timely detection and resolution of any issues.

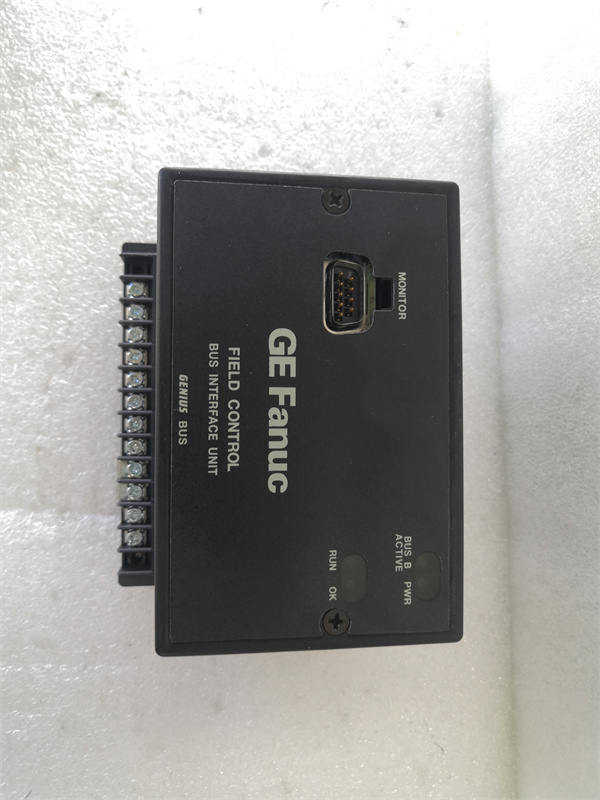

IC670GBI102D
Related Products
IC670GBI001: Another Genius bus interface module in the GE field control series. It has a different power supply requirement compared to the IC670GBI102D, but also supports distributed I/O architecture and Genius Bus protocol.
IC670GB: A module in the same series, which may have different functions such as being more focused on basic interface functions without some of the advanced features of the IC670GBI102D like the specific HHP connection.
IC698CPE010: A high – performance central processing unit by GE. It can work in tandem with the IC670GBI102D in an industrial automation system, with the IC670GBI102D handling the I/O interface and communication, and the IC698CPE010 processing the data and controlling operations.
IC697ACC722B: A communication module that can enhance the communication capabilities of the overall system where the IC670GBI102D is installed. It may offer additional communication protocols or faster data transfer speeds to support more complex industrial network setups.
IC660BLM508: A pre – formed bus cable that can be used with the IC670GBI102D. It has a specific terminal resistor value (75 ohms) and is designed to work seamlessly with the bus interface unit for a more reliable and easy – to – install network connection.
IC670GB: A module in the same series, which may have different functions such as being more focused on basic interface functions without some of the advanced features of the IC670GBI102D like the specific HHP connection.
IC698CPE010: A high – performance central processing unit by GE. It can work in tandem with the IC670GBI102D in an industrial automation system, with the IC670GBI102D handling the I/O interface and communication, and the IC698CPE010 processing the data and controlling operations.
IC697ACC722B: A communication module that can enhance the communication capabilities of the overall system where the IC670GBI102D is installed. It may offer additional communication protocols or faster data transfer speeds to support more complex industrial network setups.
IC660BLM508: A pre – formed bus cable that can be used with the IC670GBI102D. It has a specific terminal resistor value (75 ohms) and is designed to work seamlessly with the bus interface unit for a more reliable and easy – to – install network connection.
Installation and Maintenance
Pre – installation preparation: Before installing the IC670GBI102D, ensure the power is off in the system. Check the installation location for proper ventilation and absence of excessive dust or moisture. Verify that the power supply voltage falls within the unit’s specified range of 18 – 30 VDC for DC power or 90 – 135 VAC for AC power. Also, make sure the DIN rail, where it will be panel – mounted, is in good condition and properly installed.
Maintenance recommendations: Regularly inspect the IC670GBI102D for any signs of physical damage, such as cracked casings or loose connections. Check the temperature of the unit during operation; if it runs too hot, it may indicate a problem. Periodically clean the unit to prevent dust accumulation, which can affect its performance. Monitor the communication status with connected devices to ensure seamless data transfer. If any issues arise, refer to the user manual for troubleshooting steps or contact GE’s technical support.
Product Guarantee
GE stands firmly behind the quality of the IC670GBI102D. The product comes with a comprehensive quality assurance program. In case of any manufacturing defects, GE will provide repair or replacement services within the warranty period. The company’s extensive global network of technical support teams is always ready to assist customers. Whether it’s answering questions about installation, configuration, or troubleshooting, GE’s experts are just a call or an email away. This commitment to quality and support reflects GE’s confidence in the IC670GBI102D and its dedication to ensuring customer satisfaction in industrial automation applications.
