BENTLY NEVADA 3500/44M-01-00 176449-03 Aeroderivative GT Vibration Monitor
1. Product Description
The BENTLY NEVADA 3500/44M-01-00 176449-03 is a high-performance vibration monitor engineered for aeroderivative gas turbines and critical rotating machinery. As part of the 3500 Series, it delivers real-time condition monitoring with four independent channels, enabling precise detection of anomalies such as imbalance, misalignment, or bearing wear. The 3500/44M-01-00 176449-03 supports a wide frequency range (up to 1 kHz) and integrates seamlessly with BENTLY’s System 1 software for advanced analytics and predictive maintenance. Its robust design ensures operation in harsh environments, including extreme temperatures (-40°C to +70°C) and high humidity.
The BENTLY NEVADA 3500/44M-01-00 176449-03 is a high-performance vibration monitor engineered for aeroderivative gas turbines and critical rotating machinery. As part of the 3500 Series, it delivers real-time condition monitoring with four independent channels, enabling precise detection of anomalies such as imbalance, misalignment, or bearing wear. The 3500/44M-01-00 176449-03 supports a wide frequency range (up to 1 kHz) and integrates seamlessly with BENTLY’s System 1 software for advanced analytics and predictive maintenance. Its robust design ensures operation in harsh environments, including extreme temperatures (-40°C to +70°C) and high humidity.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/44M-01-00 176449-03 |
| Input Type | Vibration signals from velocity sensors/accelerometers |
| Monitoring Frequency | 0–1 kHz |
| Accuracy | ±2% of full scale |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Output | 4–20 mA, Modbus/TCP |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 140 mm × 100 mm × 65 mm |
| Weight | 0.8 kg |
| Redundancy | Supports dual-channel configuration |

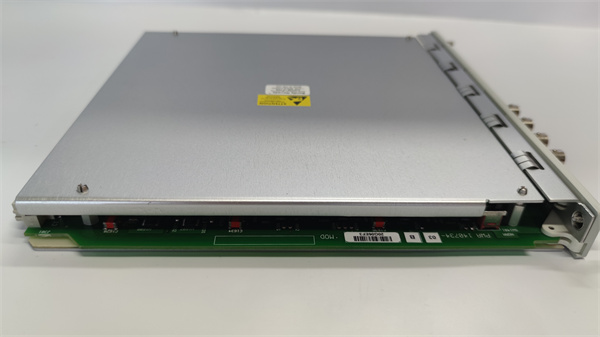

BENTLY 3500/44M-01-00 176449-03
3. Advantages and Features
- Multi-Channel Precision: Four independent channels allow simultaneous monitoring of multiple critical points.
- Real-Time Analytics: Integrates with BENTLY’s System 1 software for trend analysis and predictive maintenance.
- Wide Environmental Range: Operates in extreme temperatures and humidity, ensuring reliability in industrial settings.
- Modular Design: Easy installation and replacement within the 3500 Series rack system.
- Safety Compliance: Meets international standards for vibration monitoring in gas turbines.
4. Application Areas and Use Cases
Industry Applications:
Industry Applications:
- Energy: Aeroderivative gas turbines in power plants.
- Oil & Gas: Turbines in offshore platforms and refineries.
- Manufacturing: High-speed rotating machinery.
Case Study: A Middle Eastern power plant reduced unplanned downtime by 30% using the 3500/44M-01-00 176449-03 to monitor vibrations in aeroderivative gas turbines. Early detection of bearing wear through System 1 software analysis prevented catastrophic failures.
5. Competitor Comparison
- Superior Channel Density: Four channels in a compact design compared to standard two-channel alternatives.
- Enhanced Software Integration: Direct compatibility with System 1 for advanced diagnostics, unlike basic monitors.
- Robust Environmental Performance: Wider temperature range and humidity tolerance than most competitors.
BENTLY 3500/44M-01-00 176449-03
6. Selection Recommendations
- Frequency Requirements: Ensure the 1 kHz monitoring range aligns with your machinery’s vibration characteristics.
- Integration Needs: Pair with System 1 software for predictive maintenance capabilities.
- Environmental Conditions: Verify temperature and humidity ratings match the installation site.
7. Precautions
- Calibration: Regularly calibrate sensors to maintain accuracy.
- Shielding: Use shielded cables to minimize EMI interference.
- Software Updates: Keep System 1 software updated for optimal performance.
Shanxi Runsheng Import and Export Co., LTD. offers BENTLY NEVADA 3500/44M-01-00 176449-03 and automation solutions. Visit www.rsmodules.com for technical support and product inquiries.
