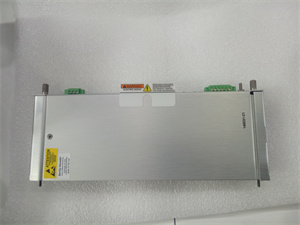

BENTLY NEVADA 146031-01 Transient Data Interface I/O Module
1. Product Description
The BENTLY NEVADA 146031-01 is a high-performance transient data interface I/O module designed for real-time machinery health monitoring in critical industrial applications. As part of the 3500/22M Monitoring System, it bridges the gap between BENTLY’s 3500 Series racks and advanced analytics software like System 1, enabling seamless acquisition and transmission of steady-state and transient vibration waveforms. This module supports up to 16 channels of synchronous data collection, making it ideal for rotating equipment in power generation, oil & gas, and manufacturing sectors. With redundant configurations and TDXnet communication, the 146031-01 ensures reliable data integrity even in harsh environments.
The BENTLY NEVADA 146031-01 is a high-performance transient data interface I/O module designed for real-time machinery health monitoring in critical industrial applications. As part of the 3500/22M Monitoring System, it bridges the gap between BENTLY’s 3500 Series racks and advanced analytics software like System 1, enabling seamless acquisition and transmission of steady-state and transient vibration waveforms. This module supports up to 16 channels of synchronous data collection, making it ideal for rotating equipment in power generation, oil & gas, and manufacturing sectors. With redundant configurations and TDXnet communication, the 146031-01 ensures reliable data integrity even in harsh environments.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 146031-01 |
| Function | Transient Data Interface I/O Module |
| Compatibility | BENTLY 3500/22M Monitoring System |
| Communication | 10Base-T/100Base-TX Ethernet |
| Data Rate | Up to 50 kHz |
| Power Supply | 220 VAC |
| Dimensions | 2.5 cm × 11.2 cm × 24.2 cm |
| Weight | 0.4 kg |
| Mounting Slot | Slot 1 (adjacent to power supply) |
| Redundancy Support | Triple Modular Redundancy (TMR) |
BENTLY 146031-01
3. Advantages and Features
- High-Speed Data Acquisition: Captures transient events (e.g., start-up/shutdown) with 50 kHz resolution for detailed waveform analysis.
- Dual-Mode Operation: Supports both static and dynamic data recording, with optional expansion for high-resolution transient analysis.
- Redundancy Assurance: TMR version ensures system reliability by comparing data across three independent channels.
- System Integration: Seamless compatibility with System 1 for predictive maintenance and alarm management.
- EMI Protection: Shielded design minimizes signal interference in industrial settings.
4. Application Areas and Use Cases
Industry Applications:
Industry Applications:
- Power Generation: Steam turbines and generators.
- Oil & Gas: Compressors and pumps in offshore platforms.
- Manufacturing: High-speed rotating machinery.
Case Study: A U.S. petrochemical plant reduced unplanned downtime by 35% using the 146031-01 to monitor compressor vibrations. Early detection of rotor misalignment via transient data analysis allowed proactive repairs, saving $800,000 annually.
5. Competitor Comparison
- Superior Data Resolution: 50 kHz sampling rate outperforms legacy modules with 10–20 kHz limits.
- Redundancy Flexibility: TMR configuration provides fault tolerance, unlike basic single-module solutions.
- Software Compatibility: Direct integration with System 1 for advanced diagnostics, reducing reliance on third-party tools.
BENTLY 146031-01
6. Selection Recommendations
- System Compatibility: Ensure alignment with 3500 Series racks and 3500/42M monitors.
- Redundancy Needs: Opt for TMR versions in critical applications requiring 99.99% uptime.
- Data Requirements: Choose between Ethernet or fiber-optic connectivity based on plant network infrastructure.
7. Precautions
- Installation: Install strictly in Slot 1 adjacent to power supplies to avoid communication errors.
- Cabling: Use shielded Ethernet cables to minimize electromagnetic interference.
- Firmware Updates: Regularly update firmware to access new features and security patches.
