Product Core Brief

• Model: FBM237 (Associated Part: P0914XS)
• Brand: Foxboro (Schneider Electric / Invensys)
• Series: I/A Series 200 FBM
• Core Function: Provides eight channel-isolated 0-20mA analog output channels with hardware redundancy support.
• Product Type: Redundant Analog Output Module
• Key Specs: 8 Channels | 0-20mA Output | G3 Harsh Environment
• Condition: New Original / New Surplus

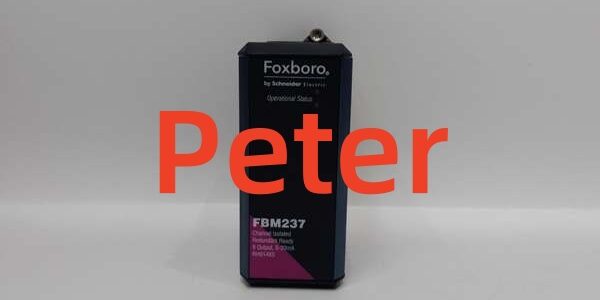

FOXBORO FBM237

Product Introduction

The Foxboro serves as a high-reliability analog output module for the I/A Series distributed control system. This industrial automation unit provides eight independent, channel-isolated output channels capable of delivering standard 0-20mA DC signals to final control elements.

This replacement module is designed for critical applications requiring maximum uptime. It supports redundant configuration, ensuring automatic failover in the event of a module fault. Each channel is electrically isolated to prevent ground loop interference, making it ideal for precise process control in harsh industrial environments.

Key Technical Specifications

Quality Control Process

Every replacement module undergoes strict electrical validation. We first verify the 24 VDC power draw using a calibrated Fluke multimeter to ensure internal regulators are stable. Next, we perform signal injection testing on all eight channels using a precision loop calibrator to verify 0-20mA accuracy and 16-bit resolution. We then inspect the backplane edge connector for bent pins or oxidation. All units ship in anti-static shielding.

FOXBORO FBM237

Replacement Pitfall Guide

❗ Verify Redundancy Configuration. The supports redundant output function blocks (AOUTR). Ensure your DCS software is correctly configured to utilize the redundant pair. Installing a single unit in a redundant slot without proper configuration will not provide failover protection.

❗ Check Channel Isolation. All eight output channels are electrically isolated from each other and from ground. Do not attempt to tie the negative terminals together externally, as this defeats the isolation and can cause ground loop interference.

❗ Confirm Output Signal Range. This module outputs 0-20mA. Do not substitute with a 4-20mA module unless your field devices and DCS configuration support the different range. Incorrect signal ranges will cause valve positioning errors.

❗ Inspect Terminal Assembly Seating. The requires a specific Terminal Assembly (TA) for field wiring. Ensure the TA is fully seated and locked onto the FBM before applying power to prevent arcing or signal loss.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Signal Accuracy: ±0.1% full-scale precision with 16-bit resolution.
• Data Integration: Seamless backplane communication with I/A Series controllers.
