Product Core Brief
- Model: FBM214B (Associated Parts: P0927AH, RH927AH, RH101AB)
- Brand: FOXBORO (Invensys / Schneider Electric)
- Series: I/A Series DCS
- Core Function: Provides 8-channel analog input processing with HART communication capabilities for field instrumentation.
- Product Type: HART Analog Input Module
- Key Specs: 8 Channels | HART Protocol | 4-20 mA | Hot-Swappable
- Condition: New Original / New Surplus

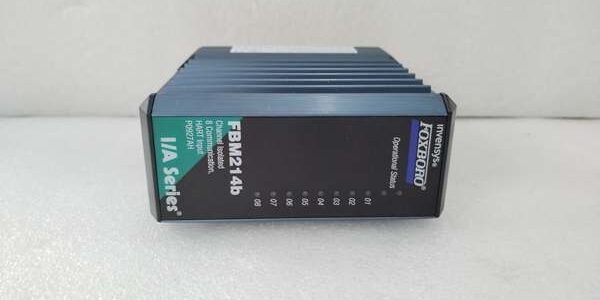

Foxboro FBM214B
Product Introduction
FOXBORO is a high-precision, 8-channel analog input module designed for the I/A Series distributed control system. It serves as a critical interface for reading field transmitter signals, supporting standard 4-20 mA analog inputs as well as HART digital communication.
This industrial automation unit allows operators to read process variables while simultaneously accessing device diagnostics and configuration data via the HART protocol. Its robust design ensures reliable signal processing in demanding industrial environments, making it a vital component for continuous process control.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | 8-Channel HART Analog Input |
| System Compatibility | Invensys Foxboro I/A Series |
| Channel Count | 8 Independent Inputs |
| Signal Type | 4-20 mA with HART Overlay |
| Associated Part Numbers | P0927AH, RH927AH, RH101AB |
| Environmental Rating | Industrial Grade |
| Mounting | I/A Series FBM Slot |
| Hot-Swap | Supported |
| Diagnostics | Built-in Channel & Module Status |
Quality Control Process
We validate every FOXBORO before shipment to ensure operational readiness:
- Visual & Physical Inspection: Backplane connectors and terminal assembly points are checked for pin straightness, corrosion, or mechanical stress.
- Functional Test: Modules are powered up in a test rack to verify LED status indicators and backplane communication handshake.
- Signal Verification: Each of the 8 channels is stimulated with calibrated 4-20 mA signals to confirm accurate state reporting, and HART communication is tested for proper handshaking.
- Cleaning & Packaging: Units are cleaned, anti-static shielded, and desiccant-packed to prevent moisture damage during transit.
FBM214B
Replacement Pitfall Guide
❗ Part Number Suffix Verification: The comes with various suffixes and associated part numbers (e.g., P0927AH, RH927AH). Always match the exact alphanumeric code on your existing module to ensure firmware and hardware compatibility.
❗ HART Protocol Compatibility: Ensure your DCS software is configured to recognize HART inputs on this specific slot. If configured as a standard analog-only module, you will lose digital diagnostic capabilities.
❗ Loop Resistance: HART communication requires a minimum loop resistance (typically 250 ohms). Verify that your field wiring and safety barriers meet this requirement, or the HART modem will fail to communicate.
❗ Hot-Swap Procedure: Although hot-swappable, always verify the redundant path is active before removing a primary module. Removing the sole active module under load can cause a momentary loss of field visibility to the controller.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor | Compatibility Level | Migration Notes |
|---|---|---|---|
| (P0927AH) | Direct | Verify exact suffix and firmware revision | |
| FBM214 | Conditional | Base model; verify channel and HART specs | |
| FBM214A | Conditional | Older revision; verify system compatibility | |
| FBM237 | Functional Alt | Analog Output module; different function |
- Lead Time: Typically 1-3 weeks for surplus stock; 4-8 weeks for new factory orders.
- Warranty: Standard 12-month functional warranty.
