Product Core Brief
- Model: 3300/65-03-01-00-00-00-01
- Brand: BENTLY NEVADA
- Series: 3300 Dual Probe Monitor
- Core Function: Combines shaft relative displacement and casing velocity into absolute vibration.
- Product Type: Machinery Protection Monitor
- Key Specs: 0-15 mils Range | 3300 Proximitor Input | Seismoprobe
- Condition: New Original / New Surplus

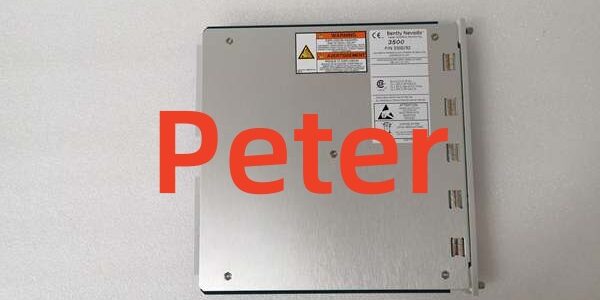

BENTLY NEVADA 136180-01
Product Introduction
BENTLY 3300/65-03-01-00-00-00-01 is a dual probe monitor for fluid film bearing machines. It mathematically sums relative shaft vibration and casing vibration to provide absolute shaft data.
This industrial automation unit is essential for large steam and gas turbines where casing movement is significant. It provides four distinct measurements to ensure complete rotor dynamic analysis.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full-Scale Range | 0 to 15 mils (Code 03) |
| Relative Transducer | 3300 or 7200 Proximitor (Code 01) |
| Seismic Transducer | Seismoprobe, No Relay (Code 00) |
| Agency Approval | Not Required (Code 00) |
| Safety Barrier | None (Code 00) |
| Trip Multiply | 2X (Code 01) |
| Measurement Outputs | Absolute, Relative, Casing, DC Gap |
| Target Application | Fluid Film Bearings (Turbines) |
| Operating Temp | Standard Industrial Range |
| Compliance | API 670 |
Quality Control Process
We validate every BENTLY 3300/65-03-01-00-00-00-01 before shipment. First, we inject simulated proximity and seismic signals to verify the internal vector summation math.
Next, we test the 0-15 mils full-scale range to ensure alarm relays trip at the exact programmed setpoints. We also verify the DC gap measurement accuracy against a calibrated reference voltage.
Finally, each replacement module ships in anti-static shielding with desiccant packs. This prevents moisture ingress during transit.
Replacement Pitfall Guide
❗ Obsolete Hardware Warning: The 3300 series was classified as obsolete in 2014. Support is strictly limited, and you should plan a migration to the 3500 series as soon as possible.
❗ Range Code Verification: The “03” in your part number dictates a 0-15 mils range. Installing a 0-10 mils or 0-20 mils module will cause severe scaling errors in your DCS.
❗ Casing Vibration Transmission: Do not use this module unless your machine actually transmits significant vibration to the casing. For rigid bearing machines, a standard relative monitor is sufficient.
❗ Sensor Matching: Ensure your field seismic transducer matches the “Seismoprobe, no relay” configuration. Using a Velomitor or a quad-relay sensor requires a completely different part number.
Keep these in mind and you’ll cut 90% of rework time.
BENTLY NEVADA 136180-01
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 3300/65-03-01-00-00-00-01 | 3500/42M + 3500/65 | Needs Adaptation | Requires full rack migration |
| 3300/65-03-01-00-00-00-01 | 3300/65-03-01-00-00-01-00 | Direct | Verify relay/seismoprobe code |
| 3300/65-03-01-00-00-00-01 | 3300/65-04-01-00-00-00-01 | Needs Adaptation | 0-20 mils range; recalibrate DCS |
- Measurement Latency: Analog output < 50ms
- Vector Summation: Real-time hardware processing
