Product Core Brief
- Model: 145988-02
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Continuously monitors up to 16 independent temperature inputs to protect rotating equipment from thermal damage.
- Product Type: 16-Channel Temperature Monitor Module
- Key Specs: 16-Channel | RTD & Thermocouple | TMR Compatible
- Condition: New Surplus / Original OEM

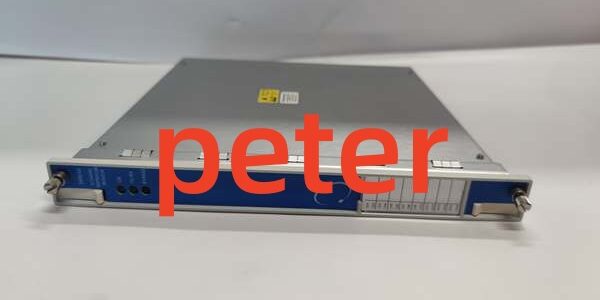

BENTLY 3500/65 145988-02
Key Technical Specifications
- Manufacturer: Bently Nevada
- Part Number: 145988-02
- Product Category: Temperature Monitor Module
- System Architecture: Bently Nevada 3500 Rack
- Channel Count: 16 Independent Inputs
- Supported Sensors: RTD (3-wire, 4-wire) & Isolated Thermocouples
- Alarm Logic: Two-Level (Alert & Danger) with Configurable Delays
- Typical Power Consumption: ~3 W
- Operating Temp Range: -30°C to +65°C
- Storage Temp Range: -40°C to +85°C
- Compliance: API 670 / CE / CSA
Product Introduction (No Fluff)
This 145988-02 serves as a high-density thermal protection module within a Bently Nevada 3500 rack, tracking 16 discrete temperature points on critical machinery like turbines and compressors. It processes RTD and thermocouple signals to trigger precise, two-level alarms before thermal damage occurs.
Sourcing this exact OEM replacement part prevents catastrophic machine failures when legacy temperature monitors drift or fail. Keeping verified new surplus stock on hand drastically reduces unplanned downtime during critical backplane failures or when expanding thermal monitoring coverage.
QA & Testing SOP (Dynamic & Transparent)
Temperature monitors demand precise calibration. Every 145988-02 undergoes an inbound anti-counterfeit inspection, verifying PCB silkscreen, component lot codes, and Bently Nevada factory labels. Next, the module is mounted on a dedicated 3500 test rack to validate backplane communication. We inject precision resistance and millivolt signals to verify the module accurately calculates temperature values and triggers Alert/Danger relays at the exact programmed setpoints. Finally, a 4-hour continuous burn-in under nominal load catches marginal A/D converters before they reach your panel. All units ship in dual-layer ESD shielding with a printed QA test report.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Sensor Type Configuration: This module is highly flexible but unforgiving if misconfigured. Each of the 16 channels must be explicitly programmed in the 3500 Configuration Software for the specific sensor type (3-wire RTD, 4-wire RTD, or Thermocouple) and its exact range. Connecting a 3-wire RTD to a channel configured for a thermocouple will result in wildly inaccurate readings.
❗ Alarm Delay Implementation: Thermal mass causes temperature to fluctuate during normal load changes. Always configure an alarm delay in the software to prevent nuisance tripping during transient thermal events. Without this, a momentary spike could unnecessarily trip your machinery.
❗ TMR Redundancy: For critical assets, this module supports Triple Modular Redundancy (TMR). If utilizing TMR, ensure you are installing three identical modules and have configured the voting logic correctly in the software to maximize fault tolerance.
Replacement Protocol:
- Pre-Install: Lock out the 3500 rack power. Verify 0 VDC at the backplane. Ground yourself properly.
- Removal: Release the front panel retaining screws. Extract the failed module straight out. Inspect the backplane connector for bent pins.
- Install: Align the 145988-02 with the guides. Seat it firmly and secure the faceplate screws. Reconnect the RTD/Thermocouple field wiring.
- Power-on Test: Restore rack power. Use the 3500 Configuration Software to verify the module is recognized. Check the front panel OK LEDs and validate live temperature readings against a handheld calibrator.
BENTLY 3500/65 145988-02
Technical FAQ
Is this an exact drop-in replacement for my older 3500/65 module?
Yes, the 145988-02 maintains complete backward compatibility with existing 3500 racks and configurations. It offers the same 16-channel temperature monitoring and integrates seamlessly with the 3500 Configuration Software. You can swap it directly into an older slot without reconfiguring the entire rack.
Why is this listed as “New Surplus” instead of factory-new?
This is genuine Bently Nevada stock that was never deployed in a power plant or refinery. It has been stored in climate-controlled inventory rather than exposed to harsh industrial environments. You receive the exact same MTBF and lifespan as a factory-fresh unit, typically at a significantly lower cost and without the 16-week lead time.
Can I hot-swap this temperature monitor while the 3500 rack is live?
No. The 3500 backplane does not support hot-swapping the temperature monitor module. Removing it under power will cause an immediate loss of thermal monitoring for the connected channels, potentially disabling critical machinery protection. Always schedule this replacement during a planned outage or shutdown window.
What is the warranty coverage on this part?
We provide a standard 12-month functional warranty. If the module fails under normal operating conditions within that window, we replace it. Our QA testing proves the module processed temperature signals accurately before it left our bench, so we stand behind our inventory.
My 3500 system is aging. Should I replace this module or plan a full system migration?
If this is an isolated failure, replacing the 145988-02 is the most cost-effective way to keep your thermal protection system compliant with API 670. However, if you are experiencing cascading backplane communication errors or multiple monitor failures, your entire rack may be nearing end-of-life. Use this replacement as a bridge to schedule a comprehensive migration during your next major turnaround.
