Product Core Brief
- Model: HIMA X-CPU 01
- Brand: HIMA
- Series: HIMax
- Core Function: Executes high-performance safety logic with dual synchronous microprocessors.
- Product Type: Safety System Central Processor
- Key Specs: SIL3 Rated | 1oo2 Architecture | SafeEthernet
- Condition: New Original (New Surplus)
Product Introduction
HIMA X-CPU 01 serves as the high-performance central processor for HIMax safety systems. It handles critical control applications using a 1oo2 dual-microprocessor architecture.
This module manages up to 32 user programs and executes continuous self-tests for fault tolerance. SafeEthernet communication ensures secure data transfer between controllers. Verify with OEM datasheet for exact cycle times, though field performance typically exceeds standard requirements.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Safety Integrity | SIL3 (IEC 61508) |
| Architecture | 1oo2 Dual Microprocessor |
| User Programs | Up to 32 Concurrent |
| Communication | SafeEthernet Protocol |
| Redundancy | Supports 3 Additional CPUs |
| Event Handling | CPU & I/O Event Storage |
| Self-Test | Continuous Hardware Diagnostics |
| Fault Reaction | Safe State / Error Stop |
| System Compatibility | HIMax / HIMatrix |
| Mounting | Connector Board Required |

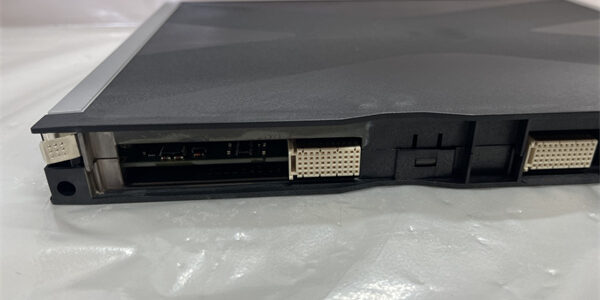

X – CPU 01
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the mode switch for voltage-on behavior. Wrong settings prevent proper startup.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- HIMA X-CPU 01 → HIMA X-CPU 01 : Direct — Identical replacement
- HIMA X-CPU 01 → HIMA X-CPU 31 : Needs Adaptation — X-CPU 31 is for smaller applications, verify program size
- HIMA X-CPU 01 → HIMA F8650X : Incompatible — F8650X is H51q platform, not HIMax
- HIMA X-CPU 01 → HIMA X-COM 01 E : Incompatible — X-COM is a communication module, not a CPU
- Logic Scan Time: < 5 ms (32 Programs, High Load)
- SafeEthernet Throughput: 100 Mbit/s (Redundant Ring)
