Product Core Brief

• Model: 9199-00003 A6210
• Brand: Emerson (CSI / AMS 6500 Series)
• Core Function: Provides precise monitoring for thrust position, differential expansion, and average rod drop in critical rotating machinery.
• Product Type: Dual-Channel Displacement & Position Monitor Module
• Key Specs: 3 Configurable Modes | API 670/618 Compliant | Hot-Swappable | 3U Form Factor
• Condition: New Original / New Surplus

Product Introduction

The EMERSON 9199-00003 is a highly versatile, dual-channel monitor module designed for the AMS 6500 Mechanical Health Monitor. It is engineered to protect critical turbomachinery by continuously measuring axial displacement using non-contact eddy current sensors.

The is uniquely configurable into three distinct operating modes:

1. Thrust Position: Monitors axial shaft movement to prevent catastrophic rotor-to-stator contact. It compares measured positions against alarm setpoints and can trigger relays within 40 milliseconds.
2. Differential Expansion: Measures the relative growth between the turbine casing and the rotor during startup and thermal transients, supporting both series/complementary and taper/ramp measurement modes.
3. Average Rod Drop: Monitors rider band wear in reciprocating compressors by tracking piston rod descent, preventing severe cylinder damage.

Compliant with API 670 and API 618 standards, this hot-swappable module features a compact 3U form factor that reduces cabinet space requirements by 50% compared to traditional 6U cards. It integrates seamlessly with DeltaV and Ovation process automation systems.

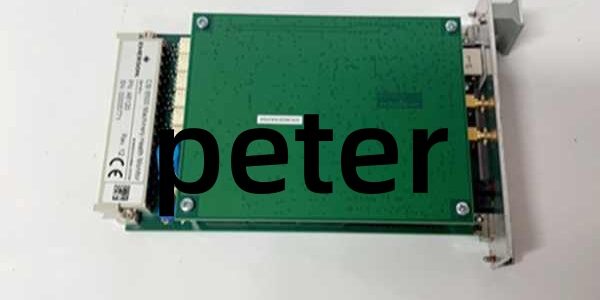

EMERSON 9199-00003 A6210

Key Technical Specifications

• Module Type: Dual-Channel Position/Displacement Monitor
• Form Factor: 3U, 1-Slot Plug-in Module
• Supported Sensors: Eddy Current Proximity Probes (Non-contact)
• Operating Modes: Thrust Position, Differential Expansion, Average Rod Drop
• Compliance: API 670, API 618
• Output: Alarm Setpoint Relays, 4-20mA / Digital Signals
• Software Integration: AMS Machinery Manager, DeltaV, Ovation
• Features: Hot-swappable, Redundant Sensor Support

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification: Verify part number . Inspect the rear Euro-connector and front panel status LEDs for physical damage.
2. Visual Inspection: Check the PCB for corrosion, flux residue, or signs of overheating. Ensure the module slides smoothly into the AMS 6500 chassis.
3. Live Functional Test: Install in the AMS 6500 rack. Verify the module is recognized by the AMS software and the “OK” LED illuminates.
4. Signal Path Test: Inject simulated eddy current probe signals. Verify accurate displacement calculation and confirm that alarm relays trigger correctly at configured setpoints.
5. Final QC & Packaging: Seal in an anti-static bag. Apply a QC Passed label with the date.

Replacement Pitfall Guide

❗ Mode Configuration: The is not pre-configured. You must use the AMS software to select the correct operating mode (Thrust, Diff Exp, or Rod Drop) matching your original system setup.

❗ Sensor Compatibility: This module requires non-contact eddy current proximity probes. Ensure the sensor type, cable length, and system sensitivity match the module’s configuration parameters.

❗ Redundancy & Voting: For critical thrust protection, redundant sensors and voting logic are strongly recommended. Ensure your wiring and software configuration match the required safety integrity level.

❗ Hot-Swapping Safety: While the module is hot-swappable, always verify that the specific machine protection channels are bypassed or safely managed in the DCS/SIS logic before removal to prevent unintended machine trips.

❗ Rod Drop Coefficients: If using the Average Rod Drop mode, verify whether the system uses actual rod drop values or applies a coefficient to represent actual rider band wear. Incorrect coefficients will lead to premature or delayed maintenance alerts.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• → A6250 : Alternative — Use A6250 if Triple Modular Redundancy (TMR) thrust protection is required.
• → A6150 / A6510-T : Complementary — Pair with low-frequency velocity sensors for comprehensive bearing vibration monitoring.
• → A6630 : Complementary — Pair with RTDs/Thermocouples to monitor thrust bearing temperature alongside axial position.
• → AMS 6500 Chassis : System — Requires standard AMS 6500 backplane and power supply.

Benchmarks:

• Thrust Response Time: < 40 ms detection of sudden axial movement
• Space Efficiency: 50% less cabinet space than legacy 6U 4-channel cards

Need me to pull up the matching A6250 TMR Thrust Monitor or the A6150 Vibration Sensor Module to complete your machinery protection setup? Let me know which one you’d like.
