Product Core Brief
- Model: 1C31169G02
- Brand: Emerson (Ovation / Westinghouse)
- Series: Ovation Distributed Control System (DCS)
- Core Function: Provides serial communication links (Modbus RTU) for connecting third-party devices and sub-systems to the Ovation DCS.
- Product Type: Serial Link Controller Module (Data Connection Card)
- Key Specs: Modbus RTU Protocol | RS-485 Interface | Plug-in Module
- Condition: New Original / New Surplus

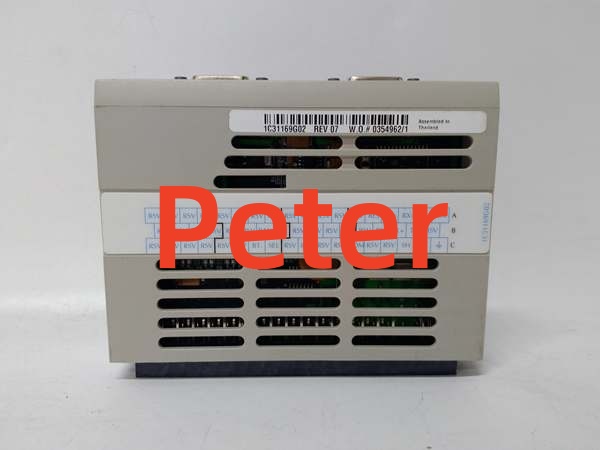

EMERSON 1C31169G02
Product Introduction
The EMERSON 1C31169G02 is a Serial Link Controller Module designed for the Emerson Ovation Distributed Control System. It acts as a critical communication bridge, enabling the Ovation DCS to seamlessly integrate and exchange data with third-party intelligent devices, local control panels, and sub-systems.
Operating primarily via the Modbus RTU protocol over an RS-485 physical interface, this module allows the Ovation controller to poll data from or send control commands to external serial devices. It is an essential component for plant-wide system integration, ensuring that non-native equipment can be effectively monitored and controlled from the central Ovation operator stations.
Key Technical Specifications
- Module Type: Serial Link Controller / Data Connection Card
- System: Emerson Ovation DCS
- Communication Protocol: Modbus RTU
- Physical Interface: RS-485 Serial Bus
- Mounting: Plug-in Ovation I/O Module
- Application: Third-party device integration, serial data acquisition, sub-system communication
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Verify part number 1C31169G02. Inspect the rear Euro-connector pins for bending, corrosion, or missing pins.
- Visual Inspection: Check the front panel for physical damage. Ensure the module is clean, free from flux residue, and shows no signs of overheating or component failure.
- Live Functional Test: Install in an Ovation I/O slot. Verify the module is recognized by the controller and the “OK” LED illuminates.
- Communication Test: Connect an RS-485 test device or Modbus simulator. Use Ovation configuration software to verify successful Modbus RTU polling and data exchange.
- Final QC & Packaging: Seal in an anti-static bag. Apply a QC Passed label with the date.
Replacement Pitfall Guide
❗ Protocol Verification: The 1C31169G02 is specifically configured for Modbus RTU communication. Ensure your third-party device supports this protocol and that the baud rate, parity, and stop bits match the Ovation configuration.
❗ RS-485 Wiring Standards: Serial communication is highly sensitive to wiring. Ensure proper use of shielded twisted-pair cables, correct A/B terminal polarity, and appropriate termination resistors at both ends of the RS-485 bus to prevent signal reflections and data loss.
❗ Module vs. Personality: Verify if this module requires a specific Personality Module (PMOD) to define its exact serial port characteristics. If replacing a failed card, the PMOD from the old card may need to be transferred to the new one.
❗ Slot Position: Verify the slot assignment in the Ovation configuration database. Moving a Serial Link Controller to a different slot without updating the software configuration will break communication with the connected sub-system.
❗ Grounding: RS-485 networks are susceptible to ground loops. Ensure the communication cable shield is properly grounded at one end to prevent noise interference from disrupting the serial link.
Keep these in mind and you’ll cut 90% of rework time.

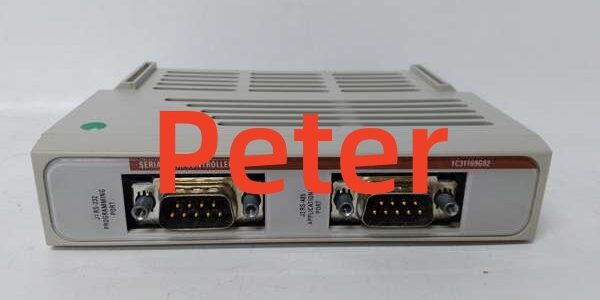

EMERSON 1C31169G02
Compatibility Matrix & Benchmarks
- 1C31169G02 → 1C31166G01 : Alternative/Related — Another Ovation Data Connection/Modbus RTU card variant
- 1C31169G02 → 1B30023H01/H02 : System — Connects to the Ovation I/O Bus (requires proper left/right terminators)
- 1C31169G02 → Ovation DPU : System — Controlled by Ovation Drop Processing Unit via the I/O bus
Benchmarks:
- Communication Protocol: Modbus RTU over RS-485
- Integration: Seamless third-party device polling and control
