Component Snapshot At-a-Glance
- Model: Triconex 3703E; legacy non-upgraded predecessor = base 3703
- Alt. P/N: No alternate factory part number, direct cross is none; downgrade options 3700/3701 non-isolated variants
- Product Series: Tricon 3700E SIL3 TMR I/O chassis family, fits CX/EX/RX Tricon rack slots, mustard-yellow front panel fascia
- Hardware Type: Triple Modular Redundant fully channel-isolated analog input PCB, single-slot hot-swappable rack module
- Key Feature: Per-channel full galvanic isolation rated for 200V peak common-mode surge, built-in continuous overvoltage clamping per input leg
- Primary Field Use: Digitize 4-20mA/DC voltage field transmitter signals for pressure, flow, level SIS safety trip interlocks across process plant safety racks

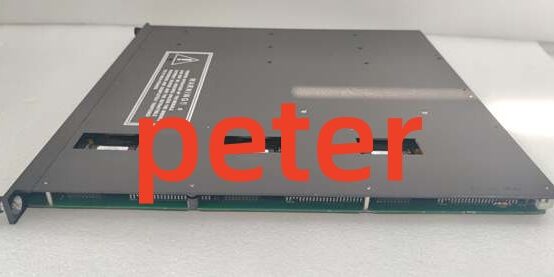

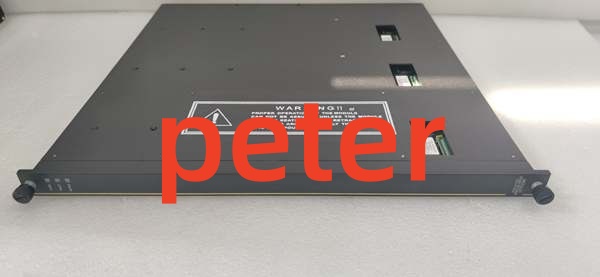

Triconex 3703E
Hard-Numbers: Technical Specifications
- Protocol Support: Exclusive proprietary Tricon TriBus redundant backplane bus; no onboard external fieldbus/ethernet ports
- Port Count: 16 independent galvanically isolated analog input channels per module
- Data Rate: Full-module channel scan = 60ms max cycle, 16-bit ADC per-channel conversion resolution
- Operating Temperature: 0°C ~ +60°C continuous in-cabinet run; -40°C ~ +85°C component storage rating
- Isolation Rating: Channel-to-backplane + channel-to-channel galvanic isolation 1500VAC reinforced, 200V peak common-mode withstand
- Power Draw: 4.0W typical draw at 5VDC backplane feed, ~800mA nominal operating current
- Supported Input Ranges: Software selectable: 4-20mA, 0-20mA, 1-5VDC, 0-10VDC; 250Ω/500Ω onboard precision shunt resistors for mA conversion
- Input Impedance: ≥30MΩ DC per input terminal to limit transmitter loading drift
- Overvoltage Tolerance: Continuous 115VAC/150VDC field-side surge protection without front-end PCB burnout
- Certifications: IEC61508 SIL3, UL Class1 Div2, ATEX Zone2 hazardous area certification
The Real-World Problem It Solves
Unisolated older 3700/3701 AI boards fall victim to cross-wiring ground loops from mismatched field earthing, spiking erratic analog readings that trigger unplanned SIS shutdown trips. Field technicians previously added external signal isolators outside SIL certification boundaries, introducing unapproved single failure points on critical safety loops.Where you’ll typically find it:
- Refinery separator vessel SIS cabinets monitoring high/low level 4-20mA transmitter shutdown interlocks
- Gas plant pipeline pressure safety racks tracking overpressure trip analog transmitters
- Fossil power plant boiler feed pump suction pressure SIS monitoring panelsAll channel isolation embeds inside certified TMR card hardware to eliminate third-party external isolator hardware entirely.
Hardware Architecture & Under-the-Hood Logic
Three fully segregated TMR processing legs hold independent analog front-end and ADC circuitry; zero shared signal traces between redundant branches to contain single-component hardware faults.
- Incoming field mA/DC voltage signals pass dedicated opto-isolation barriers per individual channel to block common-mode ground loop noise before precision shunt conversion.
- Onboard fixed precision shunt resistors convert loop current into scaled DC voltage for the module’s 16-bit ADC chips.
- Each of three redundant TMR legs executes standalone analog-to-digital sampling and user-range scaling math locally on isolated PCB layers.
- Three separate computed engineering values feed internal hardware voter circuit; 2-out-of-3 majority value packages across TriBus backplane to host SIS CPU.
- Per-channel continuous diagnostics flag open transmitter loop, shorted field wiring or overrange signal, driving front-panel individual channel FAULT LED plus TriStation event log alerts.

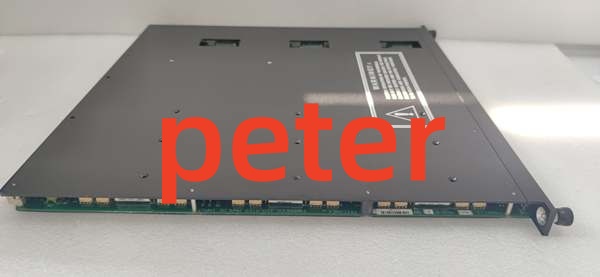

Triconex 3703E
Field Service Pitfalls: What Rookies Get Wrong
Improvised External Shunt Resistors On 4-20mA TerminalsNew field tech adds off-spec external shunt across module terminals instead of using onboard selectable 250/500Ω resistors, mismatched resistance skews full-scale calibration ±3~8% and breaks SIL loop accuracy.
- Field Rule: Toggle TriStation channel setup to switch internal shunt value; no field-installed external shunt allowed on certified SIS loops.
Mixed AC/DC Field Cable Routing Beside AI Terminal BlocksTechnician bundles 120VAC control wiring parallel to 4-20mA analog input cables along same duct, induced EMI creates periodic signal ripple triggering intermittent high/low fault alarms.
- Quick Fix: Separate power and analog cabling by minimum 15cm conduit gap per ISA wiring standards; reroute high-voltage runs away from 3703E marshalling terminals.
Blind Hot-Swap Without Verifying Backplane Bus Health Pre-ChangeoutRookie pulls a live 3703E out mid-process run to swap spare without checking rack backplane bus fault flags, marginal backplane contact corrosion causes adjacent working modules to drop offline temporarily.
- Field Rule: Confirm rack PASS LED solid green and zero active bus faults in TriStation diagnostic screen before executing any live hot-swap replacement.
