Product Core Brief
- Model: 3BHB030310R0001 (5SHY4045L0006)
- Brand: ABB
- Series: ABB ACS Medium Voltage Drives / IGCT Power Semiconductors
- Integration Role: High-voltage, high-current switching device for medium-voltage drive systems, converting and controlling electrical power in industrial applications.
- Product Type: IGCT (Integrated Gate Commutated Thyristor) Module
- Key Specs: 4500V Voltage Rating | 91mm Package Size | Low Conduction & Switching Losses
- Note: Condition: New Original (New Surplus). Origin: Switzerland.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 3BHB030310R0001 |
| Device Model | 5SHY4045L0006 |
| Device Type | IGCT (Integrated Gate Commutated Thyristor) |
| Voltage Rating | 4500V |
| Package Size | 91mm |
| Primary Application | Medium-Voltage Drive Systems (ACS5000/6000) |
| Key Characteristics | Low Conduction Loss, Low Switching Loss, High Reliability |
| Origin | Switzerland |
| Condition | New Original (New Surplus) |
Product Introduction

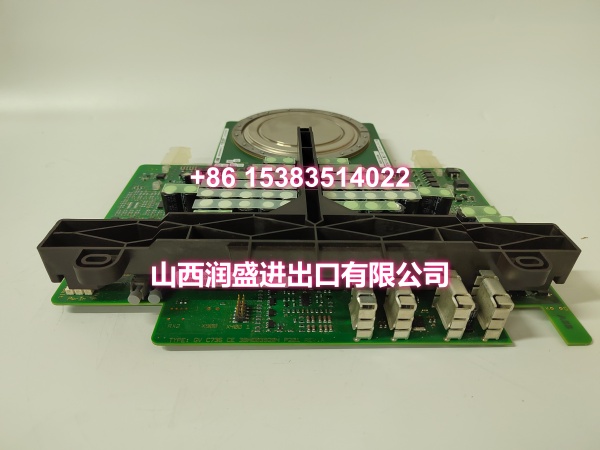

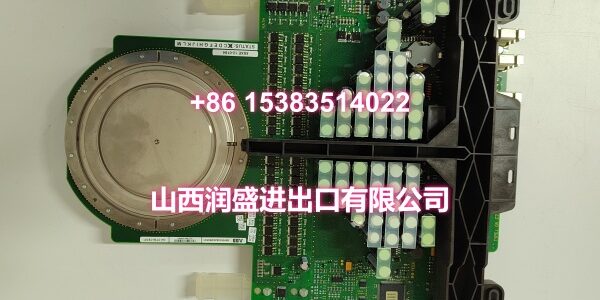

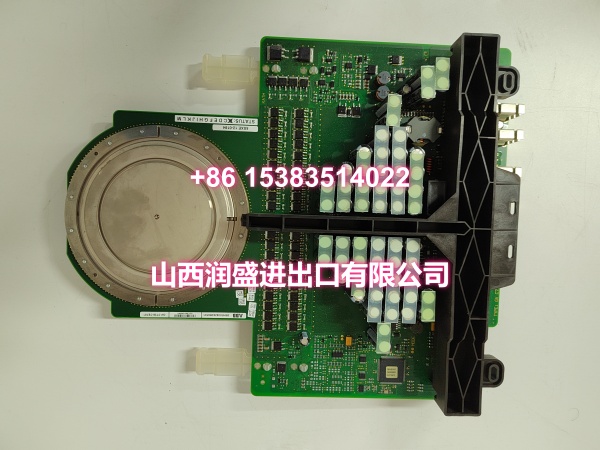

The ABB 3BHB030310R0001 (5SHY4045L0006) is a high-performance IGCT (Integrated Gate Commutated Thyristor) power semiconductor module. IGCT technology, first introduced in 1997, represents an evolution of GTO (Gate Turn-Off) thyristor technology, integrating the gate drive circuit directly with the semiconductor chip in a low-inductance package.
This 4500V, 91mm device is designed for medium-voltage drive systems, particularly ABB’s ACS5000 and ACS6000 series. It offers significantly lower conduction and switching losses compared to traditional GTO devices, while maintaining the high voltage blocking capability and current carrying capacity required for demanding industrial applications such as mining, metallurgy, cement production, and power generation.
For system integrators and maintenance engineers, this module provides the reliability and efficiency needed for continuous operation in harsh industrial environments. Its compact 91mm package facilitates integration into existing drive cabinets, and its Swiss origin ensures adherence to ABB’s stringent quality standards.
Integration & Application Notes
As a power semiconductor device rather than a programmable controller, integration focuses on electrical and thermal considerations.
- System Compatibility: This IGCT module is specifically designed for ABB medium-voltage drive platforms (ACS5000/6000 series). Verify your drive’s hardware configuration and firmware compatibility before replacement.
- Gate Drive Requirements: IGCT devices require specialized gate drive units with very low inductance connections. The gate unit must provide the correct turn-on and turn-off current profiles as specified in the device datasheet. Do not attempt to drive this device with generic gate drivers.
- Thermal Management: Proper heatsinking and cooling are critical. Ensure the thermal interface material is correctly applied and the cooling system (air or liquid) is functioning within specification. Overheating is the primary cause of premature IGCT failure.
- Snubber Circuit: Verify that the snubber circuit (RC absorption network) is properly configured to protect the device from voltage transients during switching. The snubber components must be rated for the operating voltage and frequency.
- Series Connection: If your application requires series-connected devices for higher voltage ratings, ensure proper voltage balancing through matched devices and active or passive balancing circuits.
Integrator’s FAQ
1. Can I replace this IGCT module while the drive is powered? Absolutely not. This is a high-voltage power semiconductor handling thousands of volts and amps. Always follow strict Lockout/Tagout (LOTO) procedures, verify that the DC bus capacitors are fully discharged, and confirm zero voltage before handling the module. Improper handling can result in severe injury or death.
2. What is the difference between IGCT and IGBT, and why does ABB use IGCT in medium-voltage drives? IGCT offers lower conduction losses and higher reliability at medium voltage levels compared to IGBT. While IGBT has faster switching speeds, IGCT’s lower on-state voltage drop results in less heat generation and higher efficiency in high-power, lower-frequency applications typical of medium-voltage drives (e.g., large motors in mining or cement plants). IGCT also has a more robust structure for handling high di/dt and dv/dt conditions.
3. Is this part still available from ABB, and what is the successor? The 5SHY4045L0006 (3BHB030310R0001) is a legacy component used in existing ACS5000/6000 installations. While ABB continues to support these systems, direct OEM lead times can be lengthy. Sourcing New Surplus units is a standard industry practice to maintain these critical assets without undergoing a costly retrofit to newer drive platforms like the ACS880.
4. Will replacing this module require reconfiguration of the drive parameters? No. The IGCT module itself is a passive power semiconductor; it does not store configuration data. Drive parameters are stored in the drive’s control unit. However, after replacement, you should perform a static test and verify gate drive waveforms before re-energizing the drive to full load.
5. What is the warranty difference between New Surplus and Refurbished? We supply this unit as New Original (New Surplus), meaning it is unused, original factory stock from Switzerland, typically still in its anti-static packaging. This comes with a standard 12-month warranty. “Refurbished” power semiconductors carry significant risks: microscopic cracks in the silicon, degraded thermal interfaces, or previous over-stress events that are not visible to the naked eye. Refurbished units often carry short, limited warranties (30-90 days) that do not cover latent defects.
6. Why is the pricing lower than direct OEM but higher than used parts? Our pricing reflects the value of guaranteed, unused condition. Unlike used parts from general marketplaces—which may have unknown operational hours, thermal cycling damage, or hidden defects—our New Surplus inventory is verified for authenticity and Swiss origin. You avoid the premium of custom OEM manufacturing for legacy parts while securing a component that performs like new, minimizing the risk of unplanned downtime in critical medium-voltage drive applications.
