Product Core Brief

• Model: IS415UCVGH1A
• Version: V7666-111000
• Brand: GE (General Electric)
• Series: Mark VIe — Industrial Controller
• Core Function: High-performance controller card for complex industrial automation and control applications across power, energy, and manufacturing sectors.
• Product Type: Industrial Controller Card
• Key Specs: High-performance CPU | Ethernet, serial, USB interfaces | -20°C to 70°C operating range
• Condition: New Original / New Surplus

Product Introduction

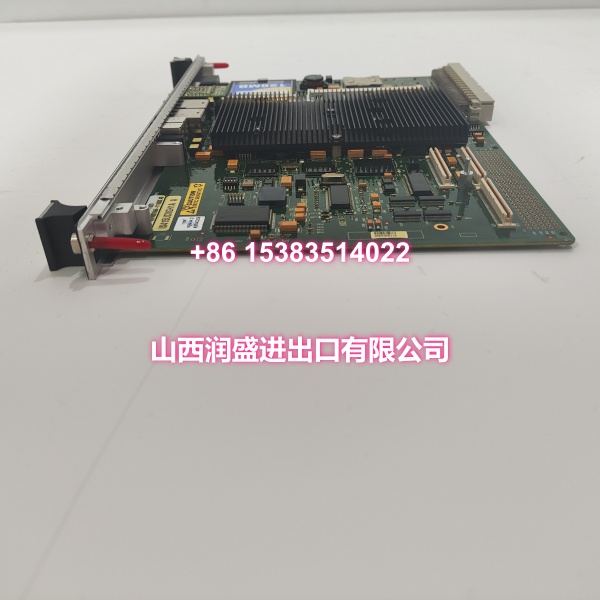

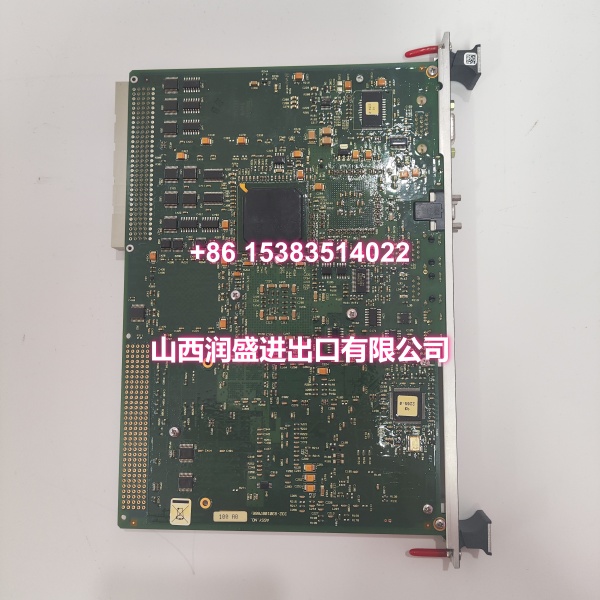

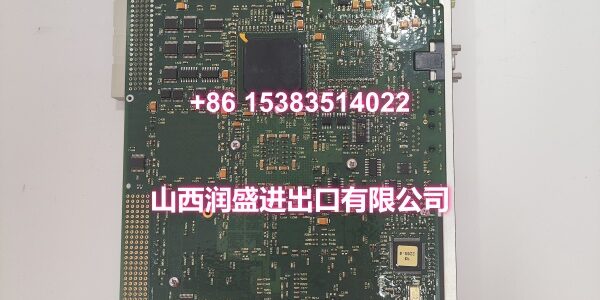

The GE IS415UCVGH1A (V7666-111000) is an industrial controller card designed for GE Mark VIe and other GE industrial control systems. It delivers real-time data processing and multi-tasking capability for demanding automation environments — power generation, oil & gas, heavy manufacturing.

Built with industrial-grade components, this controller tolerates high temperature, humidity, vibration, and EMI. It supports Modbus, TCP/IP, and GE-proprietary communication protocols, with built-in high-capacity memory and external storage expansion. Operating temperature spans -20°C to 70°C, covering most harsh industrial deployments.

Key Technical Specifications

Quality Control Process

Every IS415UCVGH1A controller card goes through a four-stage bench check before shipping. First, visual inspection under magnification catches cold solder joints, cracked traces, and connector pin damage — especially on the Ethernet and serial ports, which see heavy field use. Second, we power up the card on a verified GE Mark VIe rack and confirm the wide-range input voltage circuit reads within spec using a Fluke 87V. Third, we boot the controller with GE’s real-time OS and verify CPU clock speed, memory integrity, and watchdog timer function. Fourth, we exercise all communication interfaces — Ethernet link negotiation, serial loopback, and USB enumeration — confirming data throughput with a packet analyzer. Finally, the card is sealed in anti-static foam with desiccant — no exceptions.

Replacement Pitfall Guide

❗ Firmware version mismatch with V7666-111000. The version suffix is not cosmetic. Loading a controller card with mismatched firmware into an existing Mark VIe rack can cause communication failures with peer controllers and I/O packs. Always verify the firmware label matches your system’s configuration before installation.

❗ Wide-range input voltage tolerance. While the card accepts a broad input range, excessive ripple or transient spikes on the DC bus can cause intermittent resets. Check your power supply with an oscilloscope before blaming the controller — especially in environments with large VFDs or arc furnaces nearby.

❗ Communication protocol configuration. Modbus and TCP/IP settings must match the existing network topology. A mismatched IP address or Modbus slave ID means the controller won’t respond to SCADA polling, and your HMI screens will show communication faults.

❗ External storage compatibility. If your application relies on external storage expansion, verify the storage media type and file system format. Not all SD cards or USB drives are compatible with GE’s real-time OS — and a bad storage device can prevent the controller from booting.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmarks:

• Operating temperature range: -20°C to 70°C (industrial-grade)
• Communication protocols: Modbus, TCP/IP, GE proprietary

Need me to pull up the compatible rack-mount brackets and power supply modules for this controller card? The physical mounting is specific to the Mark VIe cabinet layout.
