Product Core Brief

• Model: IS420PUAAH1A
• Brand: General Electric (GE)
• Series: Mark VIe
• Core Function: Provides 16 independently configurable simplex I/O channels for process and turbine control.
• Product Type: PUAA Universal I/O Pack
• Key Specs: 16 simplex channels | -40°C to 70°C operating range | 10ms frame rate, <0.1% measurement accuracy
• Condition: New Original / New Surplus

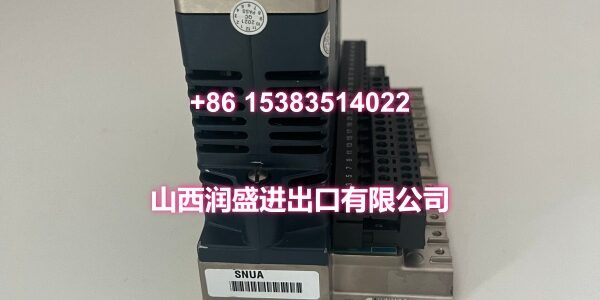

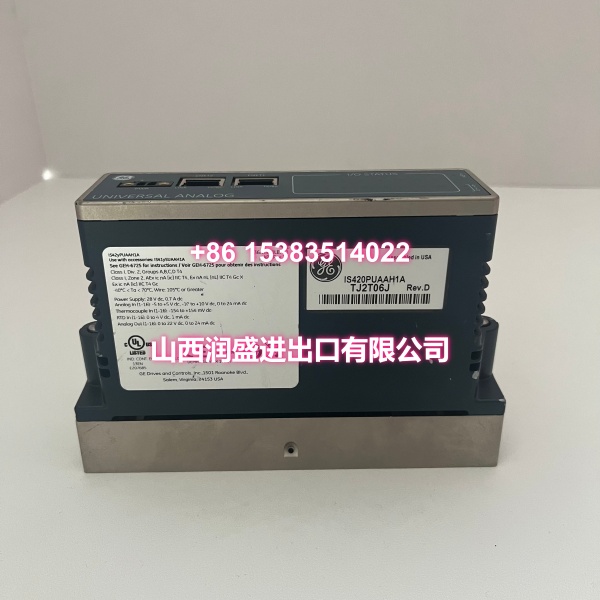

Product Introduction

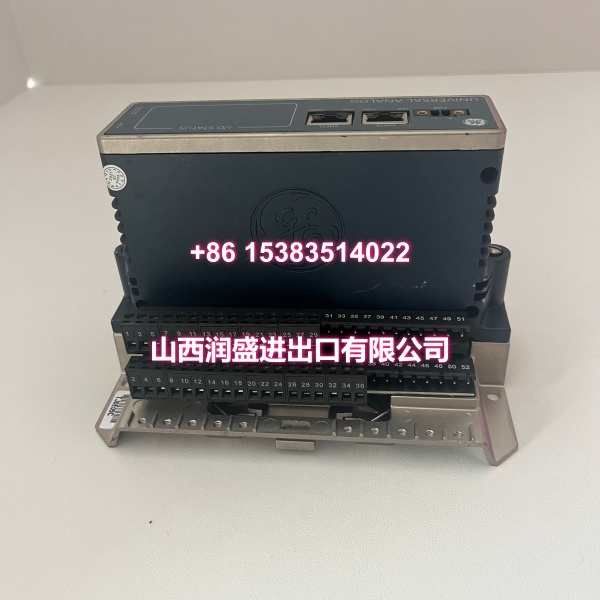

The GE IS420PUAAH1A is a PUAA universal I/O pack within GE’s Mark VIe control system. It provides 16 simplex analog/digital channels that can each be individually configured as thermocouple, RTD, 4-20mA, 0-20mA, 5V/10V, discrete I/O, or pulse accumulator — all on a single board. The independently wireable black terminal block section allows channel-by-channel commissioning without disturbing adjacent circuits.

This module supports a 10ms frame rate with a normal scan time of 5ms and measurement accuracy better than 0.1% across its full temperature range. It’s hot-swappable, supports auto-reconfiguration, and runs on ControlST V07.02.00C or higher with PUAA firmware V05.03.00C+. The dual RJ-45 Ethernet ports connect to redundant IONet networks for deterministic communication with the Mark VIe controller.

Key Technical Specifications

Quality Control Process

Every IS420PUAAH1A goes through a full functional bench test before it ships. We start with a visual PCB inspection — checking for cold solder joints, swollen capacitors, and corrosion on the RJ-45 ports and terminal block contacts. Turbine control rooms see wide temperature swings, and condensation can creep into connectors over time.

Then we power it up on a regulated 24 V DC supply and verify the status LEDs sequence correctly through Power, Boot, and OnLine states. We inject calibrated signals into multiple channels — 4-20mA on one, a Type K thermocouple simulator on another, a 10V DC source on a third — and verify the digitized readings against expected values with a Fluke 754 process calibrator. We also test the dual RJ-45 ports for link negotiation and packet throughput, confirm the HART communication option on applicable channels, and verify the auto-reconfiguration function by removing and reseating the pack while powered. Each unit ships in anti-static foam with a moisture barrier bag.

Replacement Pitfall Guide

❗ Verify your ControlST and firmware versions before installation. The IS420PUAAH1A requires ControlST V07.02.00C or higher and PUAA firmware V05.03.00C or higher. Running it on older software will cause recognition failures or incorrect channel scaling — and the error messages won’t always point you in the right direction.

❗ Check per-channel power budget before adding channels. Static power draw is 8.1 W, but each channel adds 0.02 W to 0.68 W depending on configuration. A fully loaded pack with 16 internally fed 4-20mA outputs can draw over 19 W total. If your backplane power supply is near its limit, adding a fully configured pack can cause brownouts on adjacent modules.

❗ Confirm channel configuration matches your field wiring. Each of the 16 channels is independently configurable — but if the software says “4-20mA input” and your field device is wired as a thermocouple, you’ll get garbage readings. Always export the current I/O map from ToolboxST/ControlST before swapping and compare channel-by-channel against your loop diagrams.

❗ Don’t skip the auto-reconfiguration verification. After installing a replacement pack, the Mark VIe controller should automatically reconfigure it from the stored I/O map. If auto-reconfig fails, the pack will sit in a fault state. Verify the OnLine LED is solid and check the controller diagnostics for any reconfiguration errors before closing the panel.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Measurement Accuracy: < 0.1% across full operating temperature range
• Frame Rate: 10ms configurable, 5ms normal scan time
