Product Core Brief
- Model: SAI143-S53/A4S00
- Brand: YOKOGAWA
- Series: ProSafe-RS / CENTUM CS3000
- Core Function: Receives and isolates sixteen 4-20mA analog signals for safety and control.
- Product Type: Analog Input Module
- Key Specs: 16 Channels | 4-20mA DC | Pressure Clamp Terminal (STA4S-00)
- Condition: New Original / New Surplus
Product Introduction

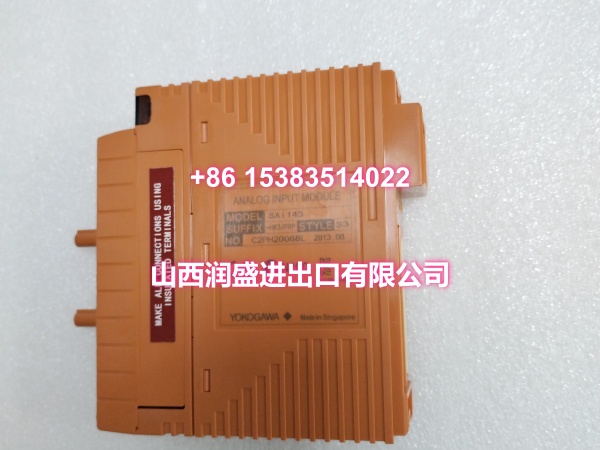

YOKOGAWA SAI143-S53/A4S00 analog input modules serve as the critical safety interface for field transmitters. This industrial automation unit provides sixteen fully isolated channels for reliable 4-20mA signal acquisition.
The YOKOGAWA SAI143-S53/A4S00 includes the /A4S00 option, meaning it ships with a pressure-clamp terminal adapter (STA4S-00). This specific replacement module saves procurement time by bundling the exact wiring interface needed for rapid field installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Signal | 4-20 mA DC |
| Number of Channels | 16 (Fully Isolated) |
| Module Type | Standard (-S53) |
| Wiring Interface | Pressure Clamp Terminal |
| Adapter Model | STA4S-00 (/) |
| Safety Certification | SIL3 (Single Module Architecture) |
| Operating Temperature | -20°C to 70°C (ISA G3) |
| Power Supply | 24 VDC (from ModuleBus) |
| HART Pass-Through | Supported (Standard Type) |
| System Compatibility | ProSafe-RS / CENTUM CS3000 |
Quality Control Process
Every YOKOGAWA SAI143-S53/A4S00 undergoes strict hardware validation before shipping. We first inject precise 4-20mA signals into all sixteen channels using calibrated process simulators to verify scaling and accuracy. Next, technicians use a Megger to test the isolation resistance between the ModuleBus and the input stages.
We also verify the included STA4S-00 pressure-clamp adapter by checking the mechanical seating and pinout continuity. The module is then powered up on a safety test rack to confirm stable node communication. Finally, the unit is sealed in anti-static packaging to protect the sensitive logic during transit.
Replacement Pitfall Guide
❗ Never mix up the terminal adapter suffix codes. The /A4S00 specifically uses the STA4S-00 pressure-clamp adapter. If your panel requires a MIL cable connector, you must order the /CCC01 variant instead.
❗ Verify the module isolation groups. Remember that all sixteen channels share module isolation. Grounding multiple channels to different earth potentials will cause ground loops and erratic readings.
❗ Check the HART pass-through limitations. While this standard module supports HART, it only allows point-to-point communication. Do not attempt to daisy-chain multiple HART devices on a single channel.
❗ Mind the ISA G3 temperature limits. This module is rated for -20°C to 70°C. Installing it in an unventilated enclosure exceeding this limit will trigger thermal derating and potential safety trips.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level (Direct/Needs Adaptation) | Migration Notes |
|---|---|---|---|
| YOKOGAWA / | Direct | Drop-in replacement with included STA4S-00 adapter | |
| SAI143-S63 | YOKOGAWA / | Needs Adaptation | Different wiring interface; requires terminal board swap |
| SAI143-SE3 | YOKOGAWA / | Needs Adaptation | Downgrading from explosion-proof to standard |
- Safety Integrity Level: Single module SIL3 certification simplifies safety architecture design.
- Channel Density: 16 fully isolated channels per module, maximizing backplane utilization for safety systems.
