Product Core Brief
- Model: AAI143-H50/A4S00
- Brand: YOKOGAWA
- Series: CENTUM CS3000 / R3
- Core Function: 16-channel isolated analog input module with HART protocol support for smart transmitter communication.
- Product Type: Analog Input Module
- Key Specs: 16 Channels | 4-20mA DC | HART Protocol | Pressure Clamp Terminal
- Condition: New Surplus / Original
Product Introduction

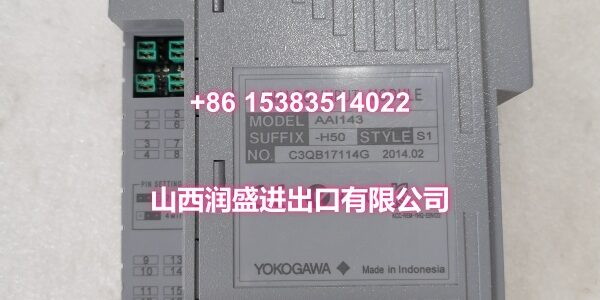

YOKOGAWA AAI143-H50/A4S00 is a 16-channel analog input module for CENTUM CS3000 systems. This YOKOGAWA / card accepts standard 4-20mA signals while enabling bidirectional HART communication with smart field devices for remote diagnostics and calibration.
The “/A4S00” suffix includes the ATA4S-00 pressure clamp terminal adapter for fast, reliable field wiring. The YOKOGAWA / provides channel-to-channel isolation and supports both 2-wire and 4-wire transmitter configurations on a per-channel basis.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Analog Input Module |
| Number of Channels | 16 Points |
| Input Signal | 4-20 mA DC |
| Digital Communication | HART Protocol |
| Isolation | Channel-to-Channel / Channel-to-Bus |
| Wiring Type | 2-Wire / 4-Wire (Per Channel Configurable) |
| Terminal Adapter | Pressure Clamp (ATA4S-00) Included |
| Compatible System | CENTUM CS3000 R3 |
| Power Supply | 24V DC (External) |
| Accuracy | ±0.1% of span |
| Data Refresh Cycle | 10ms |
| Diagnostics | Open Wire / Overrange / Underrange |
Quality Control Process
Every YOKOGAWA / undergoes comprehensive bench testing before shipment. We inject precision 4-20mA signals at 0%, 25%, 50%, 75%, and 100% across all 16 channels to verify linearity and accuracy. Channel-to-channel isolation is tested with a megger to confirm no cross-talk. HART communication is validated by connecting a HART communicator to verify device discovery, variable reading, and trim commands. The pressure clamp terminal adapter is inspected for proper contact pressure and pin continuity. Finally, we perform a 4-hour thermal burn-in to catch infant mortality failures. Units with any deviation are quarantined.
Replacement Pitfall Guide
❗ Verify Suffix Compatibility: The “-H50” suffix indicates HART protocol with standard switching response and no explosion-proof rating. Do not substitute with “-S50” (standard, no HART) or “-HE0” (explosion-proof) without verifying system configuration. Mismatched suffixes cause communication failures or safety violations.
❗ Pressure Clamp Terminal Seating: The “/A4S00” adapter uses pressure clamp connections. Ensure wires are fully inserted before tightening. Partially seated wires cause intermittent signal loss that mimics sensor failure. Always perform a gentle pull test after installation.
❗ 2-Wire vs 4-Wire Configuration: This module supports both wiring types, but each channel must be configured correctly in the DCS engineering tool. Wiring a 2-wire transmitter into a 4-wire configured channel will result in no power to the device and zero signal.
❗ HART Polling Load: HART communication adds bus loading. Verify your DCS controller can handle the polling rate for all HART-enabled channels. Excessive polling slows scan cycle times and may cause communication timeouts.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| / | / | Direct | Exact match; verify firmware revision |
| / | Direct | Base model; /A4S00 adds pressure clamp terminal | |
| AAI143-H53 | / | Needs Adaptation | H53 has ISA G3 option and extended temp range; verify environmental requirements |
| AAI143-S50 | / | Not Compatible | S50 is standard 4-20mA only; no HART support |
- Data Refresh Cycle: 10ms
- HART Response Time: < 500ms per device (typical)
