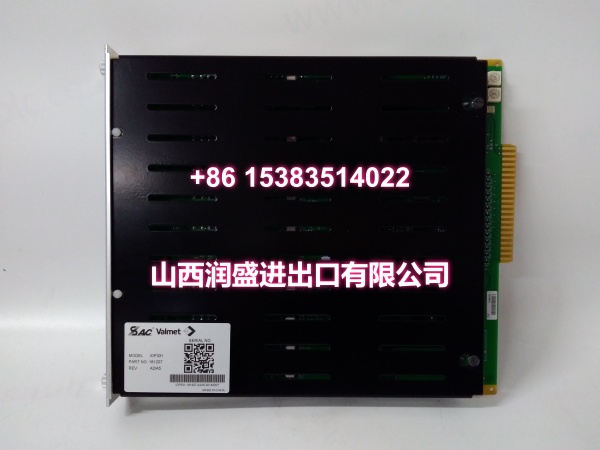

Product Core Brief
- Model: IOP331
- Brand: Metso
- Series: IOP300 Series I/O
- Core Function: Drives discrete field devices like solenoids, relays, and motor starters from DCS logic.
- Product Type: Digital Output Module
- Key Specs: 24VDC Sinking/Sourcing | 16 Channels | Galvanic Isolation
- Condition: New Original / New Surplus
Key Technical Specifications
- Module Type: Digital Output (DO)
- Product ID:
- Signal Types: 24VDC Sinking/Sourcing
- Channel Count: 16 Channels
- Isolation: 500V Galvanic Isolation
- Update Rate: <10ms
- Operating Temp: -20°C to +70°C
- Backplane: IOP300 Series compatible
- Diagnostics: Short Circuit / Open Load Detection
- Load Current: 0.5A per channel max
Product Introduction
Positioned in the IOP300 series rack, this module translates CPU commands into discrete 24VDC signals for field actuators. It provides the current drive and protection needed for reliable control of motors, valves, and indicators.
Maintenance teams depend on the per-channel isolation to prevent a shorted solenoid from taking out the entire module. The built-in diagnostics detect shorts and open loads at the terminal block, cutting troubleshooting time during upset conditions.
QA & Testing SOP (Dynamic & Transparent)
Every Metso IOP331 undergoes rigorous digital validation before shipping. We start with a visual inspection under magnification, checking for cold solder joints or flux residue that indicates field repair. Then we test all 16 output channels by switching loads and verifying state changes in the status register.
Next, we test the output drivers by measuring voltage drop across the FETs under load. We also simulate short circuits to confirm the protection circuitry trips correctly without damaging the module. Units ship in anti-static foam with a test certificate showing pass/fail for each channel.
Installation Pitfalls & Guide
❗ Output Load Sizing: The 0.5A per channel limit is real. If you’re driving a large solenoid or relay coil, check the inrush current. A 2A inrush can trigger the protection circuit even if the steady-state draw is 200mA. Use an interposing relay for high-current loads.
❗ Wiring Polarity: This module supports both sinking and sourcing, but you must configure it correctly in software. Wiring a sourcing output to a sinking input without proper termination will cause erratic behavior. Check the DIP switches or software config before applying power.
❗ Backplane Power Draw: Digital output modules draw significant 24VDC when outputs are energized. If you’re driving multiple solenoids, calculate the total load. A sagging 24V rail can cause outputs to drop out or chatter.
Replacement SOP:
- Pre-Install: Tag every wire; photograph the terminal layout before pulling.
- Removal: Release the top and bottom latches simultaneously; pull straight out.
- Install: Verify the keying tab aligns; push until you hear the dual click.
- Power-On: Apply backplane power; wait for the “Module OK” LED before enabling outputs.
Technical FAQ
Q: Can I mix IOP331 and IOP330 modules in the same rack?
A: Yes, the IOP300 backplane supports mixed digital input and output cards. Just ensure your configuration software matches the slot assignment to the physical card type. The backplane doesn’t auto-detect; you have to tell it what’s where.
Q: Why is my output flickering even with a solid command?
A: Check for ground loops. If the field ground and module ground aren’t at the same potential, you’ll see noise on the outputs. Verify your shield grounding and ensure the 24VDC supply is properly referenced. Also check for loose terminal connections.
Q: Is this module compatible with third-party DCS systems?
A: The IOP331 is designed for Metso DCS backplanes. While the digital signals are standard, the backplane communication protocol is proprietary. You can’t plug this into a Siemens or Allen-Bradley rack without a gateway. Stick to the OEM ecosystem for this card.
Q: What does the “Short Circuit” diagnostic actually detect?
A: It monitors the output current. If it exceeds 0.6A, the module flags a short and shuts down that channel to prevent damage. Note: It won’t detect an open load—that just reads as “output off but no current.” You need a separate open-wire test for that.
Q: Do I need to configure the channel type?
A: Yes. The IOP331 channels may need configuration for sinking vs. sourcing logic depending on your field device. Make sure you set the configuration correctly before applying power. Incorrect configuration can cause false outputs or, in rare cases, damage the output circuitry.
