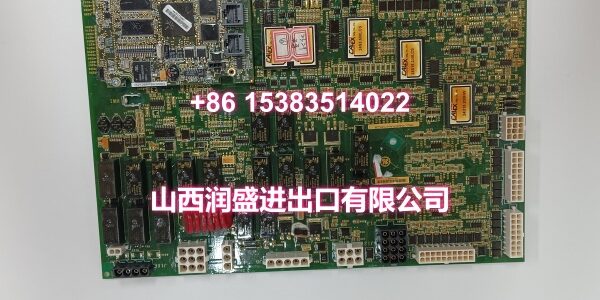

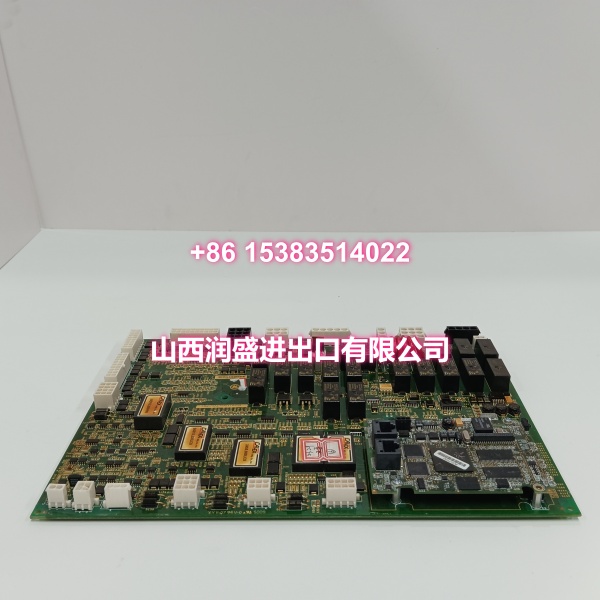

Product Core Brief
- Model: IS200AEPAH1ACB
- Brand: GE
- Series: Mark VI / Mark VIe Speedtronic
- Core Function: Regulates excitation current and amplifies power for turbine generators.
- Product Type: Excitation Power Control Board
- Key Specs: 24 VDC Input | ±10A Continuous Output | CAN/RS-485 Comms
- Condition: New Original / New Surplus
Product Introduction
GE is an excitation power control board for the Mark VI and Mark VIe turbine control systems. It provides closed-loop current regulation and power amplification for generator excitation.
This industrial automation unit delivers ±10A continuous output with a 30-second overload capacity of ±15A. It operates reliably across a wide -30°C to +70°C temperature range.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| System Platform | Mark VI / Mark VIe |
| Core Function | Excitation Current Regulation |
| Nominal Input | 24 VDC (±20%) |
| Continuous Output | ±10 A |
| Overload Output | ±15 A for 30 Seconds |
| Communication | Internal CAN / RS-485 |
| Status Indication | 6 LED Bar Graphs |
| Operating Temp | -30°C to +70°C |
| Protection | Short-Circuit, Thermal Foldback |
Quality Control Process
Excitation boards demand precise electrical validation. We start by inspecting the IGBTs and gate drivers for thermal stress or physical damage under magnification. Next, the replacement module goes on a 24VDC test bench. We verify the 16-bit control DAC output and measure the H-bridge switching waveforms using an oscilloscope. Then, we simulate a thermal foldback scenario to confirm the protection circuitry trips at the 85°C junction threshold. Finally, we test the CAN/RS-485 link integrity and pack it in anti-static shielding.
Replacement Pitfall Guide
❗ Thermal Foldback Threshold: This board features thermal foldback protection that begins at an 85°C junction temperature. If your control cabinet lacks adequate airflow, the board will continuously derate its output. Verify cabinet cooling before racking.
❗ CAN Bus Termination: The internal CAN/RS-485 link requires proper termination. Missing or double termination on the excitation bus causes communication timeouts with the Mark VIe controller. Check the termination jumpers immediately.
❗ Field Wiring Isolation: The board provides 2.5 kV power-to-logic isolation and 500 V field-to-chassis isolation. Never bypass this isolation by sharing ground paths with non-isolated field devices. Ground loops will destroy the IGBT stage.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level (Direct/Needs Adaptation) | Migration Notes |
|---|---|---|---|
| Direct Drop-In | Verify CAN bus termination settings | ||
| IS200AEPAH1B | Needs Adaptation | Check firmware revision for Mark VIe |
- Output Resolution: 16-bit control DAC for precise excitation
- Protection Response: Thermal foldback initiates at 85°C junction
