Product Core Brief
- Model: ABB PM904F 3BDH001002R0001
- Brand: ABB
- Series: Freelance AC 900F
- Core Function: High-capacity central processing and multi-protocol communication for distributed control.
- Product Type: Plus CPU Module
- Key Specs: 800 MHz Clock | 48 MB Memory | 4x Comm Slots
- Condition: New Surplus / Refurbished

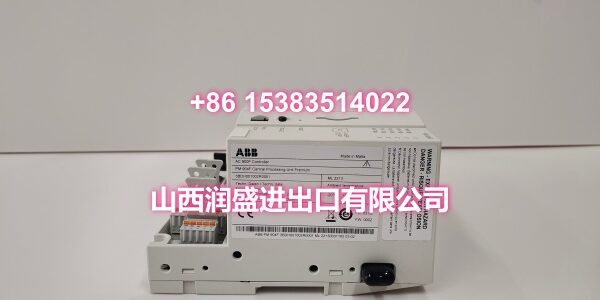

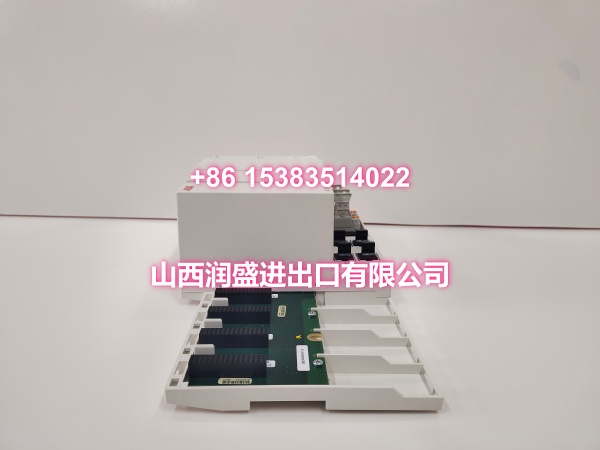

ABB PM904F 3BDH001002R0001
Product Introduction
ABB 3BDH001002R0001 serves as the high-end processing core for Freelance AC 900F distributed control systems. This industrial automation unit handles complex multi-tasking logic, fast cycle times, and extensive fieldbus integration.
The replacement module features an 800 MHz Power PC processor and 48 MB of controller memory. It supports up to 1500 I/O points and includes four dedicated slots for PROFIBUS or CAN communication interface modules.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Processor Type | Power PC (II Pro Family) |
| Processor Clock | 800 MHz |
| Controller Memory | 48 MB (16 MB Battery Buffered + 32 MB DRAM) |
| Ethernet Interfaces | 4x 10/100 Mbps RJ45 |
| Serial Interfaces | 2x (RS-232/RS-485, Modbus/Telecontrol) |
| Comm Module Slots | 4x (PROFIBUS / CAN) |
| Max Direct I/O | 10 S700 Modules |
| Max System I/O | Up to 1500 Points |
| Input Voltage | 24 Vdc (External) |
| Product Series | Freelance AC 900F Plus |
Quality Control Process
We verify every ABB 3BDH001002R0001 through a strict five-step protocol. First, technicians inspect the PCB for oxidation or capacitor leakage. Next, we perform a Power-On Self-Test (POST) in a test rack.
Third, a Fluke multimeter checks input ripple below 5%. Fourth, we validate firmware versions and SD card readability. Finally, we seal the unit in anti-static packaging with bubble cushioning.

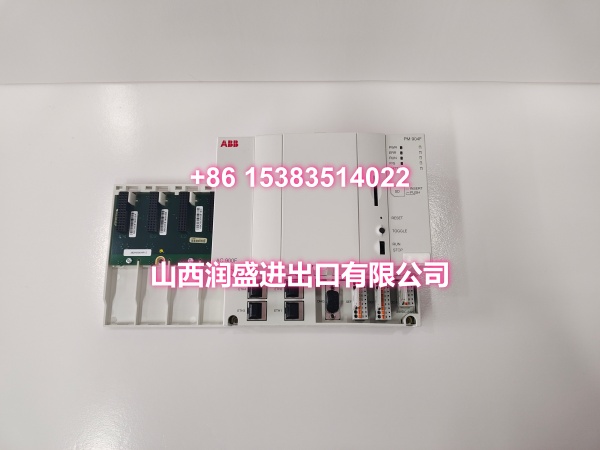

ABB PM904F 3BDH001002R0001
Replacement Pitfall Guide
❗ Missing Operating System: This CPU ships without an OS. You must load the operating system via SD card or ControlBuilder F during installation. A blank module will not boot on its own.
❗ Software Version Lock: This module strictly requires Freelance software version 2019 or higher. Older versions will not recognize the hardware. Always check your engineering station version first.
❗ Battery Buffer Check: This unit features 16 MB of battery-buffered SRAM. If replacing a failed unit, verify the new module’s battery is healthy to prevent loss of retentive data during power cycles.
❗ ESD Negligence: These boards are static-sensitive. Touching gold fingers without a wrist strap causes intermittent communication failures. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 3BDH001002R0001 | PM902F | Needs Adaptation | Lower memory (24 MB); only 2 comm slots. |
| 3BDH001002R0001 | (New Surplus) | Direct | Verify firmware and OS version match exactly. |
- Performance Benchmark: 800 MHz CPU handles fast cyclic tasks (down to 5 ms) and event-driven logic efficiently.
- Memory Benchmark: 48 MB total RAM supports extensive program storage and large-scale data buffering.
