Product Core Brief

• Model: ABB PM891K01 3BSE053241R1
• Brand: ABB
• Series: AC 800M / 800xA
• Core Function: High-performance redundant processing and S800 I/O bus control for complex automation.
• Product Type: Redundant Processor Unit
• Key Specs: 450 MHz MPC8270 | 256 MB RAM | CPU Redundancy
• Condition: New Surplus / Refurbished

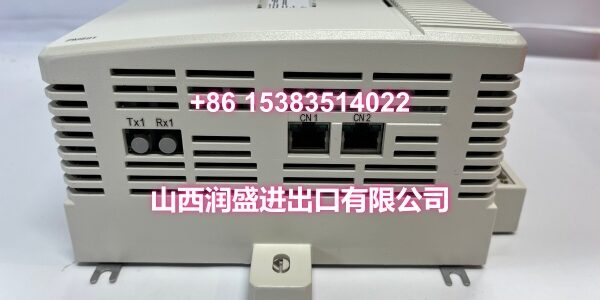

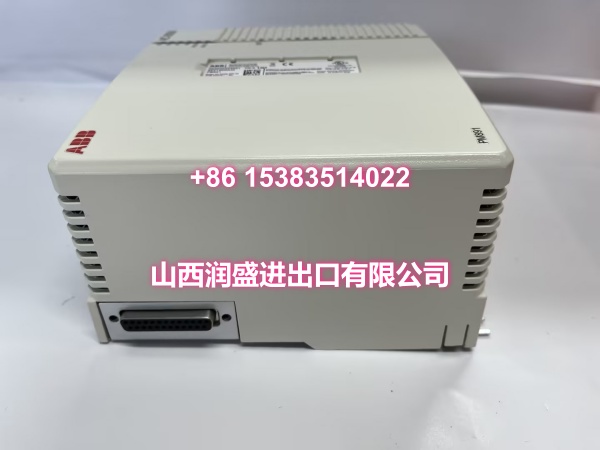

ABB PM891K01 3BSE053241R1

Product Introduction

ABB 3BSE053241R1 serves as the high-performance core for AC 800M automation systems. This industrial automation unit processes critical IEC 61131-3 logic while managing hot-standby failover to prevent unplanned downtime.

The replacement module features a 450 MHz MPC8270 processor and 256 MB of application RAM. It operates on 24 Vdc and executes 1000 boolean operations in just 0.043 ms, ensuring rapid response in demanding panels.

Key Technical Specifications

Quality Control Process

We verify every ABB 3BSE053241R1 through a strict five-step protocol. First, technicians inspect the PCB for oxidation or capacitor leakage. Next, we perform a Power-On Self-Test (POST) in a test rack.

Third, a Fluke multimeter checks input ripple below 5%. Fourth, we validate firmware versions and redundant synchronization states. Finally, we seal the unit in anti-static packaging with bubble cushioning.

Replacement Pitfall Guide

❗ Software Version Lock: This CPU only supports 800xA version 6.0.2 and higher. Installing it in an older system will result in a complete failure to communicate. Always verify your Control Builder M version first.

❗ Redundancy Sync Failures: This OEM controller relies on precise synchronization between primary and secondary units. I once saw a system fail to failover because the redundant sync cable was loosely seated during replacement. Always verify the CEX-Bus connections.

❗ SD Card vs. CF Card: Unlike older AC 800M CPUs, this module uses an SD card for non-volatile storage, not CompactFlash. Forcing a CF card into the slot will damage the connector. Check the slot type before inserting media.

❗ ESD Negligence: These boards are static-sensitive. Touching gold fingers without a wrist strap causes intermittent bus failures. Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Performance Benchmark: 0.043 ms per 1000 boolean instructions ensures ultra-fast logic execution.
• Memory Benchmark: 256 MB RAM supports extensive program and data storage for complex applications.
