Product Core Brief
- Model: ABB PM864AK01 3BSE018161R1
- Brand: ABB
- Series: AC 800M / 800xA
- Core Function: High-availability redundant processing and S800 I/O bus control.
- Product Type: Redundant Processor Unit
- Key Specs: 96 MHz Clock | 32 MB RAM | CPU Redundancy
- Condition: New Surplus / Refurbished

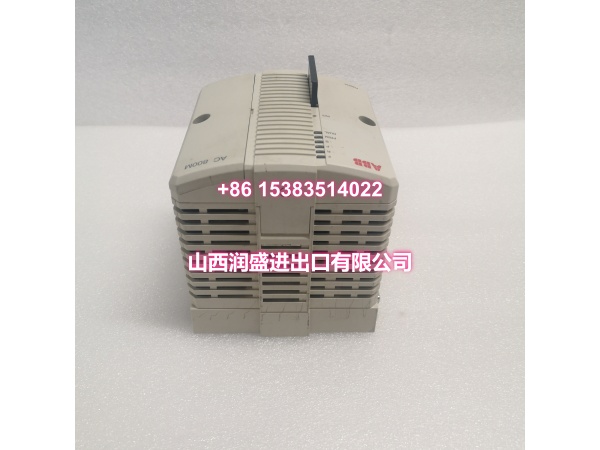

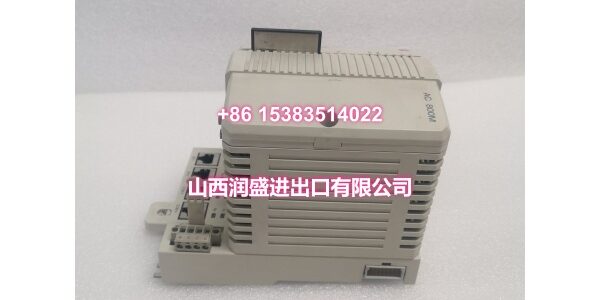

Product Introduction
ABB 3BSE018161R1 serves as the high-availability core for AC 800M automation systems. This industrial automation unit processes critical IEC 61131-3 logic while managing hot-standby failover.
The replacement module features a 96 MHz processor and 32 MB of application RAM. It operates on 24 Vdc and utilizes a unique slide-and-lock DIN rail mechanism for secure, rapid installation in compact panels.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Processor Clock | 96 MHz |
| Boolean Performance | 0.15 ms / 1000 instructions |
| Redundancy Support | CPU, CEX-Bus, Comm, S800 I/O |
| Application RAM | 32 MB |
| Storage Interface | CompactFlash |
| Ethernet Ports | 2x RJ45 (CN1, CN2 Control Network) |
| Serial Ports | 2x RJ45 (COM3 RS-232C, COM4 Isolated) |
| Input Voltage | 24 Vdc |
| Mounting Type | DIN Rail (Slide & Lock) |
| Product Series | AC 800M / 800xA |
Quality Control Process
We verify every ABB 3BSE018161R1 through a strict five-step protocol. First, technicians inspect the PCB for oxidation or capacitor leakage. Next, we perform a Power-On Self-Test (POST) in a test rack.
Third, a Fluke multimeter checks input ripple below 5%. Fourth, we validate firmware versions and redundant synchronization states. Finally, we seal the unit in anti-static packaging with bubble cushioning.
Replacement Pitfall Guide
❗ Order Code Confusion: Never assume PM862K02 and are interchangeable. The features a faster 96 MHz clock and 32 MB RAM, whereas the PM862K02 runs at 67 MHz with 4 MB Flash. Always verify the exact 3BSE order code on the label.
❗ Redundancy Sync Failures: This OEM controller relies on precise synchronization between primary and secondary units. I once saw a system fail to failover because the redundant sync cable was loosely seated during replacement. Always verify the CEX-Bus connections.
❗ Serial Port Misconfiguration: COM3 is an RS-232C port with modem control signals, while COM4 is isolated for configuration tools. Plugging your laptop into the wrong port will result in zero communication. Photograph the wiring before removal.
❗ ESD Negligence: These boards are static-sensitive. Touching gold fingers without a wrist strap causes intermittent bus failures. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 3BSE018161R1 | PM862K02 | Needs Adaptation | Lower performance; requires project recompile. |
| 3BSE018161R1 | (New Surplus) | Direct | Verify firmware and redundancy config match exactly. |
- Performance Benchmark: 0.15 ms per 1000 boolean instructions ensures fast logic execution.
- Availability Benchmark: Full CPU and CEX-Bus redundancy ensures zero-downtime failover.
