Product Core Brief
- Model: ABB PM856AK01 3BSE066490R1
- Brand: ABB
- Series: AC 800M / 800xA
- Core Function: Central processing and S800 I/O bus control for AC 800M systems.
- Product Type: Processor Unit
- Key Specs: 400 MHz PowerPC | 32 MB RAM | Dual Ethernet
- Condition: New Surplus / Refurbished
Product Introduction

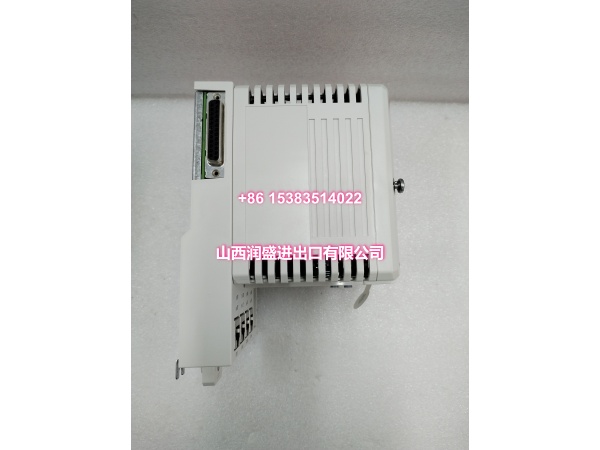

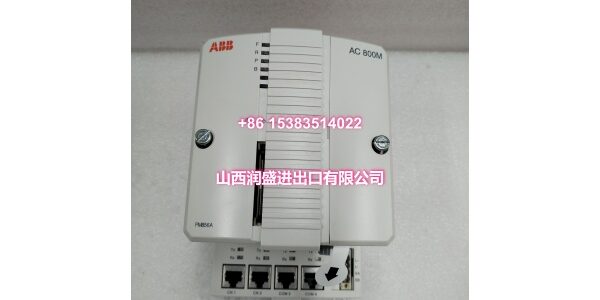

ABB 3BSE066490R1 serves as the logical heart for AC 800M automation systems. This industrial automation unit processes IEC 61131-3 logic while managing S800 I/O communications.
The replacement module features a 400 MHz PowerPC processor and 32 MB of application RAM. It operates on 24 Vdc with a max power draw of 12 W, ensuring reliable performance in compact panels.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Processor Clock | 400 MHz |
| Boolean Performance | 0.1 ms / 1000 instructions |
| Application RAM | 32 MB |
| Storage Flash | 16 MB |
| Ethernet Ports | 2x RJ45 (10/100 Mbps, LAN1/LAN2) |
| Serial Ports | 1x RS-232C (Service/Modem) |
| Input Voltage | 24 Vdc (19.2-30 Vdc) |
| Max Power Consumption | 12 W |
| Operating Temp | 0 °C to +60 °C |
| Product Series | AC 800M / 800xA |
Quality Control Process
We verify every ABB 3BSE066490R1 through a strict five-step protocol. First, technicians inspect the PCB for oxidation or capacitor leakage. Next, we perform a Power-On Self-Test (POST) in a test rack.
Third, a Fluke multimeter checks input ripple below 5%. Fourth, we validate firmware versions and Ethernet port configurations. Finally, we seal the unit in anti-static packaging with bubble cushioning.
Replacement Pitfall Guide
❗ Firmware Mismatch: Never assume identical models share firmware. AC 800M versions are sensitive; mismatches cause “Hardware Mismatch” faults. Always photograph the old label first.
❗ Ethernet Port Misconfiguration: This OEM controller uses LAN1 for the engineering station and LAN2 for the plant network. I once saw an engineer spend hours troubleshooting because they plugged the config laptop into the wrong port. Photograph the setup before removal.
❗ S800 Bus Address Conflicts: Old S800 I/O addresses can conflict with new hardware. Check the bus connector before energizing this industrial automation unit. Bad terminations cause silent data loss.
❗ ESD Negligence: These boards are static-sensitive. Touching gold fingers without a wrist strap causes intermittent communication failures. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 3BSE066490R1 | PM851AK01 | Needs Adaptation | Lower performance; requires project recompile. |
| 3BSE066490R1 | (New Surplus) | Direct | Verify firmware and port config match exactly. |
- Performance Benchmark: 0.1 ms per 1000 boolean instructions ensures fast logic execution.
- Memory Benchmark: 32 MB RAM supports extensive program and data storage.
