Product Core Brief

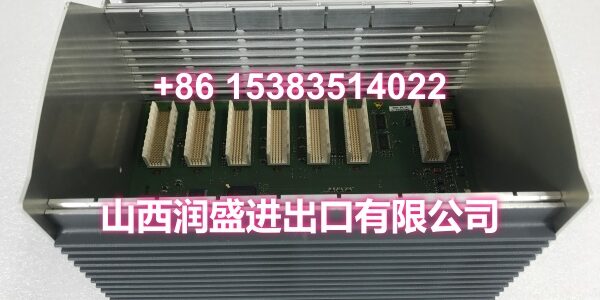

• Model: ABB PM803F 3BDH000530R1
• Brand: ABB
• Series: AC800F / Freelance 800F
• Core Function: Central processing unit for distributed process control
• Product Type: Base Unit / CPU Module
• Key Specs: 16 MB RAM | Battery Buffered | No Internal OS
• Condition: New Surplus / Original Sealed

Product Introduction

ABB 3BDH000530R1 is the high-memory successor to the PM802F for Freelance 800F systems. This OEM controller executes complex logic while retaining critical data via battery backup.

The replacement module packs 16 MB of RAM, doubling the capacity of older units. It requires ControlBuilder F V7.1SP2a or higher for operation. This industrial automation unit ships without an OS; you must load it during commissioning.

Key Technical Specifications

Quality Control Process

We don’t just ship surplus stock blindly. Every ABB 3BDH000530R1 unit undergoes a rigorous bench test. First, we inspect the RW 855F contact points for oxidation or wear. Then, we apply power and verify the 5V/3.3V rails with a Fluke 87V.

Next comes the functional check. We verify the battery backup circuit holds RAM data during a simulated power cut. Does the RS232 service port respond to handshake requests? We also check the independent watchdog timer for proper reset behavior. Finally, it goes into an anti-static bag with desiccant.

Replacement Pitfall Guide

❗ No Operating System. This OEM controller ships blank. Do not panic if it doesn’t boot immediately. You must load the OS via ControlBuilder F during the first commissioning. It’s a feature, not a defect.

❗ Software Version Lock. The ABB 3BDH000530R1 strictly requires ControlBuilder F V7.1SP2a or higher. Older engineering stations will fail to recognize the hardware ID. Check your license before ordering.

❗ Contact Carrier Mismatch. This unit requires the RW 855F contact carrier. Using the older PM802F carrier (RW 856F) will result in physical misalignment and backplane communication failures. Verify your mounting hardware.

❗ Battery Health. This industrial automation unit relies on a lithium battery for SRAM retention. Surplus stock may have degraded cells. Always test the backup voltage before racking. A dead battery means lost configuration on power cycle. Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Memory Capacity: 16 MB RAM (4x PM802F capacity)
• Data Retention: Battery-buffered SRAM (verify cell health)

Need me to verify the specific ControlBuilder F version compatibility for your project? The V7.1SP2a threshold is a hard stop for this CPU.
