Product Core Brief
- Model: K9203 (996920302)
- Brand: HIMA (Germany)
- Series: Industrial Thermal Management / Rack Fan
- Core Function: Provides reliable thermal management and cooling for critical safety instrumented systems and control racks.
- Product Type: Plug-in Rack Fan Unit
- Key Specs: 24 VDC | 3-Axis Design | 19-Inch Rack Mount | Redundant Power
- Condition: New Original / New Surplus

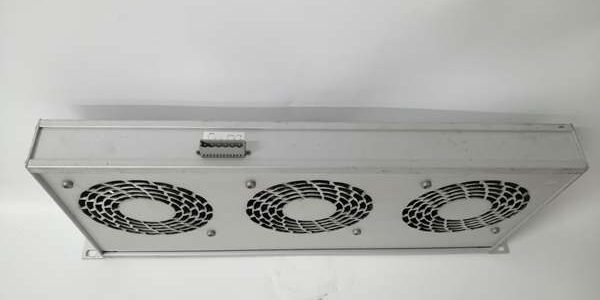

HIMA K9203
Product Introduction
The HIMA serves as a high-performance plug-in fan unit engineered to deliver reliable thermal management for critical industrial systems. This industrial automation unit addresses the challenge of heat buildup in safety instrumented systems (SIS), control racks, and hazardous environment enclosures.
Designed for seamless integration with HIMA safety controllers, this replacement module provides consistent air circulation to prevent overheating in oil & gas, chemical, and power generation applications. Its robust design meets strict industrial safety standards (IEC 61508 compatible), making it a dependable solution for maintaining system integrity in harsh operating conditions.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Plug-in Rack Fan Unit |
| Fan Configuration | 3-Axis Axial Fans |
| Power Supply | 24 VDC ± 10% |
| Mounting Style | 19-inch Rack, Plug-in |
| Airflow Capacity | 100 CFM (Typical) |
| Operating Temp | -20°C to +70°C |
| Protection Rating | IP20 |
| Noise Level | ≤ 45 dB(A) |
| Primary Application | Safety Instrumented Systems (SIS) |
| Compliance | IEC 61508 / Industrial Safety Standards |
Quality Control Process
Every replacement module undergoes strict electrical and mechanical validation. We first verify the 24 VDC power draw and test the redundant power supply circuits to ensure continuous operation during a single power failure. Next, we perform dynamic airflow testing to confirm the 3-axis fans operate at the specified RPM and CFM without excessive vibration. We then verify the fan operation monitoring circuits and inspect the 19-inch rack plug-in connectors for physical wear. All units ship in anti-static shielding.
Replacement Pitfall Guide
Verify the Plug-in Orientation. This fan unit is designed for standard 19-inch racks. Ensure the plug-in backplane connection is aligned perfectly before pushing firmly to secure. Forcing the module can bend the power and monitoring pins.
Check Redundant Power Wiring. The features built-in redundant power. Verify that both power feeds are correctly terminated. If one power source fails, the internal circuitry must seamlessly maintain fan operation without interruption.
Monitor the Operation Status. This module includes a fan operation monitor. Ensure this monitoring signal is correctly wired to your SIS controller or PLC so that a fan failure or reduced airflow triggers an immediate maintenance alarm.
Mind the Airflow Direction. When installing in a control cabinet, verify the airflow direction (typically front-to-back exhaust). Reversing the fan orientation can trap hot air inside the rack, defeating the purpose of the cooling unit.
Keep these in mind and you’ll cut 90% of rework time.
HIMA K9203
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 996920302 | Direct | Identical electrical specs | |
| K9203A | Needs Adaptation | K9203A is a newer variant, verify physical dimensions | |
| K9204 | Needs Adaptation | K9204 is a high-airflow variant for larger enclosures |
- Reliability: High MTBF (> 100,000 hours) designed for continuous industrial duty.
- Maintenance: Hot-swap capable plug-in design minimizes downtime during replacement.
