Product Core Brief

• Model: XVS-440-57MPI-1-10
• Brand: Eaton
• Series: XVS-440 HMI Series
• Core Function: Provides graphical visualization and control for PLC-driven automation systems.
• Product Type: Industrial HMI Touchscreen Panel
• Key Specs: 5.7″ TFT | SVGA 800×600 | IP65 Front Panel
• Condition: New Original / New Surplus

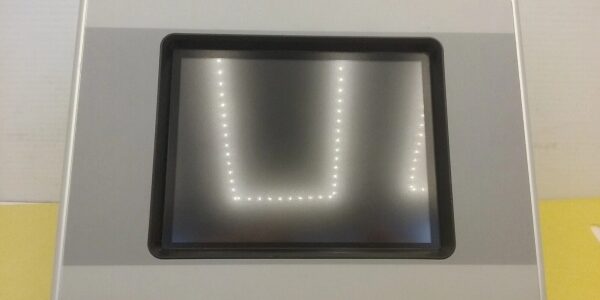

XVS-440-57MPI-1-10

Product Introduction

The Eaton serves as a dedicated human-machine interface for industrial control. This industrial automation unit translates complex PLC data into intuitive graphical displays.

This replacement module utilizes an infrared touch matrix for reliable, non-contact operation. It supports 65,536 colors and integrates seamlessly with Siemens S7 PLC architectures.

Key Technical Specifications

Quality Control Process

Every replacement module undergoes strict functional validation. We first verify the 24 VDC power draw using a calibrated Fluke multimeter to ensure internal regulators are stable. Next, we test the infrared touch matrix by systematically interrupting the light grid with a 7mm stylus. Unresponsive zones trigger immediate rejection. We then validate all communication ports using a loopback test. Finally, we inspect the front panel seal for IP65 integrity. All units ship in anti-static shielding.

Replacement Pitfall Guide

❗ Verify the Touch Technology. This specific model uses an infrared light matrix, not a resistive or capacitive overlay. Swapping it with a standard capacitive screen will cause immediate physical interference and operational failure.

❗ Check MPI Communication Wiring. The MPI port requires strict adherence to Siemens cabling standards. Improper termination or unshielded cables will introduce noise and cause intermittent HMI disconnects.

❗ Mind the Power Supply Isolation. The internal GND is tied to the 0V terminal without electrical isolation. You MUST use a safety-isolated AC/DC converter (SELV). Failing to isolate the 24 VDC supply risks catastrophic board failure.

❗ Confirm OS and Firmware. This unit runs Windows CE. Restoring a project from a newer Galileo software version onto this older hardware will corrupt the runtime environment. Always verify firmware compatibility first.

Keep these in mind and you’ll cut 90% of rework time.

XVS-440-57MPI-1-10

Compatibility Matrix & Benchmarks

• Display Brightness: Adaptable for high-glare industrial environments.
• Touch Response: Non-contact actuation requires minimum 7mm object interruption.
