Product Core Brief
- Model: 176449-08
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Monitors piston rod position and drop for reciprocating compressors.
- Product Type: 4-Channel Piston Rod Position Monitor
- Key Specs: 4 Channels | ±0.33% Accuracy | -30°C to +65°C
- Condition: New Original / New Surplus

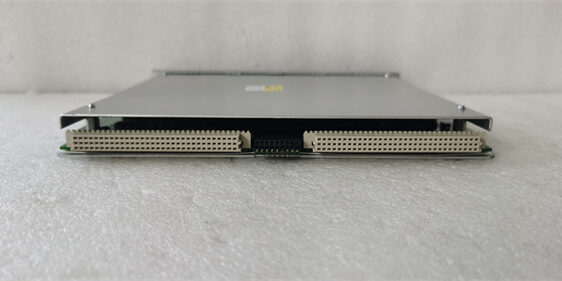

BENTLY 176449-08
Product Introduction
The Bently 176449-08 acts as a four-channel piston rod position monitor for 3500 racks. This industrial automation unit tracks rod position changes to prevent catastrophic compressor failures.
This replacement module processes signals from up to four proximity sensors simultaneously. It maintains a typical accuracy of ±0.33% across a standard -30°C to +65°C operating range.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | 3500/72M Piston Rod Position Monitor |
| Channel Count | 4 Independent Inputs |
| Typical Accuracy | ±0.33% (Max ±1%) |
| Sensor Power | -24 VDC |
| Output Impedance | 510 Ω |
| Operating Temp | -30°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity Tolerance | 95% (Non-condensing) |
| Primary Application | Reciprocating Compressor Protection |
| Compliance | API 670 / CE |
Quality Control Process
Every replacement module undergoes strict signal injection testing. We simulate proximity sensor inputs using precision RF signal generators to verify conditioning circuits. Output linearity must remain within the ±1% maximum tolerance. Next, we verify the internal alarm voting logic. We trigger Alert and Danger thresholds to confirm proper relay state transitions. We then inspect the backplane edge connector for bent pins. Oxidation or physical damage causes intermittent data loss. All units ship in anti-static shielding.
Replacement Pitfall Guide
❗ Verify Sensor Power Requirements. This module supplies -24 VDC to connected proximity sensors. Ensure your external sensor loop does not exceed the module’s current limits. Overloading the internal power supply causes erratic rod position readings.
❗ Set Alarm Setpoints Precisely. Piston rod drop limits are highly specific to compressor geometry. Use the 3500 rack configuration software to set exact thresholds. Guessing these values risks false trips or missed catastrophic failures.
❗ Check Backplane Slot Placement. This full-height module must be placed in valid 3500 rack slots. Improper placement prevents the system from recognizing the card during power-up. Consult your rack layout manual first.
❗ Mind the Grounding Loop. Reciprocating compressors generate massive electrical noise. Verify all shielded twisted-pair wiring is properly terminated. Ground loops will inject false displacement spikes into your trending data.
Keep these in mind and you’ll cut 90% of rework time.
BENTLY 176449-08
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 176449-08 | 176449-08 | Direct | Identical electrical specs |
| 176449-08 | 3500/70M Module | Needs Adaptation | 70M handles different rod parameters |
| 176449-08 | 3500/77M Module | Needs Adaptation | 77M handles cylinder pressure, not rod position |
- Alarm Response: Continuous comparison with configurable Alert/Danger setpoints.
- Data Integration: Seamless backplane communication with 3500 system.
