Product Core Brief
- Model: 127610-01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Provides regulated DC power to the 3500 rack backplane.
- Product Type: AC Power Supply Module
- Key Specs: 3500/15 Slot | AC Input | Redundant Capable
- Condition: New Original / New Surplus

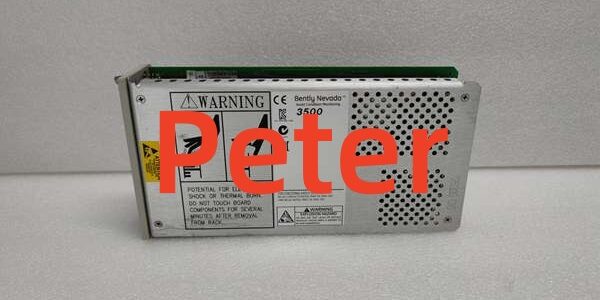

BENTLY 3500/15 127610-01
Product Introduction
The Bently 127610-01 serves as the primary power source for 3500 monitoring racks. This industrial automation unit converts incoming AC voltage to stable internal DC rails.
This replacement module ensures continuous operation of critical vibration monitors. It features robust internal protection against overcurrent and transient voltage spikes.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | 3500/15 AC Power Supply |
| Input Voltage | 85 to 264 VAC |
| Input Frequency | 47 to 63 Hz |
| Output Voltage | +5 VDC / ±15 VDC / +24 VDC |
| Power Consumption | < 15 Watts |
| Operating Temp | -30°C to +65°C |
| Mounting Position | Slot 1 or 2 (Rightmost) |
| Redundancy | Supports Dual Power Config |
| Compliance | API 670 / CE |
| Status Indicators | OK / Fault LEDs |
Quality Control Process
Every replacement module undergoes strict electrical validation. We perform load-bank testing to verify output stability under full draw. Voltage ripple must remain below 50mV peak-to-peak. Next, we test overvoltage and overcurrent protection circuits. Tripping must occur within factory-specified milliseconds. We then verify the backplane handshake signals. Faulty status LEDs trigger immediate rejection. All units ship in anti-static shielding.
Replacement Pitfall Guide
❗ Install in Correct Slots. The 127610-01 must occupy the rightmost slots of the 3500 rack. Installing it in the middle will damage the backplane and void warranties.
❗ Check Redundancy Wiring. If running dual power supplies, verify the parallel jumper is installed correctly. Missing jumpers cause single-supply overload and unexpected shutdowns.
❗ Verify AC Input Phasing. Ensure your site AC matches the module’s rating. Applying 240VAC to a 110VAC-only configured unit destroys the internal bridge rectifier instantly.
❗ Inspect Backplane Connectors. Check the rear edge connector for bent pins before insertion. Forced installation damages the backplane receptacles. Align carefully and seat evenly.
Keep these in mind and you’ll cut 90% of rework time.
BENTLY 3500/15 127610-01
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 127610-01 | 127610-01 | Direct | Identical electrical specs |
| 127610-01 | 127610-02 | Direct | Minor revision, fully interchangeable |
| 127610-01 | 127620-01 | Needs Adaptation | DC Input variant, verify source |
- Efficiency: >85% typical at full rated load.
- Hold-Up Time: >20 ms at nominal input voltage.
