Product Core Brief
- Model: 330130-040-00-00
- Brand: BENTLY NEVADA
- Series: 3300 XL 8mm
- Core Function: Connects the proximity probe to the proximitors while preserving signal integrity.
- Product Type: Extension Cable Assembly
- Key Specs: 4.0m Length | Non-Armored | 7.87 V/mm System Sensitivity
- Condition: New Original / New Surplus

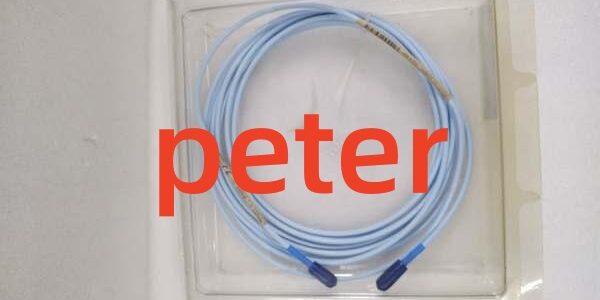

BENTLY 330130-040-00-00
Product Introduction
BENTLY 330130-040-00-00 is a 4.0-meter extension cable for 3300 XL 8mm systems. It bridges the probe and proximitors without degrading the high-frequency eddy current signal.
This industrial automation unit uses low-capacitance coaxial construction to maintain linearity. It operates from -40°C to +85°C and meets API 670 electrical standards.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Electrical Length | 4.0 Meters (13.1 ft) |
| Cable Type | Standard Non-Armored |
| Connector Type | Micro-Coaxial |
| System Compatibility | 3300 XL 8mm |
| Characteristic Impedance | 50Ω ±5% |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Jacket Material | PFA / Fluoropolymer |
| Shielding | Double Layer (Foil + Braid) |
| Compliance | API 670 (4th Ed) |
Quality Control Process
We validate every BENTLY 330130-040-00-00 before shipment. First, we measure total loop resistance and capacitance with a precision LCR meter. Values must match the 4.0m electrical length within ±2%.
Next, we perform a Time Domain Reflectometry (TDR) sweep to detect internal impedance mismatches or connector crimp failures. Any reflection over -40dB fails the test.
Finally, we inspect the micro-coax pins under magnification and seal each replacement module in anti-static shielding with desiccant. This prevents moisture damage during transit.
Replacement Pitfall Guide
❗ Electrical Length Mismatch: The “040” in your part number means exactly 4.0m. You cannot substitute a 3.5m or 4.5m cable. The total system length (probe + extension) is factory-calibrated; even 10cm of error destroys linearity and sensitivity.
❗ Connector Torque: Hand-tighten the micro-coax connectors, then use a calibrated torque wrench to spec. Over-torquing crushes the center pin; under-torquing causes intermittent signal loss that mimics bearing wear.
❗ Bend Radius Violation: Never bend this cable tighter than 1 inch (25mm) radius. Sharp bends change the characteristic impedance and create signal reflections that the proximitors cannot compensate for.
❗ Ground Loop Creation: The shield must ground ONLY at the proximitors end. Grounding at both ends creates a loop that injects 50/60Hz noise directly into your vibration signal.
Keep these in mind and you’ll cut 90% of rework time.
BENTLY 330130-040-00-00
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 330130-040-00-00 | 330130-040-00-CN | Direct | New agency approval code |
| 330130-040-00-00 | 330130-040-00-05 | Direct | ATEX/IECEx certified version |
| 330130-040-00-00 | 330130-040-01-00 | Needs Adaptation | Armored version; different bend radius |
- Signal Attenuation: < 0.5 dB over full 4.0m length
- Shield Effectiveness: > 60 dB rejection up to 100 MHz
