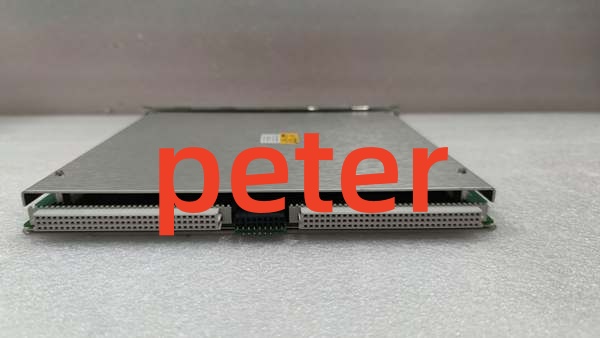

Product Core Brief

• Model: 3500/42-10-GCN
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection System
• Core Function: 4-channel monitor accepting Proximitor and Seismic inputs to measure relative shaft vibration and axial displacement.
• Product Type: Proximity / Seismic Vibration Monitor
• Key Specs: 4 Channels | Proximitor & Seismic Inputs | SIL 2 Capable
• Condition: New Surplus / OEM Original

Key Technical Specifications

• Module Type: Proximitor / Seismic Monitor
• Channel Count: 4 Independently Configurable Channels
• Input Types: Proximitor (Eddy Current), Seismic (Velocity/Acceleration)
• Measurement Parameters: Radial Vibration, Axial Displacement, Eccentricity
• Safety Certification: SIL 2 (IEC 61508) Capable
• Compliance: API 670 Standard for Machinery Vibration
• Signal Conditioning: Built-in filtering, integration, and differential processing
• Analog Output: 4-20 mA DC (Isolated) per channel
• System Compatibility: 3500 M-Series Monitors, 3300 XL Sensors
• Configuration: 3500 Rack Configuration Software
• Suffix Note: “GCN” indicates regional/compliance variant

Product Introduction

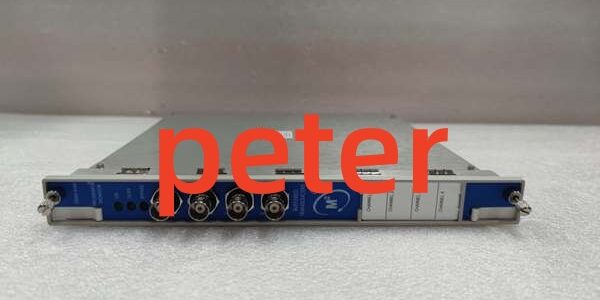

Serving as the primary sensor interface for the 3500 Machinery Protection System, this Bently Nevada 3500/42-10-GCN processes signals from eddy current and seismic transducers to deliver real-time shaft vibration and axial displacement data. It is the workhorse module for monitoring large rotating equipment like steam turbines, compressors, and generators.

The module’s ability to extract casing vibration from relative shaft signals makes it indispensable for absolute vibration measurements on large gas and steam turbines. With 24-bit resolution and low-noise analog signal processing, it ensures accurate machinery health evaluation across a wide dynamic range, meeting the stringent API 670 requirements.

QA & Testing SOP

Vibration monitors are the sensory organs of a turbine. We verify both the analog front-end and digital communication.

1. Anti-Counterfeit & Visual Audit: We inspect the Bently Nevada silkscreen, verify the GCN suffix, and check the front panel connectors for bent pins or physical damage.
2. Backplane Enumeration Test: We install the module in an OEM 3500 test rack to verify it correctly enumerates and accepts configuration parameters via the 3500 Configuration Software.
3. Signal Injection Test: We inject calibrated Proximitor and Seismic signals to verify the module accurately measures vibration amplitude and axial displacement within ±0.5% FS tolerance.
4. Analog Output Verification: We measure the 4-20 mA outputs with a precision multimeter to confirm they track the input signal linearly and are properly isolated.
5. ESD Safe Packaging: High-precision analog ICs are sensitive to electrostatic discharge. We pack these modules in anti-static shielding bags with desiccant to prevent latent damage.

Installation Pitfalls & Guide

❗ Sensor Gap Voltage: When commissioning Proximitor inputs, the target gap voltage must be set to 9.75V ± 0.2V at the前置器 (proximitor) OUT terminal. An incorrect gap voltage will result in erroneous vibration readings and potential false trips. Always verify with a multimeter before checking the DCS.

❗ Seismic vs. Proximitor Configuration: This module accepts both input types, but they are not interchangeable in software. If you configure a channel as “Proximitor” but wire a seismic sensor, the signal conditioning will be completely wrong. Double-check your software configuration matches the physical sensor type.

❗ Grounding and Shielding: Vibration signals are microvolt-level. If your sensor cable shield is grounded at both ends, ground loops will inject 60Hz noise into your readings. Always ground the shield at the monitor module end only, and use the dedicated signal common terminal.

Replacement SOP:

1. Pre-Install: Document the current channel configuration and sensor gap voltages; place the machine in bypass/maintenance mode.
2. Removal: Power down the 3500 rack; disconnect sensor and output wiring (label everything); remove mounting screws and extract the module.
3. Install: Slide the 3500/42-10-GCN into the designated slot, ensure firm backplane seating, and secure mounting screws.
4. Power-On Test: Power up the rack, download the configuration, verify sensor gap voltages, and confirm DCS readings match expected values before removing bypass.

Technical FAQ

What does the “GCN” suffix mean, and is it compatible with my standard 3500/42?
The “GCN” suffix typically denotes a regional variant (often Greater China) or specific compliance marking. Functionally, it is identical to a standard 3500/42-10 and will work in any 3500 rack. However, always match the exact suffix when replacing a failed unit to avoid potential firmware or compliance discrepancies during an audit.

Can I use this module for both shaft vibration and axial displacement?
Yes. The 3500/42M is a dual-purpose monitor. You can configure any of the 4 channels as either Proximitor (for relative shaft vibration or axial displacement) or Seismic (for absolute casing vibration). A typical configuration might use 3 channels for radial vibration and 1 channel for axial displacement.

Does this module support hot-swapping?
While the 3500 system supports online maintenance, replacing a vibration monitor while the machine is running will cause a temporary loss of protection for those channels. For critical machinery, we recommend scheduling a brief maintenance window to safely bypass the protection before replacement.

What sensors are compatible with this module?
This module is designed to work with Bently Nevada 3300 XL Proximitor systems (probes, extension cables, and proximitor transmitters) as well as 3300/9200 series seismic velocity and acceleration sensors. Always verify the sensor part number matches your application requirements.

Why is this sold as new surplus?
This unit was pulled from sealed OEM overstock or an unfulfilled project before installation. We test it on our OEM 3500 test racks to verify functionality, but we aren’t replacing internal components. You are getting unused factory silicon with original manufacturing tolerances at a fraction of the active OEM list price.
