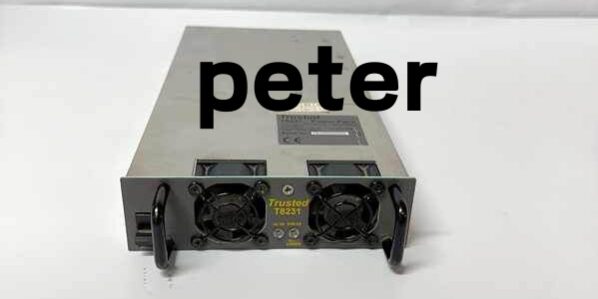

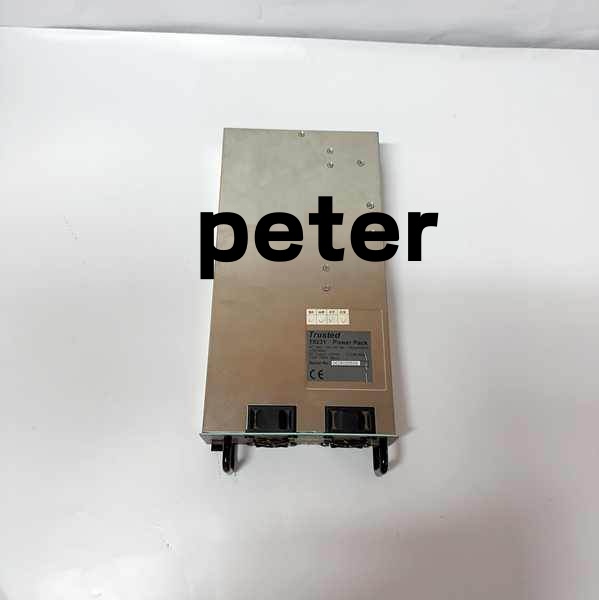

Product Core Brief
- Model: T8231
- Brand: ICS Triplex / Rockwell Automation
- Series: Trusted TMR Safety System
- Core Function: Provides stable, redundant 24VDC power to the TMR controller and I/O modules.
- Product Type: Power Supply Module (Power Pack)
- Key Specs: 24 VDC Input/Output | 1A Max | Triple Modular Redundancy (TMR) Compatible
- Condition: New Original (New Surplus)
Product Introduction
The is a critical power supply module designed specifically for the Trusted TMR (Triple Modular Redundancy) safety system architecture. It serves as the dedicated power source for the TMR controller racks, ensuring continuous and stable 24VDC power to processors, I/O modules, and communication interfaces.
Engineered for mission-critical industrial environments, the is typically deployed in redundant pairs (e.g., two modules per power rack) to guarantee uninterrupted power delivery. Its robust design and compatibility with the broader TMR ecosystem make it an essential component for maintaining the high availability and fault tolerance required in petrochemical, power generation, and safety-critical applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Power Supply Module (Power Pack) |
| System Compatibility | ICS Triplex Trusted TMR Rack (e.g., T8240 Power Rack) |
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| Max Output Current | 1 A |
| Operating Temp | -40 °C to +70 °C |
| Dimensions | 75 mm x 125 mm x 30 mm |
| Communication Support | Modbus, Ethernet (System Level) |
| Mounting | Modular Rack Mount |
| Certifications | Industrial Automation Standards |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against ICS Triplex traceability records. A visual inspection checks for bent pins on the backplane connector and ensures the housing is free of impact damage.
- Live Functional Test: We mount the unit in a live TMR test rack. We apply nominal input voltage and verify the 24VDC output stability under load using an electronic load tester.
- Electrical Parameter Test: We perform a 500 V Megger test between the input/output terminals and the chassis/backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
- Redundancy Verification: We test the module in a dual-module configuration to confirm seamless load sharing and failover capability without output voltage droop.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on TMR power systems are unforgiving. Watch out for these traps.
- Redundancy Handshake Failure: ❗ Critical. modules are typically deployed in pairs. If replacing one module in a redundant setup, ensure the new module’s hardware revision matches the existing unit. Mismatched revisions can prevent proper load sharing and failover.
- Power Rack Compatibility: Verify that the is being installed in the correct power rack (e.g., T8240). Installing it in a standard I/O or CPU rack will cause physical damage and electrical faults.
- Terminal Torque: Power modules carry continuous current. Ensure all input and output terminal screws are torqued to the manufacturer’s specification. A loose connection will cause localized heating and intermittent brownouts that mimic module failure.
- Load Calculation: Verify your total system load does not exceed the 1A continuous rating per module. Always maintain at least 20% headroom on your power supply to accommodate inrush currents during system boot.
- ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility
- ICS Triplex Rev A → Rev B : Direct Replacement — Verify hardware revision compatibility with existing redundant pair.
- ICS Triplex → T8240 Rack : Companion Hardware — T8240 is the dedicated power rack chassis for modules.
Benchmarks
- Redundant Switchover: 0 ms (zero interruption during primary module failure)
- Power-On to Ready: < 3 s (from 24 VDC applied to OK signal assertion)
Need the wiring diagram for the power supply? I can pull up the termination schematic showing the 24VDC input/output connections and redundant pairing configuration.
