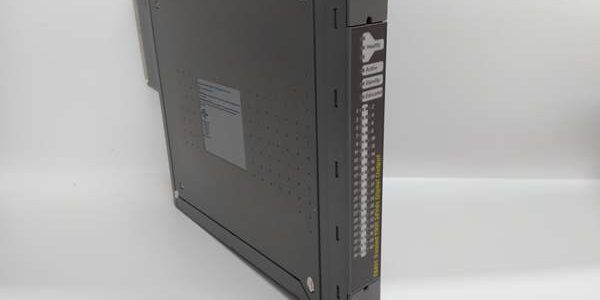

Product Core Brief
- Model: T8451
- Brand: ICS Triplex / Rockwell Automation
- Series: Trusted TMR Safety System
- Core Function: Executes digital output control functions for external safety-critical devices and systems.
- Product Type: 40-Channel TMR Digital Output Module
- Key Specs: 40 Channels | 24VDC | Triple Modular Redundancy (TMR) | 1μs Response Time
- Condition: New Original (New Surplus)
Product Introduction
The is a highly reliable digital output module specifically designed for the Trusted TMR (Triple Modular Redundancy) safety system architecture. Engineered for mission-critical industrial environments, this module provides 40 independent digital output channels to drive field devices such as solenoids, relays, and shutdown valves.
The core of the is its TMR architecture. It operates by running identical programs in parallel across three identical modules and utilizes a majority voting system to determine the final output. This design maximizes system reliability and fault tolerance, ensuring that even if internal faults occur, the system continues to execute control logic safely and correctly. It also features comprehensive self-diagnostics, including automatic line monitoring and stuck-on/stuck-off fault detection.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | TMR Digital Output Module |
| System Compatibility | ICS Triplex Trusted TMR Rack |
| Channel Count | 40 Independent Digital Output Channels |
| Output Voltage / Load | 24 VDC |
| Output Current | 2 A per channel (Continuous) |
| Redundancy Architecture | Triple Modular Redundancy (TMR) with Majority Voting |
| Response Time | 1 μs |
| Diagnostics | Auto Line Monitoring, Stuck-On/Stuck-Off Detection |
| Status Indication | PWR, RUN, ERR, CH1-CH40 LEDs |
| Dimensions | 176 mm x 82 mm x 42 mm |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against ICS Triplex traceability records. A visual inspection checks for bent pins on the backplane connector and ensures all 40+ front panel LEDs are intact.
- Live Functional Test: We mount the unit in a live TMR test rack. We force outputs across all three redundant slices and verify that the majority voting system accurately updates the status LEDs and terminal states.
- Electrical Parameter Test: We perform a 500 V Megger test between the field output terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
- Diagnostic Injection Test: We intentionally inject open-circuit and short-circuit faults to confirm the module’s auto-line monitoring and stuck-state diagnostics trigger the correct fault codes without tripping adjacent channels.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on TMR safety systems are unforgiving. Watch out for these traps.
- Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing TMR CPU. The controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
- TMR Voting Faults: ❗ Critical. The relies on three identical modules voting. If you are replacing a single slice, ensure the new module’s hardware revision and firmware match the other two slices. A mismatch will cause continuous voting failures and system faults.
- Terminal / Cable Incompatibility: Inspect the field wiring before plugging in the new card. A shorted solenoid or grounded cable will immediately trip the ‘s internal protection, locking out the channel and mimicking a module failure.
- Power Supply Headroom: This module can deliver up to 2A per channel. Verify your external 24 VDC field power supply has adequate headroom to handle the inrush currents of all connected inductive loads during simultaneous switching.
- ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility
- ICS Triplex Rev A → Rev B : Direct Replacement — Verify firmware compatibility with TMR CPU.
- ICS Triplex T8471 → : Needs Adaptation — Different DO module variant; requires logic and configuration re-validation.
Benchmarks
- Response Time: 1 μs (from CPU command to terminal state change)
- Voting Consensus: < 5 ms (for three-slice synchronization)
Need the wiring diagram for the 40-channel outputs? I can pull up the termination schematic showing the power grouping and shield grounding points.
