Product Core Brief

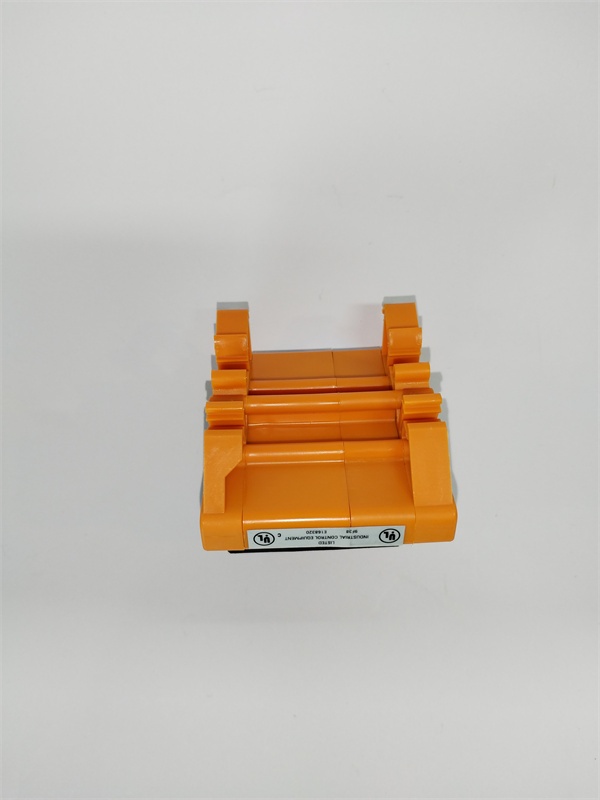

- Model: FC-TSDO-0824
- Brand: Honeywell
- Series: FSC 80x.x / Safety Manager
- Core Function: Delivers eight fault-safe digital outputs for emergency shutdown and turbine protection.
- Product Type: Safe Digital Output Module
- Key Specs: 8 Channels | 24 VDC | QMR Architecture
- Condition: New Original (New Surplus)
Product Introduction
HONEYWELL FC- functions as a safe digital output module within the FSC 80x.x platform. This unit executes critical shutdown commands with built-in diagnostic feedback.
Unlike standard DO cards, this module leverages Quad Modular Redundancy (QMR) for high-integrity protection. It supports burner management and compressor protection logic. Verify with OEM datasheet for exact SIL3 certification limits.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Output Channels | 8 Independent |
| Operating Voltage | 24 VDC |
| Safety Architecture | QMR (Quad Modular Redundancy) |
| Module Type | Safe Digital Output |
| Controller Family | FSC 80x.x |
| Weight | 0.24 KG |
| Protection | Short Circuit / Overload |
| Application | ESD / Burner Management |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for pin corrosion or PCB scratches.
- Live Functional Test: Power-on self-check runs first. We verify comms handshake and run continuous load tests >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity is mandatory.
- Firmware Verification: Read and record firmware version immediately. Photograph DIP switch and jumper settings before racking.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Firmware Mismatch: New module firmware may conflict with older FSC 80x.x controllers. Always check version compatibility before racking.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match field settings. Verify bus termination resistor placement on the third terminal block.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Check shield grounding at the FTA-T-02 terminal board to prevent noise.
❗ Power Supply Mismatch: Calculate total rack power draw. Maintain 20% headroom on your 24 VDC supply to prevent brownouts.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- FC- → FC-SDO-0824 : Needs Adaptation — Verify FSC version compatibility
- FC- → FC-TSDO-0424 : Incompatible — Different channel count (8 vs 4)
- FC- → FC-TSDI-1624 : Incompatible — Digital Input module, not output
Benchmarks:
- Scan cycle: 50 ms (simulated load, 8 safety points)
- Comms throughput: N/A (Safety backplane)
