Product Core Brief

• Brand: GE Fanuc / Emerson Automation

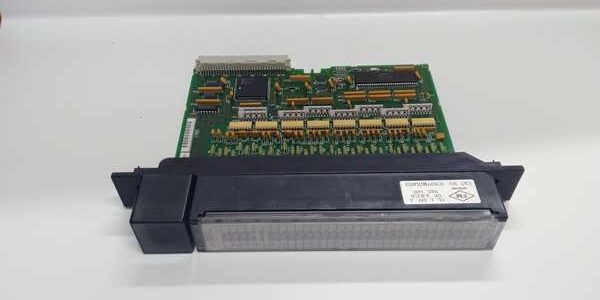

• Model: IC697MDL653
• Series: Series 90‑70 PLC
• Core Function: High-density discrete input module acquiring 24 VDC field signals from limit switches, pushbuttons, and proximity sensors for Series 90‑70 control logic processing
• Type: Single-slot rack-mounted DC input I/O module
• Condition: New Original (New Surplus)
• Status: ⚠️ Discontinued OEM production; limited surplus inventory
• Key Spec Highlights: 32 input points arranged as four isolated groups of eight channels, positive/negative logic support, software-selectable input filtering, individual channel status LEDs, one interrupt-capable channel

Key Technical Specifications

• Channel Configuration: 32 discrete DC inputs; four electrically isolated groups (8 points each)
• Rated Field Voltage: 24 VDC; operating range −3 VDC to +30 VDC
• On-State Threshold: 13.5 VDC to 30 VDC
• Off-State Threshold: 0 VDC to 5 VDC
• Input Current: 10 mA typical at 24 VDC
• Input Filter Delay: Software configurable, 1 ms or 10 ms per group
• Isolation Ratings: 1500 VAC between field circuits and backplane; 500 VAC between input groups
• Backplane Power Draw: 0.3 A @ +5 VDC
• Status Indicators: Dedicated LED for each input channel
• Special Function: One channel configurable for hardware interrupt triggering
• Supported Field Devices: Dry contacts, 2-wire / 3-wire proximity sensors, selector switches
• Operating Temperature: 0 °C to +60 °C
• Ambient Humidity: 5%–95% non‑condensing
• Mechanical Feature: Keyed carrier to prevent mismatched module insertion
• Compatible Hardware: Standard Series 90‑70 rack backplanes and all Series 90‑70 CPU variants

Product Introduction

Dense equipment layouts require maximizing I/O capacity within limited rack space without sacrificing noise immunity. GE delivers 32 discrete input channels in a single rack slot, consolidating field signal collection for valve feedback, machine interlocks, and process status indication.

Group-level electrical isolation limits fault propagation if field wiring shorts occur. Adjustable input filtering allows engineers to suppress contact bounce or electrical noise common on long field cables. The standardized single-slot carrier enables direct drop-in replacement during planned maintenance outages without rack mechanical modification.

Key Selling Points & Differentiators

1. GE supports both positive and negative logic wiring, simplifying integration with mixed sourcing and sinking field devices across retrofit projects.
2. Four isolated input groups contain wiring faults; a short-circuit within one group will not disrupt signal acquisition on other banks of channels.
3. Every unit undergoes full bench validation on a Series 90‑70 test rack; channel switching, LED indicators and filter modes verified prior to shipment. Signed test documentation available on formal request. Warranty runs 12 months after delivery.
4. Selectable 1 ms / 10 ms digital filtering provides flexibility for high-speed interlock signals or noisy long-distance field wiring runs.
5. Not recommended for RX3i, RX7i or Series 90‑30 racks. Backplane connector and communication protocol are exclusive to legacy Series 90‑70 architecture.
6. Keyed module carrier reduces risk of accidental installation of incompatible I/O modules during urgent field service activities.

Quality Transparency SOP

• Incoming Verification: Serial traceability validation, anti-counterfeit visual inspection, carrier latch and terminal hardware cross-check.
• Live Bench Test: Dedicated Series 90‑70 test rack, power-on self-check, full channel switching sequence, both filter mode validation, LED indicator verification, continuous 24-hour thermal cycling.
• Electrical Tests: 500 V megger insulation resistance testing, group-to-group isolation validation, signal threshold testing across all input channels.
• Hardware Verification: Confirm no unauthorized component rework; factory circuit configuration preserved.
• Final QC & Packaging: Anti-static shielding, shock-dampened transit carton, signed QC Pass label. Test images and logs available on request. No zero-failure performance guarantee.

Technical Risk Avoidance Section

Filter Mode Misconfiguration Risk Risk: Using 10 ms filtering on fast interlock signals introduces excessive latency and missed state transitions. Using 1 ms on noisy cables creates false input toggling. Prevention: Match filter setting to field cable length and signal speed; document group filter assignments in control drawings. Field note: Multiple manufacturing lines experienced missed safety interlock events after technicians left default 10 ms filtering enabled for high-speed limit switch signals.

Group Common Wiring Risk Risk: Incorrect common polarity wiring prevents proper signal detection even if hardware and programming are correct. Prevention: Verify positive/negative logic wiring against module schematic before energizing field circuits.

ESD Damage Risk Risk: Unprotected handling damages input optocoupler circuits without immediate visible failure symptoms. Prevention: Use grounded wrist straps; keep the module sealed inside anti-static packaging until rack insertion.

Platform Mix-Up Risk Risk: Field staff confuse this Series 90‑70 module with physically similar Series 90‑30 MDL653 variants; they are not rack-interchangeable. Prevention: Confirm full part number and platform before ordering spare hardware.

Critical Summary: Confirm rack platform and field wiring topology before procurement. This input module operates exclusively within Series 90‑70 racks and cannot be substituted with I/O modules designed for later PACSystems hardware.
