Product Core Brief

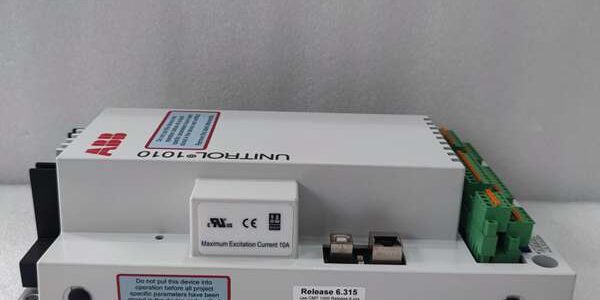

- Model: UNITROL 1010 3BHE035301R1002
- Brand: ABB
- Series: UNITROL 1000 Compact Static Excitation AVR Platform
- Core Function: Digital automatic voltage regulator governing rotor field current to stabilize generator terminal voltage and enable grid paralleling
- Product Type: Fanless 2U vertical panel-mount excitation control unit
- Key Specs: 10 A continuous DC field output | Dual isolated processing cores | Modbus TCP + RS485 + USB; Condition: New Original (New Surplus)
Product Introduction
ABB UNITROL 1010 samples PT voltage and CT current signals to adjust IGBT field output for synchronous machines rated up to 80 MVA. It embeds synchrocheck and power system stabilizer logic without external auxiliary modules. This unit differs from UNITROL 1020 by capping continuous field output at 10 A and removing the front touchscreen HMI. It holds ±0.5% steady-state voltage error across -20 °C to +70 °C and stores 500 timestamped fault events in onboard flash memory.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Continuous field output current | 10 A DC at 55 °C ambient |
| Short-term overload field current | 25 A DC for maximum 10 seconds |
| Auxiliary supply input range | 9–250 V AC single/3-phase; 18–300 V DC |
| Maximum unit power draw | 36 W |
| Steady-state voltage regulation accuracy | ±0.5 % full scale |
| Full load step control response time | ≤100 ms |
| Communication ports | 10/100 Ethernet (Modbus TCP), RS485 Modbus RTU, USB local service |
| Configurable I/O allocation | 3 analog inputs (4–20 mA / ±10 V), 8 digital inputs, 4 relay outputs |
| Fault event storage capacity | 500 timestamped trip and operational logs |
| Operating cabinet temperature | -20 °C to +70 °C sealed enclosure |
| Humidity rating | 5–95 % RH non-condensing |
| Mechanical mounting | Standard 2U vertical panel cutout footprint |
| Net unit weight | 3.1 kg |
| Compliance standards | IEC 60034-1, IEC 60255, CE, DNV marine certified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB power control spare database to flag counterfeit hardware. Inspect terminal blocks, Ethernet port and front status LED array with a 10x magnifier for pin corrosion or cracked housing; log serial numbers for power plant traceability.
- Live Functional Test: Mount the unit on a panel test rack paired with PT/CT signal simulators and resistive field load banks. Run continuous 26-hour load testing while logging cabinet temperature swings and recording voltage regulation deviation under full load steps.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between field power terminals and chassis ground; pass threshold set at >10 MΩ. Verify PE ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
- Firmware Verification: Extract and record internal DSP firmware revision printed on the PCB silkscreen. Photograph RS485 bus termination jumper positions and I/O polarity labels for field commissioning reference.
- Final QC & Packaging: Wipe unit housing with anti-static microfiber cloth, cap all communication ports with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: UNITROL 1010 firmware v4.2 drops backward compatibility with legacy UNITROL1000 3BHE014557R0003 logic. Match exact firmware builds before rack power-up, or synchrocheck interlocks will lock breaker close commands indefinitely. ❗ DIP Switch / Jumper Misconfiguration: Factory default RS485 bus termination resistor is disabled. Most plant SCADA trunk layouts require the resistor enabled on the last controller in the chain; missed settings create cyclic Modbus RTU packet loss under peak generator load. ❗ Terminal / Cable Incompatibility: This unit uses 2.5 mm spring signal terminals, unlike UNITROL 1020 4 mm power blocks. Oversized cable strands cause loose field wiring and intermittent excitation dropout; shield drain wires must land on dedicated protective ground terminals only. ❗ Power Supply Mismatch: Full 10 A field output draws 36 W peak auxiliary power. Calculate rack power budget with 20 % overhead; undersized AC/DC auxiliary supplies trigger low-voltage lockout and zero field current delivery. ❗ ESD Damage: Dry cabinet environments above 40 % relative static risk degrade internal DSP and IGBT gate driver chips on the unit. Always use an anti-static mat and grounded wrist strap when accessing exposed terminal and PCB wiring. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- UNITROL1000 3BHE014557R0003 → UNITROL 1010 : Needs Adaptation — Ethernet wiring added, event log storage capacity reduced
- UNITROL 1020 → UNITROL 1010 : Direct — identical I/O pinout, derate field current from 20 A to 10 A
- UFC760BE143 → UNITROL 1010 : Incompatible — separate Masterbus300 rack bus architecture, no direct signal mapping
