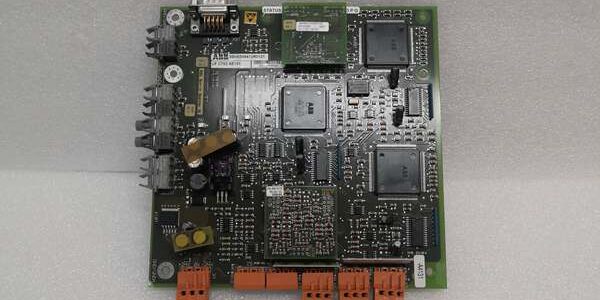

Product Core Brief

• Model: UFC762AE101, OEM article number 3BHE006412R0101
• Brand: ABB
• Series: AC800PEC power electronic control platform for UNITROL excitation, SVC and large converter systems
• Core Function: Separates and processes two independent I/O domains: microsecond fast fiber I/O for power stage control and millisecond slow S800 ModuleBus I/O for routine plant monitoring
• Product Type: DIN rail mounted combined fast/slow copper-fiber I/O media conversion unit
• Key Specs: Dual fiber optical fast I/O ports | Max 12 S800 slow I/O modules | 1500VAC full galvanic isolation
• Note: Full platform end-of-life; factory sealed new assemblies and fully cyclic load-tested surplus available for thermal, hydro and wind power plant cabinet maintenance

Key Technical Specifications

• I/O Domain Partitioning
  1. Fast Fiber I/O: Duplex multi-mode fiber, microsecond real-time control for thyristor pulse and rotor feedback signals
  2. Slow ModuleBus I/O: ABB proprietary S800 ModuleBus, up to 12 analog/digital I/O modules per unit
• Optical Cable Compatibility: POF plastic fiber max 15m, HCS hard clad silica fiber max 15000 meters
• Galvanic Isolation: 1500VAC reinforced isolation between fiber fast loop, copper slow bus and 24VDC supply
• Auxiliary Operating Supply: 24 VDC ±10% SELV, 0.12A continuous power draw
• Front Diagnostic Indicators: RUN power LED, Fast Tx/Rx fiber traffic lights, Slow BUS status, red FAULT bus alarm
• Mechanical Mount: 35 mm EN 50022 standard DIN rail clip-in housing
• Enclosure rating: IP20 for interior cabinet installation
• PCB surface protection: ISA G3 conformal coating standard for offshore, coastal and chemical high-humidity environments
• Operating ambient temperature: -10°C to +60°C sealed cabinet; storage -40°C to +85°C
• Humidity tolerance: 5%–95% RH non-condensing below 55°C
• Net assembly weight: 0.31 kg
• Overall dimensions: 168 mm H × 47 mm W × 122 mm D
• Compliance standards: IEC 61508 SIL2 capable, IEC 60255, EU RoHS, CE certified

Product Introduction

This DIN rail I/O combiner acts as a dedicated media separator for AC800PEC power electronic control systems, isolating high-speed fiber pulse control signals from slower plant monitoring I/O to eliminate scan cycle interference. Dual fiber optical ports extend fast control loops over long trunk lines near variable frequency drives and MCCs without EMI distortion, and independent slow ModuleBus routing supports standard S800 I/O clusters for temperature, voltage and current transducer logging. All signal conditioning circuits use passive hardware topology that maintains stable loop timing without complex firmware tuning.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial number against ABB AC800PEC excitation spare asset database to filter counterfeit assemblies; inspect ST fiber ferrules, ModuleBus terminal block and front LED array with a 10x magnifier for oil contamination or pin corrosion; log serial numbers for full generator and SVC traceability records.
2. Live Testing: Mount the unit on a DIN rail test bench paired with an AC800PEC controller, dual multi-mode fiber trunk cables and 12-channel mixed analog/digital I/O load bank; supply rated 24VDC auxiliary power; run a continuous 24-hour cycle test including fiber cable break injection, full S800 I/O scan validation and fast loop traffic throughput verification.
3. Electrical Testing: Use a Fluke 115 multimeter to verify ≥10MΩ isolation between fiber fast circuits, slow ModuleBus and DIN rail chassis ground; measure cabinet PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph front LED traffic mapping and OEM maximum fiber/copper cable length limits printed on the unit housing for field wiring reference.
5. Final QC & Packaging: Wipe plastic housing with static-dissipative microfiber cloth; clean ST fiber ferrules with OEM alcohol wipes then cap both optical ports with plastic dust covers; seal the assembly inside a shielding ESD bag, attach a printed QC tag with full 24-hour dual-domain I/O cycle test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Exceeding OEM maximum fiber cable length raises fast control loop lag: HCS fiber runs over 15km push pulse cycle timing above 200μs, violating grid code fast excitation response requirements. ❗ Mixed fast/slow bus wiring creates cross-domain signal interference: Separate cable routing paths are mandatory; shared cable trays without shielding generate periodic analog measurement drift. ❗ Dirty fiber ferrules block optical transmission: Finger oil residue degrades light throughput and triggers constant fast loop fault alarms; clean all fiber tips before insertion into transceiver ports. ❗ Duplicate cluster addressing crashes the slow ModuleBus segment: Record the mechanical cluster ID on the original hardware before removal; matching node IDs drop all slow I/O monitoring data within 3 seconds of power activation. ❗ ESD discharge destroys internal fiber transceiver ICs: Static contact with PCB fast-loop logic disables both optical ports, requiring full excitation/SVC system shutdown and multi-day production downtime for replacement. ❗ Hot-swap energized 24VDC auxiliary power corrupts differential bus clock signals: Removing the unit under live power forces all connected fast pulse boards and slow I/O modules to cold restart, creating an unmonitored plant safety blind zone.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary power supply breaker; wait 10 minutes for internal logic capacitors to fully discharge; don ESD wrist strap; capture photos of dual ST fiber trunk cabling, ModuleBus wiring and original cluster address switch position.
2. Removal: Unplug both duplex ST fiber cables and all ModuleBus signal wires one by one following captured photos; release the DIN rail retention clip, slide the hardware horizontally off the rail without bending fiber ferrules.
3. Install: Set mechanical cluster address switch on the new unit to match recorded values; clip the unit firmly onto the original DIN rail position; re-seat cleaned fiber cables straight into optical ports; re-terminate ModuleBus wiring matching photographed polarity sequence to OEM torque specifications.
4. Power-on Test: Restore 24VDC auxiliary power; confirm steady green RUN LED and active Fast Tx/Rx + Slow BUS traffic indicators; trigger full dual-domain I/O scan to validate zero packet loss across fast pulse control and slow monitoring channels; simulate primary fiber cable pull to confirm red FAULT LED activates and logs fast loop fault events to the plant SCADA server.

FAQ

Q: Can this unit operate without fiber optic cabling connected? A: It will communicate with local slow I/O clusters via copper ModuleBus, but all fast fiber-linked power stage pulse control loops will be fully offline. Optical ports are mandatory for extended plant excitation/SVC layouts exceeding 2km copper cable limits. Q: Is hot-swapping supported while cabinet 24VDC auxiliary power remains energized? A: It is not supported. The live dual-domain bus carries high-speed differential control frame data; unplugging the unit creates voltage transients that disrupt fast pulse timing and trigger mass slow I/O cold restarts, disabling real-time generator voltage regulation. Full power lockout and capacitor discharge wait time are mandatory before removal. Q: What warranty coverage applies to stocked units? A: Factory-new original fast/slow I/O media converters carry a 12-month OEM warranty covering dual ST fiber transceivers, ModuleBus routing circuits, reinforced isolation transformers and front diagnostic LED arrays. Continuity-tested surplus units come with a 6-month functional warranty. Damage from contaminated fiber ferrules, shared unseparated bus cabling or ungrounded ESD handling voids all warranty coverage. Q: What hardware replaces this unit for new power station converter and excitation builds? A: New 800PEC deployments integrate fast/slow I/O media conversion directly on AC800PEC main controllers, eliminating separate DIN rail I/O combiners. This hardware remains approved only for one-to-one maintenance replacement of pre-2022 legacy UNITROL and SVC control racks. Q: Will stored cluster address node ID settings be lost after full cabinet power outage? A: Node ID is set via a mechanical rotary switch, so power loss does not alter cluster addressing. No non-volatile memory stores custom control loop tuning data on the hardware; all fast/slow bus timing relies on passive PCB component values, so no parameter reconfiguration is required post-replacement beyond matching physical wiring layout. Q: What are the most common failure modes for a faulty unit? A: Persistent red FAULT state with undamaged fiber cabling, one-way fast fiber transmission with zero receive data, complete loss of communication to all remote fiber-linked excitation power stages, inconsistent slow ModuleBus scan timing under maximum 12-module I/O load, degraded isolation allowing cross-domain signal interference, blank Fast Tx/Rx LEDs with normal 24VDC auxiliary supply, and failure to log fiber break fault events to the controller history.
