Product Core Brief
- Model: SD834, official OEM part code: 3BSC610067R1
- Brand: ABB Hitachi Energy
- Series: SD83x standard power supply series dedicated to ABB Ability System 800xA and AC800M distributed control systems
- Core Function: High-output DIN rail mounted switch-mode power supply that converts universal wide-range AC or DC mains input into stabilized 24 VDC SELV low-noise logic power. Rated at 20 A / 480 W, it is designed for heavy-load multi-rack DCS cabinets with large quantities of CPU controllers, S800 remote I/O modules, PROFIBUS fieldbus cards, HMIs and field transmitters. It supports two operation modes: standalone single power feed, or parallel redundant power architecture when paired with SS823 / SS832 diode voting modules. Exclusive to , multiple units can be connected in parallel to expand total output power for ultra-large automation systems. Built-in soft-start circuit suppresses high inrush current at power-on to avoid upstream circuit breaker tripping, and integrated multi-layer hardware protection prevents downstream DCS hardware from surge voltage, overload and thermal damage. All internal circuits adopt anti-corrosion conformal coating for corrosive industrial and offshore environments.
- Product Type: DIN rail mounted heavy-duty switch-mode power supply unit (PSU)
- Key Specs: Universal dual input: 85–276 VAC single-phase / 88–187 VDC; fixed 24 VDC output, rated 20 A continuous / 480 W total power; soft-start inrush current limiting; full galvanic isolation between high-voltage primary and low-voltage secondary SELV circuits; OVP, OCP, overtemperature, short-circuit auto-recovery protection; parallel load-sharing capability; G3 anti-corrosion conformal coating; standard 35 mm DIN rail mounting; Class I safety equipment with mandatory PE earth connection
- Note: Still active mass production for new large-scale 800xA DCS projects and legacy plant cabinet renovation; factory-sealed original units and fully bench-load-tested surplus PSUs are widely supplied for thermal power plants, offshore wind control rooms, chemical workshops, mining multi-drive systems and water treatment central control cabinets.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Article Code | 3BSC610067R1 |
| Primary Input Compatibility | AC: 85 ~ 276 VAC, 47–63 Hz; DC: 88 ~ 187 VDC |
| Nominal DC Output | Stabilized 24 VDC SELV/PELV compliant |
| Rated Continuous Output Current | 20 A |
| Total Maximum Output Power | 480 W |
| Typical Efficiency | Up to 93.9% at full rated load |
| Inrush Current Control | Soft-start circuit limits peak inrush < 13 A to avoid breaker tripping |
| Hold-Up Time | Min 77 ms at 230 VAC full load during mains dropout |
| Parallel Function | Support multi-unit parallel connection for load sharing to expand total power capacity |
| Built-in Protection Suite | Input overvoltage lockout, output constant current limiting, auto-recovery short-circuit shutdown, NTC overtemperature trip |
| Isolation Rating | 3000 VAC functional isolation between primary high-voltage circuits and secondary 24V logic circuits |

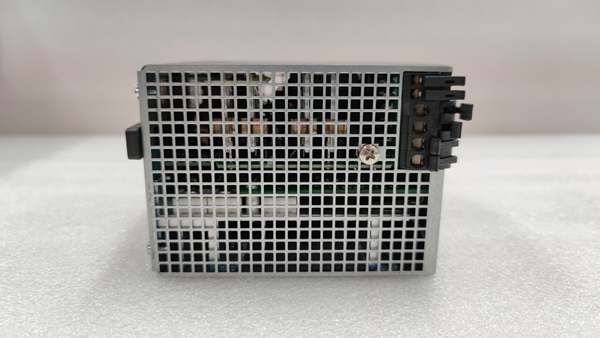

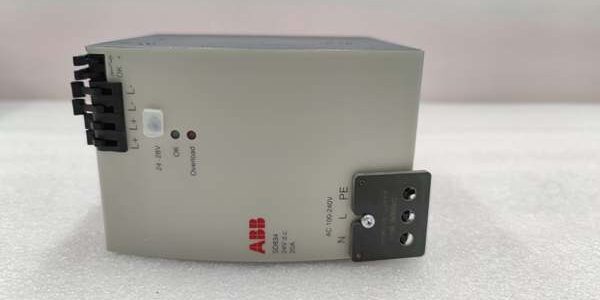

| Front Panel Indicators | Green OK LED (normal operation); red Overload/Temp fault LED |
| Mechanical Dimensions | 124 mm H × 82 mm W × 127 mm D |
| Net Weight | Approx. 1.35 kg |
| Operating Ambient Temperature | -10 °C ~ +50 °C continuous cabinet operation; storage: -40 °C ~ +70 °C |
| Compliance Standards | EN 50178, EN 61131-2, UL 508, CE, RoHS, TUV certified, SELV/PELV secondary circuit compliant |
Product Introduction
The is the highest-power standard PSU in ABB’s SD83x series, developed to satisfy the heavy power consumption demand of large multi-rack 800xA DCS systems that cannot be supported by mid-power SD833 (10 A / 240 W) or low-power SD831/SD832 variants.
Four Core Unique Functional Advantages
- Dual AC/DC Wide Input CompatibilityThe unit accepts both standard single-phase industrial AC mains (110/230V) and station DC control power (110 VDC) without hardware modification, unifying spare parts inventory for power plants with mixed AC/DC cabinet power architectures. Integrated EMI filter eliminates external filter installation and saves cabinet space.
- Unlike SD831/SD832/SD833 which only support single-unit independent output, can be wired in parallel with identical modules to multiply total output current. For ultra-large DCS racks with dozens of I/O and communication cards, two units deliver combined 40 A 24V power, meeting heavy load requirements without upgrading cabinet layout.
- Dual Redundant Power Architecture CompatibilityWhen paired with SS823 or SS832 diode voting modules, two units form fully redundant A/B power rails. If one PSU fails or its input cable is cut, the other unit takes full load instantly with zero DCS communication interruption or process control outage, critical for SIL-rated safety-critical power plant and chemical plant control systems.
- Comprehensive Passive & Active Safety ProtectionProprietary soft-start circuit prevents peak inrush current damage during power-on. Multi-stage hardware protection instantly locks 24V output under overload, short-circuit, overvoltage or overheating conditions to protect expensive PM866 CPU boards, S800 I/O modules and fieldbus cards. The low-ripple stabilized 24V output eliminates analog signal drift and random fieldbus communication faults caused by power supply noise.The full conformal coating treatment adapts the PSU to offshore salt fog, metallurgical corrosive gas and high-humidity workshop environments. It is the standard power supply for multi-bay common DCS cabinets, large multi-drive common DC bus control rooms and offshore wind farm 800xA control panels.
QA & Testing SOP (Transparency Building)
- Incoming Visual Inspection: Cross-check full part number 3BSC610067R1 and serial number against ABB official DCS spare parts database to reject counterfeit mismatched PSUs; inspect front LED indicators, AC/DC input terminal blocks, internal switching power circuits and conformal coating for burn marks, discoloration or mechanical deformation; record serial numbers and production batches for full traceability.
- Full Load Parallel Linkage Bench Test: Mount on standard DIN rail test bench, supply variable AC/DC primary input power, connect simulated full-load 480 W DCS load bank; run 24-hour cyclic testing including single-unit full-load operation, multi-unit parallel load-sharing verification, mains dropout hold-up simulation, overcurrent/overtemperature fault trigger and auto-recovery function, confirm stable 24V output voltage without ripple distortion under all input voltage conditions.
- Electrical Insulation Test: Use insulation resistance tester to confirm isolation resistance ≥ 10 MΩ between primary high-voltage circuits and secondary 24V output rails; test chassis ground continuity resistance below 0.5 Ω.
- Hardware Record Backup: Record hardware version of the unit, photograph input/output terminal pin definitions and DIN rail mounting positioning rules for field wiring reference.
- Final QC Packaging: Wipe PSU housing with anti-static microfiber cloth, cover all mains and output terminal screw blocks with insulating dust caps, place the unit into independent ESD shielding bag, attach unified printed QC test tag with technician ID and full 24-hour full-load parallel test runtime timestamp, then pack into foam shockproof carton for long-distance industrial plant and power plant transportation.
Installation Pitfalls & 4-Step Replacement Guide
Common Installation Hazards
❗ Lethal Residual High-Voltage Capacitor Risk: After cutting off mains AC/DC input power, wait minimum 15 minutes for complete discharge of internal primary and secondary DC bus capacitors before disassembly to avoid fatal electric shock.❗ Parallel Wiring Mismatch Risk: Only identical units can be wired in parallel; mixing with SD833/SD831 will break load-sharing balance and cause permanent overheating damage. Parallel wiring must follow ABB official parallel pin sequence to prevent cross-circuit power backflow.❗ Mandatory PE Protective Earth Connection: is Class I safety equipment; missing PE ground wire invalidates insulation safety certification and creates electric shock hazards during internal circuit breakdown.❗ ESD PCB Damage Risk: Wear certified anti-static wrist strap during all disassembly and installation work; bare hand contact with internal switching chips and output regulation circuits permanently impairs voltage stabilization accuracy and parallel load-sharing logic.❗ Overload Load Calculation Error: Total connected DCS load must not exceed 480 W per single unit; excessive load current will activate persistent overload protection and cut off all 24V control power, leading to full process control outage.
4-Step PSU Replacement Guide
- Pre-install Preparation: Perform full lockout/tagout on the cabinet AC/DC primary input power supply feeding the unit, wait 15+ minutes for DC bus capacitor complete discharge, wear ESD wrist strap, photograph primary input wiring sequences and 24 VDC output load terminal wiring connected to DCS rack power distribution blocks.
- Removal Operation: Loosen all primary input and secondary output terminal wire screws one by one following photographed records, release the DIN rail mounting clip, detach the old power supply unit from the cabinet DIN rail.
- Installation & Wiring: Clip the new (3BSC610067R1) module onto the original DIN rail, replicate primary AC/DC input polarity and 24 VDC output load wiring strictly following photographed sequences; install SS823/SS832 voting modules for redundant power layouts, apply correct parallel wiring if multi-unit parallel expansion is required, tighten all terminal screws to ABB specified torque values.
- Power-on Commissioning Test: Restore cabinet primary control power, observe front green OK LED light steady on; measure output terminal voltage to confirm stable 24 VDC without fluctuation; connect full DCS CPU, I/O and fieldbus load, run continuous no-load test for 1 hour, verify normal parallel load-sharing function, simulate single PSU power loss in redundant setup to confirm bumpless power switchover without DCS communication dropout, check no persistent overload/overtemperature fault alarms on DCS/SCADA system.
FAQ
Q: What is the core difference between SD831, SD833 and ?
- SD831: Low-power variant, 3 A / 72 W output, only for small single-rack DCS with limited S800 I/O cards; no parallel function.
- SD833: Medium-power standard model, 10 A / 240 W output, the most widely used for conventional single-rack 800xA systems; no parallel capability.
- : High-power heavy-load variant, 20 A / 480 W output, exclusive support for multi-unit parallel load-sharing, mandatory for large multi-rack DCS cabinets with dozens of CPU, I/O and fieldbus modules.All three series share identical DIN rail mounting form factor and protection logic but cannot be cross-replaced without recalculating total cabinet power consumption.
Q: Can be hot-swapped with the cabinet primary power energized?Strictly prohibited. The PSU directly connects to live high-voltage AC/DC primary circuits and internal charged bus capacitors; disassembly under energized conditions will cause severe arc flash accidents and permanent damage to internal switching semiconductors. Full primary power lockout and capacitor discharge are mandatory before replacement.
Q: What warranty applies to stocked 3BSC610067R1 units?Factory-new original power supplies carry a 12-month official ABB manufacturer warranty covering AC-DC conversion circuits, parallel load-sharing logic, output regulation loops and PCB substrates. Bench-tested surplus modules provide a 6-month functional warranty; damage caused by residual high voltage shock, PE ground disconnection, power polarity reversal or ungrounded ESD handling voids all warranty terms.
Q: Has ABB discontinued production?No formal EOL notice issued; remains standard supply for new large-scale 800xA multi-rack DCS projects and legacy power plant cabinet renovation. New compact edge automation control systems adopt smaller low-power SD831 variants for light-load layouts.
Q: What typical faults indicate a defective unit?Common failure symptoms: Persistent overload fault LED alarm under normal load without excessive DCS power consumption, random DCS controller restarts under partial load operation, unstable fluctuating 24 VDC output voltage, failure of parallel load-sharing function when paired with identical units, PSU overheating during rated normal load, complete loss of 24V output power after primary power restoration, and hold-up time failure leading to immediate CPU reset during brief mains voltage dropouts.
