Product Core Brief

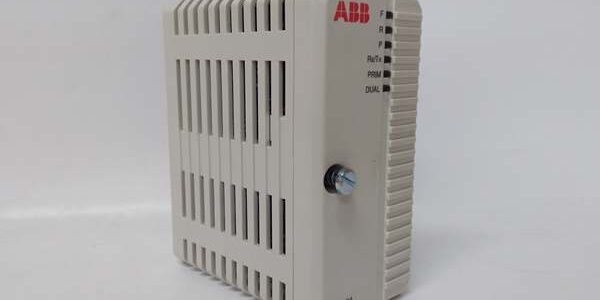

• Model: CI840A, OEM Article Code 3BSE041882R1
• Brand: ABB Control Systems
• Series: S800 Distributed I/O for AC800M / System 800xA DCS
• Core Function: High-performance PROFIBUS DP-V1 Fieldbus Communication Interface (FCI); single unit integrates two independent electrical ModuleBus masters, supports single/1+1 redundant Profibus architecture, implements OSP fail-safe logic, HCIR online I/O hot modification, HART signal routing and full channel diagnostic aggregation for S800 analog/digital I/O racksABB.
• Product Type: Rack-mounted FCI communication module, must pair with TU846 (redundant I/O dual ModuleBus) or TU847 (single ModuleBus non-redundant) termination base unitABB Group
• Key Specs: 1×DP-V1 Profibus port | Dual independent ModuleBus channels | Galvanic isolation between fieldbus and I/O side | Redundancy-capable with dual CI840A pairingNote: Active production OEM spare, new original surplus stock available; non hot-swap rated, delivers isolated limited power supply for downstream I/O cardsManualsLib.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, typical draw 180 mA, max power dissipation 4.3 W; internal isolated limited +5 V / 24 V feed for ModuleBus I/O clusters
• Fieldbus protocol: PROFIBUS DP-V0 cyclic real-time exchange + DP-V1 acyclic device parameter & diagnostic access, compliant IEC 61158 / EN 50170
• Supported baud rates: 9.6 kbit/s ~ 12 Mbit/s auto-detect or fixed software configuration
• Profibus physical interface: 9-pin D-SUB male RS485, integrated slide switch bus termination resistor
• ModuleBus resource: Two fully independent electrical ModuleBus masters
  • TU847 base: Activate only 1 ModuleBus, max 8 I/O slots per bus
  • TU846 redundant base: Enable dual ModuleBus, each drives up to 8 I/O card slots, total 16 I/O slots per stationManualsLib
• Galvanic isolation: 500 VAC 1-minute dielectric separation between Profibus field circuit and dual ModuleBus internal logic
• Core standard supported functions
  1. HCIR (Hot Configuration In Run): Add/remove I/O modules online without full DCS process stop
  2. OSP (Output Safe Position): Predefined analog/digital fail-safe state triggered on Profibus loss or ModuleBus fault
  3. HART pass-through: Bidirectional routing for AI815 / AO815 HART smart I/O modules, read secondary variables and device faults
  4. Full per-channel diagnostics: Wire-break, short-circuit, supply undervoltage, over-range/under-range alarm aggregation
  5. Redundant communication: Two paired on one TU846 base for 1+1 Profibus media redundancy, automatic fault switchover
• PCB coating: ISA-S71.04 G3 industrial conformal coating for mild corrosive power, pulp and chemical plant cabinet atmospheresABB
• Status indicators: Multi-color front LEDs: PWR, RUN, MODULE FAULT, PROFIBUS COM, ModuleBus 1 / ModuleBus 2 status
• Mechanical form: Slide-in card for TU846 / TU847 DIN rail termination base, IP20 protection rating
• Operating ambient: 0 °C ~ +55 °C continuous duty; vertical compact rack limited to 0 ~ +40 °C
• Storage range: -40 °C ~ +70 °C, non-condensing 5–95 % relative humidity
• Hazardous certifications: ATEX II 3G Ex nA IIC T4 Gc Zone 2, cULus Class I Div 2 Groups A-Deero
• Physical dimensions: 54 mm W × 119 mm H × 96 mm D; net weight 0.20 kgABB Group

Product Introduction

is the high-end Profibus DP-V1 gateway for S800 distributed I/O in System 800xA DCS platforms, designed to replace basic CI801 with dual ModuleBus expansion capability and full redundancy supportABB. It acts as a Profibus DP slave to AC800M CPU DP master port, while operating dual independent local masters to scan two separate S800 I/O card clusters simultaneously, doubling single-station I/O capacity compared to CI801.Galvanic isolation suppresses ground-loop EMI noise from remote field cabinets and variable frequency drives, eliminating intermittent I/O value freezing or bus dropouts on long Profibus trunk runs. Native HCIR avoids full process shutdown during I/O rack expansion or module replacement; integrated HART routing removes external multiplexers for smart valve/transmitter diagnostics, and dual-ModuleBus design cuts cabinet rack count for large-scale analog/digital I/O layouts. Paired two on TU846 termination base realizes full 1+1 redundant fieldbus communication for safety-critical process loopsManualsLib.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers and 3BSE part code against ABB S800 spare part databases. Inspect D-SUB Profibus pin integrity, dual ModuleBus ribbon connector contacts, full LED bank functionality and intact factory anti-static packaging to filter counterfeit stock.
2. Live Testing: Install module on /TU847 test base with AC800M PM865 Profibus master simulator. Run continuous 24-hour cyclic I/O scan testing across dual ModuleBus mixed AI/AO/DI/DO module groups while logging stable 24VDC supply with a Fluke 115 multimeter. Simulate Profibus trunk disconnection, single ModuleBus short-circuit and HCIR module hot-add to validate OSP fail-safe state, dual-bus independent operation and diagnostic flag timing; test redundant pair automatic switchover with dual setup.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between Profibus field circuit and dual ModuleBus internal logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no random I/O communication loss or cross-bus interference.
4. Firmware/Config Backup: Record factory default Profibus station address and dual ModuleBus scan parameters via Control Builder M engineering software. Capture high-resolution photos of D-SUB pinout, dual ModuleBus termination layout and / wiring for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust cap over front D-SUB Profibus connector, match supporting /TU847 base accessories. Place module inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Rev Mismatch Risk: AC800M controller firmware older than v5.3.0 lacks register mapping for dual ModuleBus independent scan and redundant Profibus failover logic. Post-replacement, the DCS will only recognize one bus segment and throw intermittent PROFIBUS COMM LOSS alarms. Remediation: Flash matching firmware revision to the AC800M CPU before installing on termination base.❗Non Hot-Swap Hardware Warning: has no official ABB hot-swap certification. Removing/inserting while rack 24 V auxiliary power remains live generates destructive voltage transients that crash both ModuleBus segments and corrupt controller process image tables. Full rack lockout/tagout of 24 V supply is mandatory for replacement.❗ModuleBus Termination Error Risk: TB807 terminator must be fitted only to the last I/O card slot on each independent ModuleBus daisy chain. Missing or duplicate termination creates signal reflection, persistent scan jitter and random channel fault flags.❗Redundancy Base Mismatch Risk: Dual redundant communication architecture requires dual-slot termination base; single base cannot support paired redundant bus failover function.❗Profibus Termination Misuse Risk: Front D-SUB slide termination switch only enabled for physical end node of Profibus trunk line; mid-station racks must disable internal terminator to avoid bus impedance mismatch and communication jitter.❗ESD Dangers: Ungrounded handling exposes Profibus transceiver and dual ModuleBus logic traces to static discharge from dry control room air. Field records show unprotected handling burns dual-bus communication circuits; full process unit downtime labor cost exceeds $1,510. Remediation: Place anti-static mat under DIN rail rack, wear grounded wrist strap, touch bare cabinet chassis ground for 3 seconds before handling module.

4-step replacement guide

1. Pre-install: Execute full lockout/tagout of S800 rack 24 V auxiliary power. Photograph Profibus trunk wiring, dual ModuleBus daisy-chain layout and station address configured in Control Builder M; set all safety-critical modulating valves to manual bypass position.
2. Removal: Unlatch / base retention clip, slide old upward out of base slot, disconnect D-SUB Profibus cable, dual ModuleBus ribbon cables and 24 V power terminal block, store unit in static-safe sleeve.
3. Install: Mount new fully into / base slot and lock retention latch; re-seat power connector, two ModuleBus ribbons and Profibus D-SUB cable, set front termination switch matching trunk topology and install TB807 terminator on final I/O slot of each bus chain.
4. Power-on Test: Restore 24 V auxiliary power first; verify front PWR, RUN and both ModuleBus LEDs illuminate steady green, perform full Profibus slave scan to confirm all dual-bus I/O channels communicate correctly, test HCIR module online add and redundant bus switchover (if dual setup) before enabling automatic closed-loop DCS control.

FAQ

Q: Can this FCI module be hot-swapped while the / base rack remains powered?A: No. carries no ABB hot-swap certification. Live extraction generates voltage transients that take both ModuleBus segments offline and can permanently damage downstream I/O communication circuits. Complete 24 V auxiliary power isolation is required for replacement.

Q: Does this communication module carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty follows standard component lifecycle coverage. All surplus inventory passes full in-house bench QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during validation testing.

Q: Can CI801 serve as a direct drop-in replacement for ?A: Mechanical rack fit only on single base. CI801 has only one ModuleBus master, no dual-bus capacity and does not support redundant base or 1+1 Profibus media failover. Swapping CI801 halves available I/O capacity and disables redundancy functions, requiring full I/O cluster rework and DCS tag mapping rewrite.

Q: What minimum CPU firmware version enables full dual ModuleBus and redundant Profibus failover support?A: controller firmware v5.3.0 or newer. Older firmware only initializes one ModuleBus channel and lacks redundant bus switchover register mapping, limiting station I/O capacity and removing fault tolerance.

Q: Will Profibus station address and dual ModuleBus scan configuration persist after module replacement?A: All bus configuration data resides in CPU non-volatile memory; no local parameter storage on hardware. No full reconfiguration required post-swap, only complete Profibus slave scan and dual-bus communication verification.

Q: Is the unit compatible with legacy Advant AC450 / MasterPiece DCS racks?A: No. uses ModuleBus + Profibus DP-V1 architecture exclusive to / 800xA; zero electrical and mechanical compatibility with Advant CEX bus CI54x series communication hardware.

Q: How many total I/O card slots can one support?A: Installed on dual base: two independent ModuleBus, max 8 slots each, total 16 I/O slots. Installed on single base: only one ModuleBus, max 8 I/O slots.
