Product Core Brief

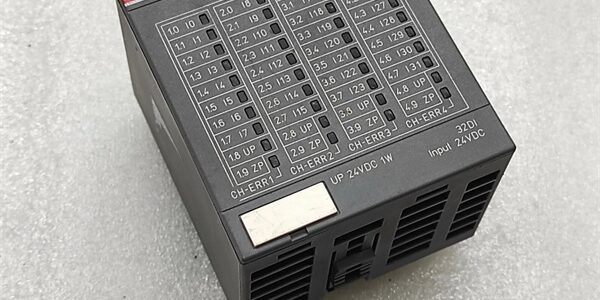

• Model: , S500 standard 32-point digital input module
• Brand: ABB
• Series: S500 modular I/O expansion platform for AC500 / AC500-XC PLC controllers
• Core Function: Read universal sink/source 24VDC discrete signals from limit switches, proximity sensors, pump/valve status dry contacts; software-configurable debounce suppresses mechanical contact bounce
• Product Type: Slide-in compact S500 I/O module, compatible with TB511 / TB512 / TB513 terminal base units
• Key Specs: 32 channels split into 4 isolated groups of 8 | Universal sink/source 24VDC input | 500VAC group-to-backplane isolation | 0.1–32ms adjustable debounce filterNote: Current mainstream S500 PLC I/O hardware, stocked inventory is New Surplus with factory sealed anti-static packaging.

Key Technical Specifications

• Module logic supply: Powered via S500 I/O backplane, typical draw 70mA
• Field input nominal voltage: 24VDC ±10%
• Signal threshold (EN 61131-2 Type 1):Logic 0: −3 V … +5 VUndefined: +5 V … +15 VLogic 1: +15 V … +30 V
• Input current per channel: 3.5mA typical @24VDC
• Input topology: Universal support for sinking or sourcing sensor wiring
• Channel grouping: Four electrically separated 8-channel banks
• Galvanic isolation: 500VAC dielectric separation between each group and backplane bus
• Debounce filter: Software adjustable 0.1ms to 32ms via Automation Builder
• Circuit protection: Per-channel reverse voltage blocking, EMC surge clamping, overvoltage withstand up to 30VDC continuous
• Diagnostics: Individual yellow LED channel status indicators, RUN power LED, group fault alarm LEDs
• Operating temperature: −25°C to +60°C full rated channel load
• Storage limits: −40°C to +70°C, 5%–95% RH non-condensing
• Physical dimensions: W67.5 × H76 × D62 mm; unit mass 0.11kg
• Mounting: TS35 DIN rail via matched TB51x screw terminal base
• Compliance: CE, UL, RoHS, IEC 61000-6-2 Class A industrial EMC
• System compatibility: AC500 / AC500-XC local rack or FBP remote I/O stations; incompatible with Mod300 S100, Symphony SD, Advant Master S400 legacy DCS platforms

Product Introduction

This high-density 32-channel digital input module expands PLC discrete signal capacity for factory automation and municipal process control racks. Four isolated channel groups limit fault propagation, so a shorted field sensor cable only disables 8 channels instead of the full 32-point bank.Universal sink/source compatibility eliminates separate ordering for different plant wiring standards, and wide-range software debounce filtering eliminates nuisance HMI alarms caused by aging mechanical limit switches. The module works seamlessly in both local main racks and remote FBP fieldbus I/O stations to extend PLC signal reach across large production lines.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB component trace databases; inspect rear edge connector pins for oxidation, front channel LED segment integrity, PCB conformal coating for peeling; verify factory static packaging seal remains intact for surplus stock.
2. Live Testing: Mate the unit to a TB511 terminal base on a DIN rail test bench paired with an PLC simulator and dry contact signal generators; run uninterrupted 24-hour cyclic channel state polling across all debounce timing settings; use a Fluke 115 to log steady 24VDC field supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between each 8-channel isolated group and backplane logic ground; pass threshold set at >10MΩ insulation resistance; inject reversed 24VDC field input faults to confirm hardware polarity lockout activates without damaging input optocoupler semiconductors.
4. Firmware/Config Backup: Record factory module interface firmware revision via Automation Builder engineering software; photograph TB51x terminal pin layouts and document factory default debounce values for field commissioning reference.
5. Final QC & Packaging: Torque all TB51x base terminal screw connections to OEM torque specifications; enclose the module in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗PLC Firmware Mismatch Risk: Outdated CPU firmware lacks calibrated debounce register and group isolation fault mapping for the module. Fault outcome: Unfiltered contact bounce generating false discrete status alarms, delayed interlock logic response during production transients. Mitigation: Flash matching validated firmware revisions to the CPU before rack power-up; archive compatible firmware files to plant engineering servers.❗Overvoltage Field Signal Risk: Connecting 48VDC sensor circuits to the 30VDC maximum rated input terminals burns internal optocoupler components permanently. Fault outcome: Complete loss of affected 8-channel group with no recoverable operation. Mitigation: Measure all discrete circuit voltage levels via multimeter before terminating wiring to the TB51x base terminals.❗Terminal Base Incompatibility Risk: Attempting to mount the module to non-TB51x series base units creates misaligned edge connector pinouts and unregulated supply exposure. Fault outcome: Burned input circuit semiconductors, permanent module failure. Mitigation: Only deploy the unit paired with OEM TB511, TB512 or TB513 terminal base assemblies.❗Shared Common Ground Wiring Error: Jumping negative return lines across separate isolated 8-channel groups breaks group galvanic separation performance. Fault outcome: Cross-group signal bleed creating fluttering open/closed sensor status readings during motor contactor switching transients. Mitigation: Maintain isolated negative return wiring for each individual 8-channel group per the TB terminal wiring schematic.❗ESD Dangers: Low-humidity packaging plant control room air generates static charge that damages delicate input optocoupler ICs on the PCB. Field service logs show ungrounded handling creates intermittent flickering discrete status faults that require multiple diagnostic shifts to isolate. Mitigation: Establish direct contact with bare cabinet chassis ground metal for three full seconds before touching module edge connectors or base terminal blocks.

4-Step Replacement Guide

1. Pre-install: Set the PLC to manual hold mode to freeze all discrete interlock logic values; photograph all limit switch and valve feedback wiring assignments on the TB51x terminal base assembly, and record current debounce filter parameter settings in Automation Builder.
2. Removal: Slide the module straight upward out of the TB51x base without bending edge connector pins; leave all field wiring terminated to the base to eliminate full retermination labor.
3. Install: Align the new unit’s rear edge connector with the TB51x base slot and slide fully seated until the module retention tab locks into place; replicate debounce timing and group fault monitoring parameter configurations within Automation Builder to match original process requirements.
4. Power-on Test: Energize 24VDC field supply; toggle simulated open/closed contact signals to all 32 input channels via signal simulator, confirm consistent discrete state reporting with zero group fault flags accumulating during 30 minutes of idle channel polling before restoring live production control logic.

FAQ (Frequently Asked Questions)

Q: Can this unit directly replace DI524 input hardware without full control logic rework?A: DI524 integrates dual high-speed counter channels while is standard general-purpose discrete input with no pulse counting capability. Direct physical swap is mechanically compatible, but you must remove all counter logic and re-index point addresses in Automation Builder.Q: Does this module support hot-swapping while the TB terminal base remains energized?A: Hot-swap is rated and supported for the I/O platform, but manual hold mode must still be enabled on the PLC to prevent unplanned production interlock trips during the swap window. Hot-swap only protects internal module semiconductors from power transients.Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from overvoltage field inputs, ungrounded ESD handling, incompatible TB terminal bases, or sustained channel wiring short-circuits is excluded from warranty claims.Q: If a single channel inside an 8-channel group fails, can individual optocoupler components be repaired on-site?A: Field repair of damaged input circuits is not recommended for critical production interlock systems. Repaired PCB trace paths degrade group isolation performance and raise risk of false safety trip events; full module swap is the standard site maintenance procedure.Q: Can multiple units share a single 24VDC field power circuit in one rack?A: Multiple units may share one 24VDC supply only if the supply unit maintains 20% extra current headroom above total combined module power draw. Independent auxiliary feed wiring is recommended for racks with six or more installed digital input modules to eliminate voltage sag during simultaneous channel polling events.Q: Is this digital input module rated for Class 1 Div 2 hazardous cabinet deployment inside refinery pump MCC rooms?A: No, the open slide-in module + TB base design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated I/O enclosures are required for hazardous area process installations.Q: What long-term upgrade path exists as this component reaches end-of-life support?A: remains the standard 32-point general-purpose input module for all new deployments. For distributed multi-cabinet systems, ABB recommends remote FBP I/O stations populated with to expand PLC signal capacity without expanding main control rack footprint.
