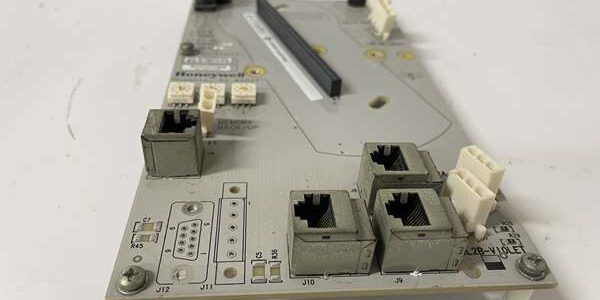

Product Core Brief

• Model: 51304485-100
• Brand: Honeywell
• Series: TDC3000 / TotalPlant Solution (TPS) legacy LCN distributed control discrete input hardware
• Core Function: Capture 24VDC dry contact and digital sensor feedback for safety interlocks, valve status, and pump run confirmation
• Product Type: Full-size LCN rack slide-in digital input printed circuit board, paired with dedicated FTA wiring assemblies
• Key Specs: 16 galvanically isolated DC input channels | 0–32VDC field signal range | Software configurable debounce timingNote: Discontinued legacy component, stocked inventory is New Surplus with unbroken factory anti-static packaging.

Key Technical Specifications

• Rack auxiliary operating supply: 24VDC ±10% logic power feed
• Channel quantity: 16 independent optically isolated discrete sensing points
• Acceptable field input voltage: 0–32VDC sinking dry contact signals
• Input debounce options: Multiple software-selectable filter intervals to suppress mechanical contact bounce
• Dielectric isolation rating: 500VAC separation between each field channel and LCN backplane logic
• Onboard protection: Per-channel reverse voltage blocking, EMC transient surge clamping
• Continuous operating temperature: -20°C to +55°C full channel load; linear performance derate above 55°C
• Storage environmental limits: -40°C to +70°C, 5%–95% RH non-condensing
• Physical form factor: Standard TDC3000 LCN rack slide-in card, conformal coated PCB
• Unit mass: 0.65kg
• Compliance certifications: CE, UL, RoHS, IEC 61000-6-2 Class A industrial EMC
• System compatibility: Honeywell TDC3000, TPS LCN DCS racks; incompatible with Experion C300, HC900 PLC, third-party DCS platforms

Product Introduction

This high-density discrete input card reads on/off field switch signals for legacy Honeywell LCN DCS systems. Independent optical isolation prevents single field wiring shorts from corrupting readings across all 16 sensing channels.Adjustable software debounce filters eliminate nuisance alarm floods caused by worn mechanical valve limit switches during continuous refinery and power generation process runs.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against Honeywell TDC legacy component trace databases; inspect backplane gold edge contacts for oxidation, front channel LED segment integrity, conformal coating for peeling; verify factory static packaging seal remains intact for surplus inventory.
2. Live Testing: Mount the unit to a TDC3000 LCN rack test bench paired with a digital signal simulator and contact load banks; run uninterrupted 24-hour cyclic channel state polling across all debounce filter settings; use a Fluke 115 to log stable 24VDC auxiliary supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between every field input channel and rack backplane logic ground; pass threshold set at >10MΩ insulation resistance; inject reversed DC field input voltage to confirm hardware polarity lockout activates without damaging input optocoupler semiconductors.
4. Firmware/Config Backup: Record factory card firmware revision via TDC Configuration Tool; photograph FTA terminal pin routing layouts to document standard field wiring assignments for site commissioning reference.
5. Final QC & Packaging: Torque all FTA terminal screw connections to OEM torque specifications; enclose the board in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Mismatch Risk: Outdated TDC/TPS system control firmware lacks calibrated input debounce register profiles for the module. Fault outcome: Unfiltered contact bounce generates spurious interlock alarm events in the DCS HMI. Mitigation: Flash matching validated firmware revisions to the LCN process manager before rack power-up; archive compatible firmware files to plant engineering servers.❗Field Voltage Overrange Risk: Connecting 48VDC field contact circuits to the card’s 0–32VDC rated channels triggers permanent optocoupler burnout. Fault outcome: Complete loss of affected sensing channel with no recoverable operation. Mitigation: Verify all field discrete circuit voltage levels via multimeter before terminating wiring to the FTA assembly.❗Platform Incompatibility Risk: Attempting to install the board into Experion C300 or HC900 racks creates mismatched backplane pinouts and unregulated supply exposure. Fault outcome: Burned internal backplane interface circuits, total card failure. Mitigation: Only deploy the unit inside dedicated TDC3000 / TPS LCN control racks paired with matching legacy FTA wiring terminals.❗Shared Common Ground Wiring Error: Jumping negative return lines across multiple isolated input channels breaks galvanic separation. Fault outcome: Cross-channel signal bleed creates false open/closed state readings across adjacent sensing points. Mitigation: Maintain fully isolated negative return wiring for each individual field contact loop per TDC wiring schematics.❗ESD Dangers: Low-humidity refinery control room air generates static charge that damages delicate optocoupler input circuits on the PCB. Field records show ungrounded handling creates intermittent fluttering discrete status faults that require 7–14 hours of diagnostic labor to isolate. Mitigation: Establish direct contact with bare cabinet chassis ground metal for three full seconds before touching backplane edge fingers or FTA terminal blocks.

4-Step Replacement Guide

1. Pre-install: Lock out all rack auxiliary 24VDC power; photograph all field contact wiring terminal assignments on the matched FTA assembly and record current software filter debounce settings for the faulty hardware.
2. Removal: Disconnect every FTA field wiring harness one channel at a time and label conductors; release the LCN rack slide retention latch and extract the faulty board straight outward without scraping PCB components against cabinet metal framing.
3. Install: Slide the new unit evenly into the TDC rack slot and engage the retention latch; replicate every photographed FTA terminal wiring connection to match channel numbering exactly, then re-enter the original input filter debounce values within the TDC configuration software.
4. Power-on Test: Restore 24VDC auxiliary rack power (main process field equipment stays offline for initial validation); toggle simulated open/closed contact signals to all 16 channels and confirm consistent, bounce-free discrete state reporting with zero transient fault flags accumulating during 30 minutes of idle channel polling before restoring live plant interlock logic.

FAQ (Frequently Asked Questions)

Q: Can this unit directly replace the 8-channel 51304453-100 digital input card without full DCS point rework?A: No, this unit provides double the channel count with a different FTA terminal pin layout. Cross swap requires full retermination of all field contact wiring and re-indexing all discrete point addresses in the TDC database.Q: Does the hardware support hot-swapping while the TDC LCN rack remains energized?A: Hot-swap operation is not OEM-rated or approved. Removing the unit under live power creates unfiltered input transients that trigger unplanned safety interlock trips and risk grid process disruption. Full auxiliary rack power shutdown is mandatory for all card swaps.Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from overrange field voltage inputs, ESD mishandling, cross-platform rack installation, or sustained channel wiring short-circuits is excluded from warranty claims.Q: If a single optocoupler channel fails, can individual channel components be repaired on-site?A: Field repair of damaged internal optocoupler circuits is not recommended for critical refinery and power plant interlock systems. Repaired trace paths degrade input isolation performance and raise risk of unplanned safety trip events; full card swap is the standard site maintenance procedure.Q: Can multiple units share a single 24VDC auxiliary power circuit in one TDC LCN rack?A: Multiple units may share one 24VDC supply only if the supply unit maintains 20% extra current headroom above total combined card power draw. Separate auxiliary feed wiring is recommended for racks with five or more installed discrete input cards to eliminate voltage sag during simultaneous contact state polling cycles.Q: Is this digital input PCB rated for Class 1 Div 2 hazardous cabinet deployment inside gas turbine MCC rooms?A: No, the open slide-in PCB rack design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated discrete I/O enclosures are required for hazardous area process plant installations.Q: What long-term hardware upgrade path exists as this component reaches Honeywell end-of-support status?A: Modern Experion PKS C300 systems use CC-PAIX01 and CC-DOIL01 discrete I/O modules for new cabinet builds. Full TDC/TPS rack migration, FTA wiring rework, and complete DCS point database reconfiguration are required for a direct functional retrofit.
