Product Core Brief
- Model: (full part example: 204-C10000AA)
- Brand: WATLOW Anafaze
- Series: CLS200 Compact Loop System multi-loop thermal controller family
- Core Function: Run 4 independent PID heating/cooling regulation loops, store batch ramp/soak recipes, exchange thermal setpoint and fault data via RS232/RS485 Modbus RTU for small furnaces, mold heating and lab thermal processing lines.
- Product Type: 1/8 DIN panel mount multi-loop temperature controller with 32-character vacuum fluorescent display, 8 membrane navigation keys, rear TB18 screw terminal or 50-pin SCSI terminal board options.
- Key Specs: 4 fully independent PID control loops | 0.167 s fast loop scan rate | 8 stored batch recipes | Universal thermocouple/RTD/4–20mA analog input | RS232 local setup + RS485 multi-drop Modbus | Condition: Refurbished Load-Tested Surplus; ⚠️ EOL — manufacturer discontinued production
- Series breakdown: = 4-loop; CLS208 = 8-loop; CLS216 = 16-loop high-density variant, all share identical panel cutout size.
Product Introduction
The WATLOW integrates four separate single-loop thermal regulators into one compact 1/8 DIN panel cutout, processing universal temperature sensor signals to drive SSR or relay outputs for low-zone batch thermal equipment. It cuts cabinet wiring and panel space overhead compared to four discrete single-loop controllers.This unit differentiates from larger CLS208 / CLS216 siblings by delivering the fastest loop scan speed (6 samples per second) for fast-response small thermal chambers, while retaining full ramp/soak sequencing and Modbus communication functionality. OEM field logging places its rated MTBF at 46,000 operating hours under continuous 24/7 thermal cycling at 40 °C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Panel Form Factor | Standard 1/8 DIN panel cutout |
| Supported Independent Control Loops | 4 heating/cooling PID loops |
| Loop Scan Update Rate | 0.167 seconds (6 samples per second, fastest CLS200 series) |
| Internal Measurement Resolution | 14-bit conversion (0.006 % full span accuracy) |
| Supported Sensor Inputs | All standard thermocouple types; 2/3-wire Pt100 RTD; 4–20 mA / 0–10 V linear analog |
| Configurable Control Outputs | SSR logic drive, mechanical relay, 4–20 mA analog retransmit; max 10 outputs with TB18 terminal board |
| Non-Volatile Recipe Memory | 8 unique ramp/soak batch profiles stored in EPROM |
| Serial Communication Ports | RS232 (local PC setup); RS485 multi-drop Modbus RTU (remote SCADA/PLC) |
| Front User Interface | 32-character vacuum fluorescent display + 8 tactile membrane navigation keys |
| Auxiliary Operating Supply | 100–240 V AC universal mains input, 35 VA steady-state draw |
| Continuous Operating Ambient Temp | -20 °C to +70 °C full rated accuracy; linear performance derate above +70 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH |
| Built-In Diagnostic Logic | Open/short sensor fault detection, loop deviation high/low alarm, heater load failure monitoring |
| Compliance Certifications | UL, C-UL, CE, EN61000 Class A industrial EMC filtering |
| Net Unit Weight | 490 g; rear panel depth behind cutout 92 mm |
Quality Control Process (Engineer’s Perspective)

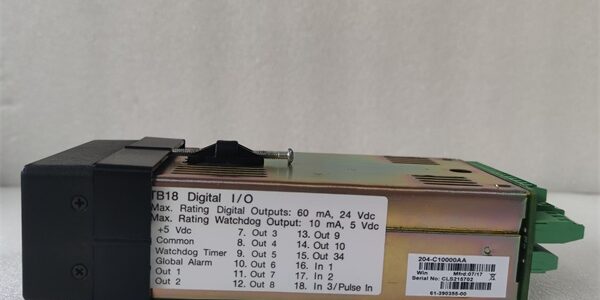

- Incoming Verification: Cross-reference serial number against Watlow Anafaze OEM CLS200 part databases; inspect front VFD display for dead segments, membrane keys for sticking, rear TB18 screw terminals or SCSI connector pins for oxidation. Photograph rear terminal wiring pinout for field panel installation reference.
- Live Functional Test: Mount controller to test panel paired with 4-channel thermocouple simulator and SSR load banks; run 24 hour cyclic ramp/soak recipe profiles across all four loops simultaneously. Use a Fluke 115 signal logger to track loop temperature stability and Modbus data transfer consistency.
- Electrical Parameter Test: 500 V Megger insulation test between sensor input circuits and chassis ground (pass threshold >10 MΩ); verify relay output short-circuit protection triggers at 120 % rated contact load without PCB trace damage.
- Recipe & Communications Verification: Write and read back all 8 batch recipe profiles to validate EPROM memory retention; establish multi-drop Modbus RS485 handshake with industrial SCADA PC, retain full 4-loop configuration tables over a 12 hour mains power-off cycle.
- Final QC & Packaging: Clean rear terminal contacts during refurbishment cycles to remove surface oxidation; fit plastic protective dust cap over front keypad/display, seal unit in anti-static PE foam bag, apply dated QC Pass label listing loop linearity, recipe memory retention, and Modbus throughput test metrics before rigid shock-resistant carton shipping.
Replacement Pitfall Guide
❗ Photograph original recipe ramp/soak parameter values before controller power-down and extraction from the panel cutout.❗ ❗ Modbus RS485 Bus Termination Misconfiguration Risk: Missing or duplicate 120 Ω termination resistors on multi-drop Modbus networks create signal reflection noise that drops remote recipe uploads. Only enable termination at the two physical end points of the RS485 trunk cable.❗ Panel Enclosure Condensation Short-Circuit Risk: Cold-stored controllers moved into warm humid production enclosures form PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before applying 100–240 V AC mains supply to prevent VFD display driver chip corrosion and intermittent loop dropout.❗ ESD Sensor Input Circuit Damage: Onboard analog signal op-amp circuits carry low electrostatic discharge tolerance. Always rest the unit on a grounded anti-static mat during rear terminal wiring or cable disconnection, especially in low-humidity cleanroom manufacturing environments.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- CLS208 8-loop mid-size thermal controller → WATLOW : Needs Adaptation — reduce Modbus tag mapping to only 4 active thermal loops, disable unused internal loop logic inside controller firmware
- VM310 24 V cabinet auxiliary power supply → WATLOW : Direct — 24 V DC auxiliary rail can power controller via optional external DC supply jumper setting
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → WATLOW : Direct — Modbus RTU bus enables bidirectional thermal setpoint and fault data exchange between motion CPU and 4-loop thermal controller
- SE311 Rexroth tightening control Eurocard → WATLOW : Direct — controller digital alarm relay contacts wire directly to SE311 24 V digital input channels for thermal fault production interlock logic
