Product Core Brief

• Model: .3CEN-256NN-MAD-128-NN-FW, OEM part number R911170850-GE1
• Brand: Bosch Rexroth Indramat (IndraControl V series embedded HMI)
• Series: .3 front-mounted industrial touch operator panel family
• Core Function: Run WinStudio visualization, IndraLogic PLC logic, and VisualMotion motion diagnostics; exchange setpoints/alarm data with PPC-R22 motion controllers via Ethernet, process analog/discrete machine I/O through MAD expansion slot
• Product Type: Panel-mount embedded touch HMI, CEN = color touch screen, 256 = 256MB system RAM, MAD populated analog/digital I/O expansion slot, 128 = 128MB onboard CompactFlash storage, NN empty secondary expansion slot, FW factory preloaded Windows CE firmware
• Key Specs: Windows CE .NET 4.2 OS | 256MB SDRAM / 128MB CF storage | Resistive color touchscreen | 10/100 Ethernet, dual USB, RS232 service | MAD I/O expansion slot | 24VDC cabinet supply, front IP65 protection
• Note: OEM discontinued new production; calibrated refurbished surplus units available. Matches PPC-R22 RECO rack motion control systems for machine tools and semiconductor substrate handling lines.

Key Technical Specifications

• Operating System: Windows CE .NET 4.2 Pro Plus, factory pre-flashed firmware (FW suffix)
• Processor: Intel x86 embedded real-time CPU, minimum 300MHz clock speed
• Memory Allocation:
  • System RAM: 256MB (256 suffix code)
  • Onboard program CompactFlash: 128MB (128 suffix)
  • 512kB lithium-backed UPS SRAM for recipe/parameter power-fail backup
• Display & Touch: CEN = color resistive touch screen, standard SVGA/XGA resolution, analog resistive touch for industrial vibration environments
• Expansion Slot Definition (suffix breakdown):
  • MAD: Populated mixed analog/digital I/O expansion slot for machine limit/pressure transducer signals
  • NN: Second expansion slot unpopulated (no PROFIBUS-DP master card fitted)

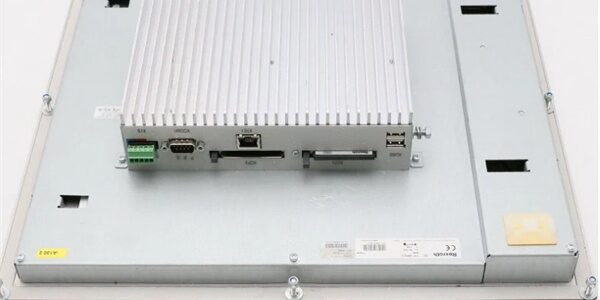

• Standard Interfaces:
  • 10/100BASE-TX Ethernet RJ45 for motion controller/PLC communication
  • Dual USB 1.1 host ports for flash storage, keyboard/mouse peripherals
  • RS232 D-Sub service port for WinStudio commissioning
  • PS/2 peripheral header, VGA secondary display output
• Power Input: 19.2–30VDC unregulated 24VDC cabinet rail, max 1.5A steady power draw
• Mechanical & Protection:
  • Front panel IP65 dust/water splash rating; rear cabinet side IP40
  • Panel cutout mounting form factor, aluminum die-cast housing
• Operating Ambient: +5°C ~ +45°C continuous cabinet runtime; non-condensing humidity 5–95%
• Compliance Standards: CE, UL, SEMI S2, EN61000 industrial EMC noise immunity certified
• Compatible Control Platforms: PPC-R22 series RECO rack motion CPUs, VT-HNC hydraulic axis controllers, DIAX04 servo drive stacks

Product Introduction

This front-panel embedded touch HMI acts as unified machine operator interface for Rexroth motion and hydraulic control systems. It hosts full visualization, recipe storage, fault diagnostic trending and soft PLC logic without separate external industrial PC hardware.The MAD expansion slot eliminates external signal conditioners for machine analog pressure and discrete limit switch inputs, while 256MB RAM + 128MB CF memory supports complex multi-axis motion programs and long-term production alarm logging. Windows CE lightweight architecture delivers fast boot times and deterministic communication with PPC-R22 SERCOS motion controllers via Ethernet TCP/IP.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial number against Rexroth R911170850 OEM vital product databases; visual scan for scratched touchscreen glass, cracked front bezel, swollen lithium backup battery, corroded RJ45/USB connectors. All expansion slot and wiring pin assignments photographed pre-test.
2. Live Bench Testing: Mount unit to standard machine panel cutout fixture, establish Ethernet link to PPC-R22 motion controller simulator; run continuous 24-hour cyclic visualization, recipe upload/download and touchscreen touch-response cycling matching production machine operation profiles. Fluke signal calibrator verifies MAD slot analog input linearity and digital I/O switching timing.
3. Storage & Memory Validation: Upload full WinStudio visualization project libraries to validate 128MB CF read/write integrity; retain UPS SRAM recipe data over 12-hour full power-off cycles to confirm lithium backup battery retention performance.
4. Communication Functional Trim: Stabilize 100Mbps Ethernet throughput under continuous motion diagnostic data streaming; validate RS232 WinStudio project upload/download without packet loss.
5. Final QC & Packaging: Replace degraded lithium UPS backup battery during refurbishment cycles; cap unused USB/RJ45 ports with OEM dust plugs, wrap unit in static-dissipative foam, affix printed QC tag listing touchscreen linearity, Ethernet communication and MAD I/O test metrics before sealed anti-static bag packaging.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Expansion Slot Variant Mismatch Risk: MAD slot populated units cannot directly replace NN empty-slot .3 variants without reworking machine analog/digital wiring harnesses. Photograph original MAD slot transducer wiring layout before HMI removal to avoid signal misconnection post-swap.❗ Ethernet IP Address Conflict Risk: Multiple panels sharing one factory control Ethernet trunk require unique static IP addresses set via WinStudio project configuration. Duplicate IP assignments create complete motion controller communication loss and block recipe program download. Export full network address mapping from host pre-replacement.❗ Front Panel Seal Damage Hazard: Over-tightening mounting clamps cracks the IP65 front rubber gasket, allowing coolant, cleanroom particulate or humidity ingress that corrodes internal touchscreen drive PCB within 4,000 operating hours. Torque mounting fasteners strictly to OEM specified low torque value.❗ Cabinet Condensation Short-Circuit Risk: Cold-stored units transferred into warm humid production enclosures form internal PCB condensation within 2 hours. Allow minimum 4-hour temperature acclimation before applying 24VDC supply to prevent trace corrosion and permanent touchscreen ASIC damage.❗ Catastrophic ESD Damage Risk: Unshielded touchscreen controller IC and CF memory circuits sustain permanent leakage damage from ungrounded handling; certified ESD wrist strap and conductive anti-static mat mandatory before touching rear expansion slots or exposed connector pins.4-Step Replacement Guide:

1. Pre-install: Execute machine lockout-tagout, power down full control cabinet 24VDC supply, export all WinStudio visualization projects, production recipe libraries and Ethernet network configuration from the existing panel to offline PC via WinStudio software.
2. Removal: Disconnect Ethernet, USB, RS232 service and MAD slot analog/digital terminal cables one at a time; loosen panel mounting clamps evenly to avoid front bezel bending, pull unit forward out of cabinet cutout and rest on vibration-dampened ESD foam pad. Record all MAD slot transducer wire pin assignments.
3. Install: Insert replacement unit into matching cabinet panel cutout, torque mounting clamps to OEM low-torque spec to preserve IP65 front seal, re-terminate MAD I/O, Ethernet and peripheral wiring matching photographed layout, separate analog transducer cables and digital Ethernet trunking per EMC cabinet wiring rules.
4. Power-on Test: Restore cabinet 24VDC supply, confirm touchscreen backlight and Ethernet status LEDs illuminate steady green, upload saved WinStudio visualization project, run 30-minute continuous machine motion diagnostic trending cycle to validate stable communication with motion CPU and error-free MAD analog signal acquisition.

FAQ (Frequently Asked Questions)

Q: Can this MAD-slot .3 replace empty NN-slot .3 HMI variants on identical machine platforms without wiring rework?A: No out-of-box cross-compatibility. NN suffix units lack the MAD analog/digital I/O expansion hardware and terminal wiring; full transducer harness re-termination and visualization screen signal mapping edits are mandatory after swap.Q: Does this embedded HMI support hot-swapping while cabinet 24VDC supply and control Ethernet trunk remain energized?A: Rear expansion slot and power terminals lack staged hot-swap power pin sequencing. Live extraction injects voltage transients into MAD analog signal circuits, corrupting UPS SRAM stored production recipes and risking permanent touchscreen controller hardware damage. Full cabinet DC power lockout is required before cable disconnection.Q: What warranty separates original surplus stock from fully refurbished .3CEN-256NN- units?A: Unopened original Rexroth surplus carries a 12-month industrial warranty covering touchscreen drift, CF memory corruption and Ethernet communication failure. Refurbished calibrated units ship with a 6-month limited functional warranty; aged lithium UPS backup batteries and electrolytic input filter capacitors exhibit gradual performance degradation under continuous cabinet heat.Q: Will swapping this HMI erase stored production wafer/part recipes and transducer scaling values?A: All visualization screens, motion recipes and analog scaling tables reside in the unit’s onboard CompactFlash and UPS SRAM memory, independent of the motion controller. Export a complete project and recipe backup via WinStudio software before disassembly to avoid full HMI screen reconfiguration post-install.Q: Can this hardware operate with legacy WinStudio v6 commissioning software released prior to 2008 without firmware updates?A: Windows CE .NET 4.2 platform requires WinStudio v7 minimum software version; v6 builds lack device description files for the MAD expansion slot analog I/O hardware, leading to missing transducer trending screens and incomplete diagnostic visibility.Q: What expected service window applies to surplus versus refurbished HMIs in 24/7 high-volume semiconductor production environments?A: Original surplus units target scheduled lithium UPS battery and front gasket replacement at 43,000 operating hours. Refurbished variants degrade at 32,000 hours; reused electrolytic filter capacitors lose capacitance over time, widening MAD analog signal noise floor and triggering false pressure deviation alarms during wafer processing batches.Q: What core functional difference separates MAD populated and NN empty expansion suffixes on the same .3 base HMI?A: MAD suffix integrates a full analog/digital mixed I/O expansion card for direct machine transducer/limit switch connection; NN suffix leaves the secondary expansion slot empty with no onboard signal conditioning hardware, requiring separate external terminal blocks for all machine field I/O wiring.
