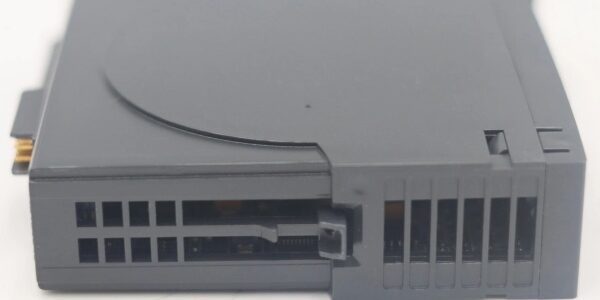

Product Core Brief

• Model: (DO8 standard terminal; D201129L = long extended terminal variant)
• Brand: Metso (Valmet Legacy Automation)
• Series: MasterPiece 2001 ACN CS Discrete Output I/O Family
• Core Function: Convert digital logic commands from the rack CPU into sourcing 24VDC drive signals to actuate solenoid valves, alarm beacons, and small auxiliary contactors for machine interlock sequences.
• Product Type: 3U Eurocard hot-swappable rack-mounted digital output module
• Key Specs: 8 isolated sourcing output channels | 1500VAC channel-to-backplane isolation | Per-channel 0.5A continuous current limit
• Condition: New Original (New Surplus); Fully Discontinued EOL, OEM factory production terminated.

Key Technical Specifications

• Channel count: 8 independent galvanically isolated sourcing digital output channels
• Output drive type: Sourcing 24VDC, supplies positive rail to field loads
• Continuous per-channel rating: 0.5A DC resistive load; max inrush 1A for inductive solenoids
• Isolation rating: 1500VAC photo-isolation per channel, IEC 61010 safety standard compliant
• Pulse timing range: 0ms to 500ms configurable pulse width via MasterTool software
• Backplane supply range: 18–36VDC nominal 24VDC, max 4.2W power draw at full channel load
• Fault protection: Per-channel ESD surge suppression, reverse polarity lockout, short-circuit auto cutoff (<6ms response)
• Hot-swap support: Live rack insertion without triggering rack-wide safe-state shutdown
• Operating ambient range: -20°C to +60°C cabinet; storage -40°C to +85°C
• Form factor: Standard 3U single-slot vertical Eurocard for MasterPiece 2001 control racks
• Physical dimensions: 305mm L × 235mm H × 68mm D; unit mass 0.60kg
• Front panel indicators: Individual LED per channel for active output state and channel fault alarms
• Safety compliance: CE, UL, RoHS, SIL2 functional safety certification for continuous pulp/paper process interlock loops

Product Introduction

Metso serves as the primary sourcing discrete output interface for MasterPiece 2001 DCS pulp and paper production racks, translating interlock logic commands from the D201925 CPU into 24VDC drive power for field solenoids and visual alarm hardware. It pairs with NPN-type discrete input hardware to build complete machine safety control circuits.

Its core differentiator is channel-independent fault containment paired with software-adjustable pulse timing. A shorted solenoid coil only disables its assigned channel; the rest of the unit’s outputs remain operational to avoid full line shutdown from a single field wiring fault.

Firmware/Software Versions & Upgrade Notes

• Supported MasterTool configuration software versions: v4.08 through v5.7; MasterTool v6.x removes native bus handshake compatibility with the module.
• Recommended onboard firmware revision: Rev 06; Rev 04 contains pulse width timing glitches that cause inconsistent solenoid actuation cycles.
• Upgrade risk warning: Downgrading the rack’s D201925 CPU firmware below v3.0.6 breaks bidirectional communication with this hardware. Match CPU and I/O firmware release families before rack commissioning.
• Firmware storage location: All channel pulse timing, fault alarm thresholds, and interlock mapping save to the D200175 PMM personality module; execute a full PMM backup before any firmware flash operation.
• OEM constraint: Metso halted official firmware download support for all D-series I/O hardware after 2022; validate local firmware archive files prior to site deployment.

Frequently Asked Questions

1. Is hot-swapping the module safe while the control rack stays powered?Hot-swap hardware circuits prevent full rack shutdown, but disconnect all field 24VDC wiring before extraction. Live field shorts during swap create backplane voltage transients that corrupt recipe and interlock tuning data stored on the PMM memory module. Always isolate field terminal blocks first.
2. Can I source a direct drop-in OEM replacement now that this hardware is EOL?Metso no longer manufactures the module, and modern Valmet DNA I/O cards use mismatched Eurocard footprints and proprietary bus protocols that block plug-and-play swaps. New Surplus unopened factory stock is the only direct replacement option; third-party refurbished units require full 24-hour load bench testing before site installation.
3. Will swapping this device erase programmed pulse timing or interlock alarm thresholds?No discrete output configuration data resides locally on the hardware. All pulse width values, channel mapping and safety interlock trigger limits are saved to the D200175 PMM personality module. Complete a PMM backup via MasterTool before any swap to guard against unexpected bus communication failures.
4. What warranty coverage comes with New Surplus inventory versus refurbished units?Our New Surplus stock carries a 12-month full functional warranty matching original OEM spare coverage. Refurbished aftermarket parts ship with only a 3–6 month limited warranty, as aged internal electrolytic capacitors and worn terminal contacts create unquantified risk of mid-run solenoid misfire faults.
5. Why is New Surplus priced higher than aftermarket refurbished equivalents?New Surplus inventory retains original factory component tolerances, zero operating hour wear, and full traceability to OEM production batches. Refurbished units reuse aged PCBs, generic replacement optocouplers, and skip full 24-hour thermal load testing; hidden internal defects lead to unplanned line downtime with far greater total operational cost than the upfront part price difference.
6. Does the hardware support inductive solenoid loads without external suppression?Internal per-channel surge suppression handles small inductive loads, but large solenoid coils near motor starters require external flyback diodes across the coil terminals. Unsuppressed inductive kickback degrades onboard optocoupler isolation over 6–12 months of continuous cycling.
7. What pulse width setting works best for paper machine air solenoid valves?Set pulse timing to 100–200ms for standard pneumatic solenoids to guarantee full valve stroke. Reduce pulse width to 20–50ms for fast-switching small bypass valves to cut compressed air waste. All timing parameters persist on the PMM module after module replacement.
