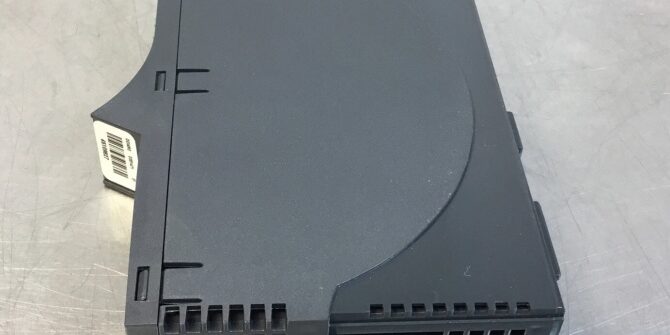

Product Core Brief
- Model: D201471 (Full designation: DOI4RO, standard revision Rev.05)
- Brand: Metso / Valmet Automation, legacy MasterPiece 2001 pulp & paper DCS platform
- Series: ACN CS MasterPiece 2001 discrete output I/O family
- Status: Fully discontinued EOL, only original new surplus / factory refurbished spare stock available
- Core Function: Convert D201925 main controller logic commands into isolated dry relay contact signals to drive field solenoid valves, motor starters, alarm beacons, lubrication pumps and safety interlock relays. Independent channel galvanic isolation eliminates ground loop noise; single-channel fuse protection limits fault scope without rack-wide shutdown.
- Product Type: 3U Eurocard hot-swappable rack-mounted 4-channel relay digital output I/O module
- Key Specs: 4 fully isolated Form A NO relay channels; dry contact rated 5A@250VAC / 5A@30VDC resistive load; per-channel independent fuse; hot-swap supported; compatible with D201925 CPU, D200175 PMM personality module, D201832 / D200136L rack power supply; Condition: New Original Surplus / Factory Refurbished
Product Introduction
The Metso (DOI4RO) is a standard discrete output card exclusively for Metso MasterPiece 2001 distributed control systems, widely applied in pulp, paper, tissue and board production lines for sequence and safety interlock control.Every channel adopts independent mechanical dry relay double isolation (photo isolation + relay isolation), completely separating low-voltage DCS backplane logic power and high-voltage AC/DC field load circuits, avoiding analog control loop interference (basis weight, tension, moisture loops). Each channel is equipped with an independent mini fuse; short-circuit or overload on one field load only trips the corresponding channel without crashing the main D201925 CPU or triggering full machine safe-stop.Hot-swap architecture allows single module replacement without full cabinet power cut, reducing production downtime during maintenance. OEM reliability testing records an MTBF of 95,000 operating hours under 40°C dusty pulp mill cabinet ambient. Different from transistor output cards, dry relay contacts support mixed AC/DC field loads without polarity restrictions.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Model ID | / DOI4RO Rev.05 4CH Relay Digital Output Module |
| Channel Quantity | 4 independent galvanically isolated relay output channels |
| Relay Contact Type | Form A Normally Open (NO) dry mechanical contact |
| Resistive Contact Rating | Max 5A @ 250 VAC; Max 5A @ 30 VDC |
| Backplane Supply | 18–36 VDC nominal 24VDC, powered by D201832 / D200136L rack power supply |
| Per-Channel Protection | Independent mini fuse, fast short-circuit auto cutoff |
| Isolation Dielectric Strength | 2500 VAC double isolation between backplane logic side and field load side |
| Hot-Swap Feature | Live rack insertion/removal, maintains process safe-state hold logic during replacement |
| Operating Ambient Temp | -20°C ~ +60°C cabinet installation; storage -40°C ~ +85°C |
| Integrated Protection Circuits | Per-channel overcurrent, short-circuit, ESD surge suppression, reverse polarity backplane protection |
| Form Factor | Standard 3U single-slot vertical Eurocard for MasterPiece 2001 control racks |
| Dimensions & Weight | 305 mm L × 235 mm H × 68 mm D; net weight approx. 0.62 kg |
| Front Panel Indicators | Independent LED per channel: Output ON status, Channel Fault (blown fuse / field short circuit) |
| Safety Certifications | CE, UL, RoHS, SIL2 functional safety certified for continuous pulp & paper process control |
| Mandatory Matching Hardware | D201925 ACN CS main CPU, D200175 PMM personality memory module, D201832 / D200136L rack power supply |
| Typical Field Loads | Pneumatic solenoid valves, alarm lamps/beacons, motor auxiliary contactors, lube pumps, safety interlock relays |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Match serial batch codes with original Metso factory production manifests to screen counterfeit aftermarket copies. Inspect backplane gold edge pins, front LED array, field terminal screw blocks and PCB solder joints for scratches, bending or deformation.
- Live Functional Test: Install into complete MasterPiece 2001 test rack (D201925 CPU + D200175 PMM + rack power). Connect AC/DC resistive loads to all 4 channels, run a 24-hour continuous soak cycle with cyclic relay on/off switching; record relay contact stability, fuse fault response and backplane communication stability hourly.
- Electrical Insulation Test: Use 500 V Megger insulation tester; pass threshold >10 MΩ between each channel and backplane ground. Verify <5ms fast per-channel short-circuit cutoff and overcurrent fuse blow protection.
- System Compatibility Verification: Load paper mill process personality logic via D200175 PMM; confirm CPU normally sends switching commands and reads channel fault status through Metso MasterTool configuration software. Photograph front panel LED alarm states as on-site commissioning reference.
- Final QC & Packaging: Place module into anti-static ESD foam packaging with plastic dust caps covering backplane and field terminal connectors. Attach dated QC Pass sticker including insulation resistance test data and total soak runtime before warehouse storage.
Replacement Pitfall Guide
❗ Relay Contact Overload Risk: Do not connect loads exceeding 5A resistive rating. Inductive loads (solenoids, motors) must install external flyback diodes or surge suppressors to eliminate contact arcing and premature relay burnout.❗ Hot-Swap Misoperation Risk: Disconnect heavy AC field load wiring before hot-swapping . Sudden load transients create backplane voltage dips that corrupt D200175 PMM flash memory storing production recipes and loop tuning parameters.❗ Field Wiring Ground Loop Risk: Isolate DCS logic ground and field AC load ground completely. Shared ground loops induce stray voltage, causing random relay chatter and false channel fault alarms.❗ Mismatched Fuse Replacement Risk: Only use OEM specified current rating mini fuses for replacement. Oversized fuses lose short-circuit isolation protection and risk PCB track burnout under field short conditions.❗ ESD Damage Risk: Exposed backplane edge connectors and field terminal pins are highly ESD sensitive during cabinet disassembly. Always use grounded anti-static wrist mats during module swapping in low-humidity workshops; static discharge damages onboard relay drive PCB and triggers uncommanded random relay switching faults.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- ACN CS Main Process Controller → : Direct Mandatory Match — Native backplane I/O bus pinout matching, zero cabinet mechanical modification
- PMM Personality Memory Module → : Indirect Compatible — stores sequence logic parameters governing relay output states
- D201832 / D200136L Rack Power Supply → : Native Power Match — Isolated low-noise 24VDC logic rail provides stable power for relay drive circuits
- MasterPiece 2001 Pulp/Paper Control Racks → : Native Platform Matched — Designed exclusively for MasterPiece 2001 Eurocard rack architecture
- Newer Valmet DNA / Advant 400 DCS Controllers → : Incompatible — Different rack form factor and I/O bus communication protocol, cannot intermix hardware
Benchmarks
- Relay switching response delay: ≤ 12ms from backplane command to contact closure
- Per-channel short-circuit protection response time: <5ms, isolates faulty load without affecting other 3 channels
- Standby idle power consumption: 7.2 W; full 4-channel simultaneous energized max power draw: 8.8 W
